Hover-1 H1 Battery Replacement

Geschrieben von: Aaron Teh
  • Kommentare: 3
Hover-1 H1 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

Replacing in the battery in your Hover-1 H1 hoverboard might help to solve charging problems.

  1. CnWFkk1BJPRa2Lio

    • Remove the ten 9mm machine screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

    • Remove the twelve 9mm sheet metal screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

  2. ZkCHDORttn6GSQOh

    • Puncture the two black stickers by using the tip of a screwdriver.

    • Remove the two 9mm machine screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

  3. VjDfPrZd2XnstwhP
    VjDfPrZd2XnstwhP
    FXuOfl4YUAdC46C3

    • Lift each side of the bottom shell by pulling up.

    • When lifting the shell, take care to not tear any cables from their connectors.

  4. WvblXP2vPSkx1HPx

    • Unplug the battery by pulling gently on both sides of the orange connector.

  5. BIQGpMxvEWUXjcc1

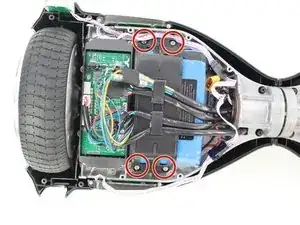

    • Remove the four 7mm screws by using a Phillips #2 screwdriver to rotate the screws counterclockwise.

  6. XUqvLVNLk2hrRwWG

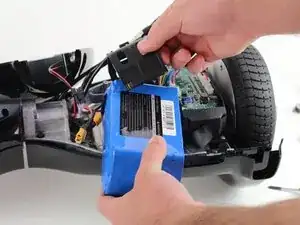

    • Gently lift the battery harness and remove the battery by lifting the battery and moving it away from the hoverboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
