Hover-1 H1 Bottom Shell Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide explains how to remove the bottom shell of your hoverboard, which will allow you to gain access to most of the device's internals.

  1. CnWFkk1BJPRa2Lio

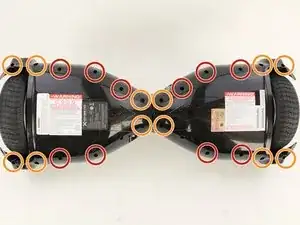

    • Remove the ten 9mm machine screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

    • Remove the twelve 9mm sheet metal screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

  2. ZkCHDORttn6GSQOh

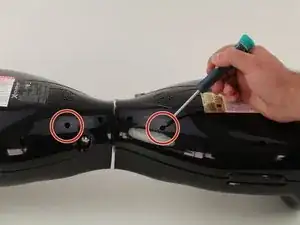

    • Puncture the two black stickers by using the tip of a screwdriver.

    • Remove the two 9mm machine screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

  3. VjDfPrZd2XnstwhP
    VjDfPrZd2XnstwhP
    FXuOfl4YUAdC46C3

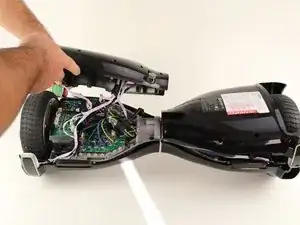

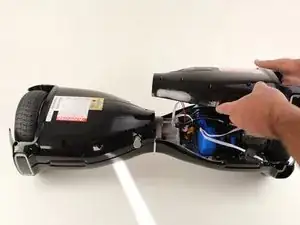

    • Lift each side of the bottom shell by pulling up.

    • When lifting the shell, take care to not tear any cables from their connectors.

  4. WvblXP2vPSkx1HPx

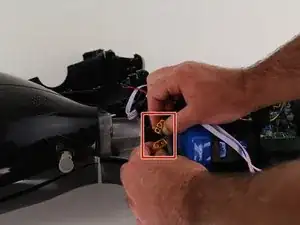

    • Unplug the battery by pulling gently on both sides of the orange connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
