Hover-1 H1 Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

Replacing the power button of your Hover-1 H1 hoverboard can help with problems involving turning on your device.

  1. CnWFkk1BJPRa2Lio

    • Remove the ten 9mm machine screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

    • Remove the twelve 9mm sheet metal screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

  2. ZkCHDORttn6GSQOh

    • Puncture the two black stickers by using the tip of a screwdriver.

    • Remove the two 9mm machine screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

  3. VjDfPrZd2XnstwhP
    VjDfPrZd2XnstwhP
    FXuOfl4YUAdC46C3

    • Lift each side of the bottom shell by pulling up.

    • When lifting the shell, take care to not tear any cables from their connectors.

  4. WvblXP2vPSkx1HPx

    • Unplug the battery by pulling gently on both sides of the orange connector.

  5. eqsV2sncOs2EdbOS

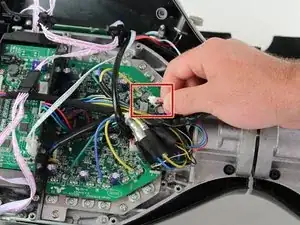

    • Unplug the power button connector by pinching the tab on the front and pulling directly upwards.

    • Pull the cable through the center section of the hoverboard.

    • For reassembly, you will have to feed the cable back through the center section. This can be done using a rigid wire or cable.

  6. BkKBgZlZ22oCBHYW
    BkKBgZlZ22oCBHYW
    WNBGUJeC31Nkoygi

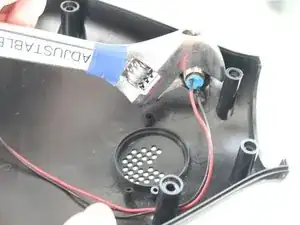

    • Using an adjustable wrench, remove the nut on the back of the power button by rotating the nut counterclockwise.

  7. GrVpONPQLxXrxbGF

    • Pull the power button through the hole in the shell.

Abschluss

To reassemble your device, follow these instructions in reverse order.
