Hover-1 H1 Shell Replacement

Geschrieben von: Sara Passantino
  • Kommentare: 0
Hover-1 H1 Shell Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

1 - 2 Stunden

Einleitung

This guide explains how to replace the shell of your Hover-1 H1 hoverboard.

  1. CnWFkk1BJPRa2Lio

    • Remove the ten 9mm machine screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

    • Remove the twelve 9mm sheet metal screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

  2. ZkCHDORttn6GSQOh

    • Puncture the two black stickers by using the tip of a screwdriver.

    • Remove the two 9mm machine screws by using a long Phillips #2 screwdriver to rotate the screws counterclockwise.

  3. VjDfPrZd2XnstwhP
    VjDfPrZd2XnstwhP
    FXuOfl4YUAdC46C3

    • Lift each side of the bottom shell by pulling up.

    • When lifting the shell, take care to not tear any cables from their connectors.

  4. WvblXP2vPSkx1HPx

    • Unplug the battery by pulling gently on both sides of the orange connector.

  5. BAWTUAfJXSSFLUuG

    • Unplug the lights from the battery by pulling gently on both sides of the black connector attached to the white wires.

  6. 3CpOLlXtncGHHQYq

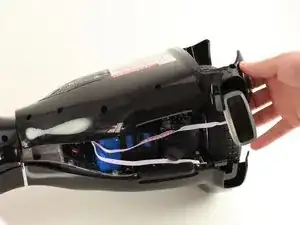

    • Remove the vertical light from the shell by using your hands to pull it free from the surrounding shell.

  7. UwaByEhEmYAZQ6un

    • Remove two 8mm screws using a Phillips #0 screwdriver to rotate the screws counterclockwise.

    • Remove the horizontal light by using your fingers to pull the light up out of the shell.

  8. HqNhtQOldSceluXy
    HqNhtQOldSceluXy
    uMnp3ldkGA1uRfsE

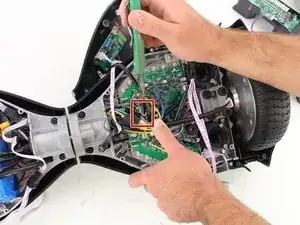

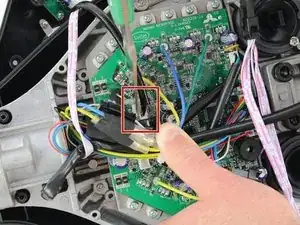

    • Using a utility knife, scratch off the hot glue from the connector attaching the red and black wires to the motherboard.

    • Be careful to not damage the wires or connector when removing the glue.

  9. YULTQQoNEe6PJP3h

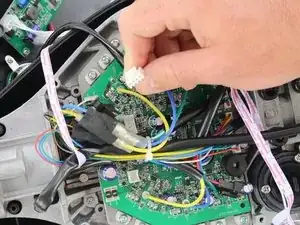

    • Remove the charging port connector from the motherboard by squeezing the connector and pulling the connector up.

  10. 1P3TkWEQ4QfNkeAM
    1P3TkWEQ4QfNkeAM
    DQJTOHpYfFKxW4X1

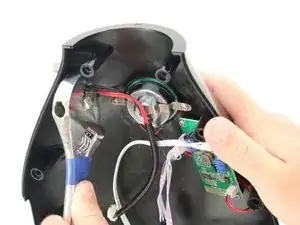

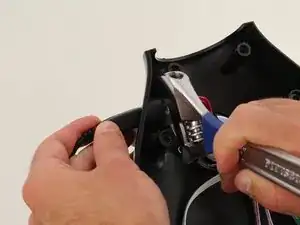

    • Using an adjustable wrench, unscrew the nut that is attaching the charging port to the bottom shell.

    • It might be helpful to put the charger in the charging port while unscrewing the nut to ensure that the port is not spinning.

  11. fOQkVw3ECfIPtGEU
    fOQkVw3ECfIPtGEU
    bC1DOXI1umWPNGmD

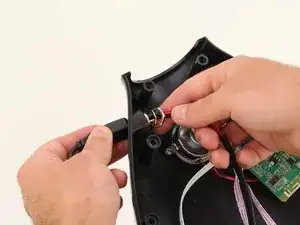

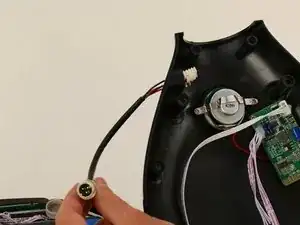

    • Pull the charging port to the left through the shell.

  12. eqsV2sncOs2EdbOS

    • Unplug the power button connector by pinching the tab on the front and pulling directly upwards.

    • Pull the cable through the center section of the hoverboard.

    • For reassembly, you will have to feed the cable back through the center section. This can be done using a rigid wire or cable.

  13. BkKBgZlZ22oCBHYW
    BkKBgZlZ22oCBHYW
    WNBGUJeC31Nkoygi

    • Using an adjustable wrench, remove the nut on the back of the power button by rotating the nut counterclockwise.

  14. GrVpONPQLxXrxbGF

    • Pull the power button through the hole in the shell.

  15. wrdwYQiw2DIcyAeR
    wrdwYQiw2DIcyAeR
    RmJj4xqcN5Y132mg
    yNjMdtVdkSaEM4my

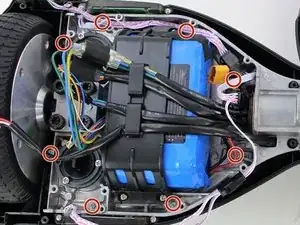

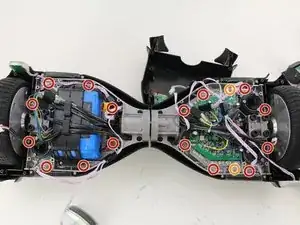

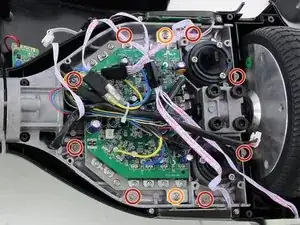

    • Remove the sixteen 10mm Phillips #2 machine screws by using a screwdriver to rotate the screws counterclockwise.

    • Remove the two 12mm Phillips #2 machine screws by using a screwdriver to rotate the screws counterclockwise.

  16. QNHPSi3itXkXKNBY

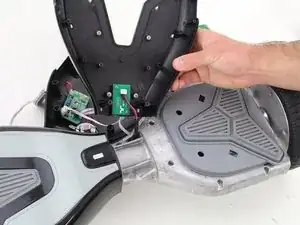

    • Lift both the left and right sides of the top half of the shell from the hoverboard's chassis.

  17. EJrbapHHkqHeQJEB

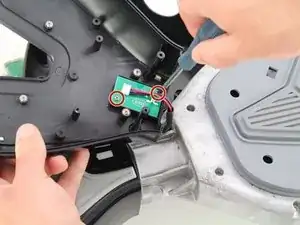

    • Remove the two 8mm Phillips #0 screws on the right half of the shell by using a screwdriver to rotate the screws counterclockwise.

    • Repeat for the left side of the shell.

  18. CLmuUMDoITjc3buY

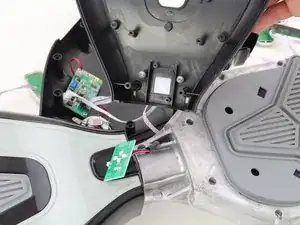

    • Lift the shell to remove it from the chassis.

Abschluss

To reassemble your device, follow these instructions in reverse order.
