Hover-1 Horizon Left Balancing Sensor Replacement

Geschrieben von: Jesus
  • Kommentare: 0
Hover-1 Horizon Left Balancing Sensor Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

40 - 45 Minuten

Einleitung

Is your hoverboard unbalanced or leaning to one side while riding? This is a guide to show you how to remove the left balance sensor tab on the Hover-1 Horizon, the most likely culprit to your problem. This guide requires a Phillips #2 and a Phillips #1 screwdriver.

  1. wef5PQQeoVqct5fA
    wef5PQQeoVqct5fA
    VnWAZv3ULWi2HpYH

    • Remove the six 12mm Phillips #2 screws holding the base plate.

  2. bv2ddOjtHCbES1Y2
    bv2ddOjtHCbES1Y2
    2vC1sW2n5c16M5XW

    • Remove the two 11mm Phillips #1 screws that hold the base plate to the body.

  3. yJ3y3DX1xQnkUeVG
    yJ3y3DX1xQnkUeVG
    UV5VTy2cTv6fjnfG
    QZeiIAAD2mOFWjFK

    • Remove the base plate by lifting it up.

    • The base plate is connected to the body with wires. The wires are long enough to set the base plate to the side.

  4. HEn26CdICIB1CYCU
    HEn26CdICIB1CYCU
    CpBcWAEA4k2EXNQp
    GnRXPZcYDwPGDKLV

    • Remove the two connectors on either side of the board by lifting the tab and pulling out.

    • Remove the connector in the middle of the board by squeezing the tab and pulling up.

  5. INcNwdwBDhYGN61u
    INcNwdwBDhYGN61u
    6cVoNVUqVMrCvqPN

    • Remove the four 11mm Phillips #1 screws that hold the cover on.

  6. YXTAaCtLBmq4d3ki
    YXTAaCtLBmq4d3ki
    DYm6xwM25PsxFpcO
    CyWLfNRHhEROViwZ

    • Remove the four 11mm Phillips #1 screws that attach the gyroscope board to the mount.

    • Lift the board to reveal the connections on the bottom.

  7. odZvcFuqkFMqvdFR
    odZvcFuqkFMqvdFR
    JZbLILGpgu4ITiqc

    • Remove the middle connector by squeezing the top of the tab and pulling up.

  8. PvAEN2AA3ABDSSTj
    PvAEN2AA3ABDSSTj
    NJyfeGFjqA4jwuR2
    2xgGAEhLP2he5CVW

    • Remove the four 12mm Phillips #2 screws that hold the motherboard to the base.

    • Pull the motherboard away from the gyroscope by grabbing it with two hands and pulling it to the right .

  9. poDWtZYPrHM3KqHr
    poDWtZYPrHM3KqHr
    ODPO4VI6mgZCaUbN
    dns3UEpeoIyNib1Y

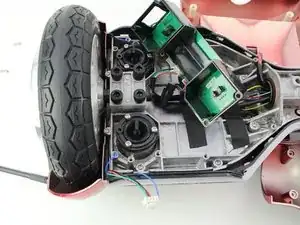

    • Unclip the black connector by squeezing both sides and pulling them apart.

  10. FYiSCodN5PqPjA6B
    FYiSCodN5PqPjA6B
    oUAuJicXBT3r1TBp
    FvOKcEtd4iJ5HLjL

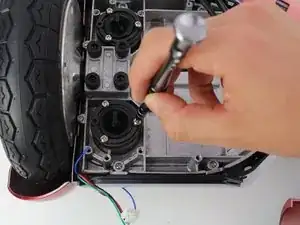

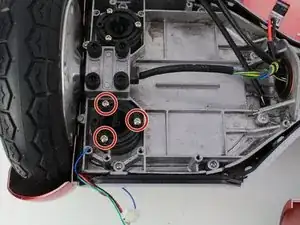

    • Remove the three 10 mm Phillips #1 screws connecting the balance sensor to the hoverboard.

    • The balance sensor tabs are made of sensitive rubber. Screw them back on slowly, and do not over-tighten.

  11. P5jEB5pwZXDP4dRW
    P5jEB5pwZXDP4dRW
    dwkiqmBwtyYvVUPM

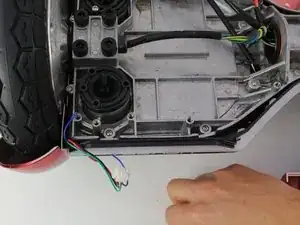

    • Remove the sensor tab by carefully lifting it away from the hoverboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
