Hover-1 Liberty Battery Replacement

Geschrieben von: Patrick Bacon
  • Kommentare: 0
Hover-1 Liberty Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

If your Hover-1 Liberty is not holding a charge and there is no problem with the charging cord, then the battery needs to be replaced. In this guide, the side of the hoverboard with the words Hover-1 printed on it will be referred to as the right side.

  1. jcPCxhJpPfMStuAQ
    jcPCxhJpPfMStuAQ
    ZORU3xWa2R6fI6rK

    • Flip the hoverboard over so the labels are facing upwards.

    • Remove the twenty 18mm screws using a Phillips #2 screwdriver and twisting counterclockwise.

  2. AmZ1SxCMDK6bWdQU
    AmZ1SxCMDK6bWdQU
    bdRoFh53ESwwT6OF

    • Remove the bottom cover by lifting it away from the hoverboard.

    • The cover on the side without the battery has two wires connecting the power button and charging port.

  3. kiH511JZEkUZFAhW
    kiH511JZEkUZFAhW
    HGKwKvtevT6klLSO
    BPlALJxnQrsabnPP

    • Remove one connector from the non-battery side circuit board.

    • Remove the next connector from the non-battery side circuit board.

    • To remove the connectors, pinch the plug and pull away from the circuit board.

  4. krtAwO4pN5LJEG22
    krtAwO4pN5LJEG22
    mQnpuYlCsVYvbXDC

    • Disconnect the large red and black wire from the battery by pulling apart the connector.

  5. 6ZpSX2TA6TaB5Wgw
    6ZpSX2TA6TaB5Wgw
    IhTCsLZjORx2T5xM

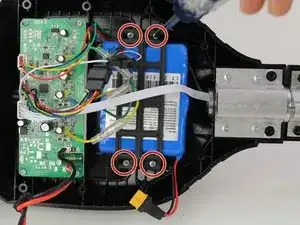

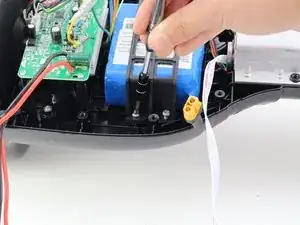

    • Remove the four 15mm Phillips #1 screws from the bracket holding the battery in place.

  6. VVnAIAFXkuqcCUKf
    VVnAIAFXkuqcCUKf
    kvXveQwIMnvusrHh

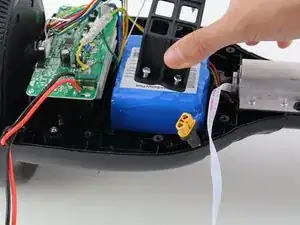

    • Remove the bracket by pulling it upwards, away from the hoverboard.

    • You will need to move some wires aside to remove the bracket successfully.

  7. Aa3TW2LkUFg1CJbk
    Aa3TW2LkUFg1CJbk
    vW2FOMDsvARTKbdw
    iAMatvuLJMpMGg3s

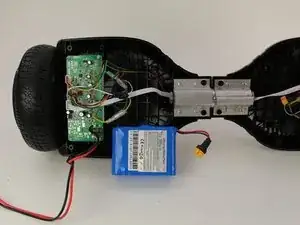

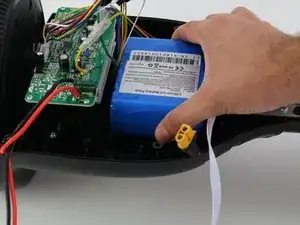

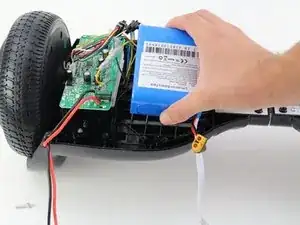

    • Remove the battery by grasping the battery and hoverboard firmly and pulling apart.

    • The battery is held in place by adhesive. So, some force is required to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
