Hover-1 Maverick Foot Mats Replacement

Geschrieben von: Piper Feldman
  • Kommentare: 0
Hover-1 Maverick Foot Mats Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

This guide for the Hover-1 Maverick guides users in replacing the foot mats on their device. The foot mats are crucial in allowing the hoverboard to balance and communicate movement to the rest of the device. A symptom of having faulty foot mats would be if the hoverboard is unable to balance.

  1. 2vugCAUUbpwBLRq3
    2vugCAUUbpwBLRq3
    TsSGUyCpMh4ppKWx
    LMt3CTWEUl1vi4y5

    • Remove the twenty 15mm Phillips #1 screws from the shell of the hoverboard.

    • Open the shell.

    • There is one motherboard on each side of the device located near the wheels.

  2. F2HR6vpgBEFyQWCS
    F2HR6vpgBEFyQWCS
    bBcVaiIT1mtbtrKo

    • Disconnect the battery to prevent any electrical currents from coming through the wires.

  3. JNu4LYGqZgKBlIWy
    JNu4LYGqZgKBlIWy
    HMvbNX1xFYQGMZ1V

    • Squeeze and pull on the wires to detach them from the motherboard.

  4. l1o2fOoXwogs5ylh
    l1o2fOoXwogs5ylh
    rFIdYrOP5PlPvVIX

    • Remove the four 8mm Phillips #1 screws.

    • Remove the motherboard from the device.

    • Repeat for the other motherboard.

  5. BkC3AAX3SHHc1Pko
    BkC3AAX3SHHc1Pko
    ucnXKScJCt4ZKTym

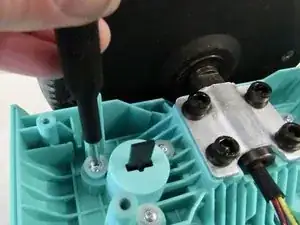

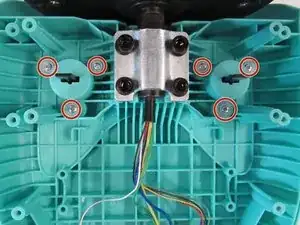

    • Remove six 1mm Phillips #1 screws.

  6. W6OB46MVArZHsNGe

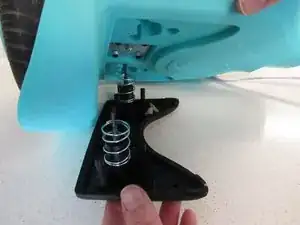

    • Remove the foot mats from the top of the board, which is facing down right now.

Abschluss

To reassemble your device, follow these instructions in reverse order.
