Hover-1 Nomad Charging Port Replacement

Geschrieben von: Samuel Frazee
  • Kommentare: 0
Hover-1 Nomad Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

If your Nomad is not charging correctly, your charging port may be damaged. Follow this guide to replace the charging port in your Hover-1 Nomad.

  1. 1XvOK6APOZVfOAMK
    1XvOK6APOZVfOAMK
    2E1ecjktIGUwYByl
    GEcdB3QjjvoTKkS2

    • Break the two warranty stickers by poking a screwdriver through them or peeling them off.

    • Remove the following twenty screws by rotating the screwdriver counterclockwise:

    • Eight 16.2mm Phillips #2 screws

    • Eight 15mm Phillips #2 screws

    • Four 19.1mm Phillips #2 screws

    • The holes containing most of the screws are deep and narrow. A screwdriver with interchangable bits will not be able to reach them.

    • Do not over-tighten the screws during reassembly. Over-tightened screws can crack the plastic channels holding the shell to the frame of the hoverboard.

  2. Zs4tLDeiFcPToWCI
    Zs4tLDeiFcPToWCI
    JoAyOxgQZA6vC41U
    AuFLNigcMNEHQpLs

    • Use a nylon spudger to pry the metal handle away from the outer shell.

    • Rotate the metal handle toward the center of the hoverboard to unlock the plate from the retaining clips.

    • Lift the hoverboard off the metal handle.

    • Repeat for the handle on the other side of the hoverboard.

  3. ybNqEYVs6rZ4lyU1

    • Lift the plastic cover on each side up and away from the device.

    • Multiple wires connect the circuit boards to the outer shell. Remove the shell gently to avoid damaging the wires or components.

  4. ByC6dW2QkfGVL2kL
    ByC6dW2QkfGVL2kL
    eE4MayacnoHaZIa4

    • Disconnect the following wires by pinching the connector tabs and pulling the plugs out of the connectors:

    • Charging port wires

    • Speaker assembly wires

    • Power button wires

    • Headlight wires

    • Only the headlight wires need to be disconnected from the other circuit board.

    • Ensure the wires are connected to the correct ports on the circuit board during reassembly.

  5. K1XIK15gt4M1Db6j
    K1XIK15gt4M1Db6j
    IhwtjsN4CypATDXD

    • Peel off the glue around the charging port.

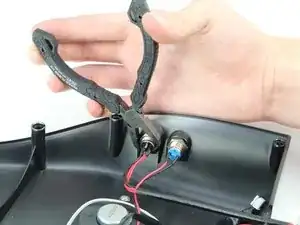

    • Unscrew the hexagonal nut around the charging port by rotating the nut counterclockwise with a pair of pliers.

  6. EbXH2SGhJXJyrdBr

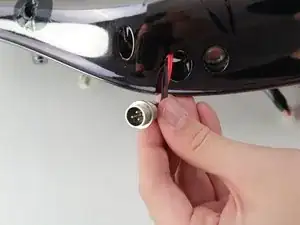

    • Feed the wire and connector through the removed nut and pull the charging port out through the hole in the outer casing.

    • Pulling the connector through the nut is a tight fit. Try turning the plug sideways to fit the connector through the nut.

Abschluss

To reassemble your device, follow these instructions in reverse order.
