Hover-1 Nomad Power Button Replacement

Geschrieben von: Samuel Frazee
  • Kommentare: 0
Hover-1 Nomad Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

If your Nomad does not power on, the power button may be damaged. Follow this guide to replace the power button in the Hover-1 Nomad.

  1. 1XvOK6APOZVfOAMK
    1XvOK6APOZVfOAMK
    2E1ecjktIGUwYByl
    GEcdB3QjjvoTKkS2

    • Break the two warranty stickers by poking a screwdriver through them or peeling them off.

    • Remove the following twenty screws by rotating the screwdriver counterclockwise:

    • Eight 16.2mm Phillips #2 screws

    • Eight 15mm Phillips #2 screws

    • Four 19.1mm Phillips #2 screws

    • The holes containing most of the screws are deep and narrow. A screwdriver with interchangable bits will not be able to reach them.

    • Do not over-tighten the screws during reassembly. Over-tightened screws can crack the plastic channels holding the shell to the frame of the hoverboard.

  2. Zs4tLDeiFcPToWCI
    Zs4tLDeiFcPToWCI
    JoAyOxgQZA6vC41U
    AuFLNigcMNEHQpLs

    • Use a nylon spudger to pry the metal handle away from the outer shell.

    • Rotate the metal handle toward the center of the hoverboard to unlock the plate from the retaining clips.

    • Lift the hoverboard off the metal handle.

    • Repeat for the handle on the other side of the hoverboard.

  3. ybNqEYVs6rZ4lyU1

    • Lift the plastic cover on each side up and away from the device.

    • Multiple wires connect the circuit boards to the outer shell. Remove the shell gently to avoid damaging the wires or components.

  4. ByC6dW2QkfGVL2kL
    ByC6dW2QkfGVL2kL
    eE4MayacnoHaZIa4

    • Disconnect the following wires by pinching the connector tabs and pulling the plugs out of the connectors:

    • Charging port wires

    • Speaker assembly wires

    • Power button wires

    • Headlight wires

    • Only the headlight wires need to be disconnected from the other circuit board.

    • Ensure the wires are connected to the correct ports on the circuit board during reassembly.

  5. JHhGYjgXOui4vYPN
    JHhGYjgXOui4vYPN
    sIyfjPH1UwyiiJMA

    • Peel off the glue around the power button.

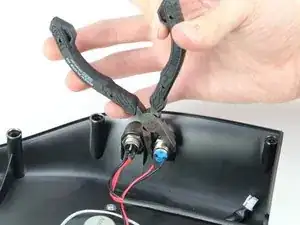

    • Unscrew the hexagonal nut around the power button by rotating the nut counterclockwise with a pair of pliers.

  6. EZOx6ISFlZCjEfuS

    • Feed the wire and connector through the removed nut and pull the power button out through the hole in the outer casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
