The speakers on the Hover-1 Superstar device can become defective through regular wear and tear, and as such they need to be replaced. This guide will take you through the steps involved for replacing the speakers of the Hover-1 Superstar.
-
-
Flip your Hover-1 Superstar device upside down.
-
Using a Phillips #1 screwdriver, remove all twenty of the 18mm screws holding the case onto the device.
-
Remove the bottom case. Be careful of the connector holding the case and the device together.
-
-
-
Locate the cable connected to the front lights.
-
Pull apart the wires until the black clip separates.
-
-
-

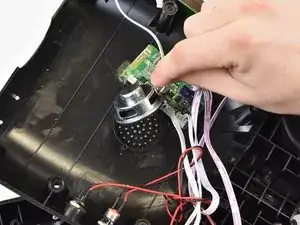

Unplug the white connector that connects the speaker itself with the circuit board attached to the bottom of the device case.
-
-
-

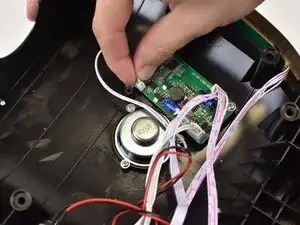

Unscrew all three 9mm screws with a Phillips #0 screwdriver securing the speaker to the device case.
-
To reassemble your device, follow these instructions in reverse order.
