Hover-1 Titan Battery Replacement

Geschrieben von: Jessica Ouyang
  • Kommentare: 0
Hover-1 Titan Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

If your Hover-1 Titan battery will no longer hold a charge or your device will not turn on, use this guide to remove and replace your battery.

  1. W5LFunHLwYwWxPSu
    W5LFunHLwYwWxPSu
    Uq5riYcjyqRrOoGo

    • Flip the hoverboard so the bottom is facing up.

    • The right side is the side that has the power button. There is also an "R" on the metal plate underneath the battery.

  2. RYxJyWcaV1fNHMeG
    RYxJyWcaV1fNHMeG
    rKRODpy4PG5UEVlN

    • Using a Phillips #1 screwdriver, remove the two 14 mm screws closest to the center of the hoverboard.

    • Using a Phillips #1 screwdriver, remove the four 12 mm screws located in the middle of the panel.

    • Using a Phillips #1 screwdriver, remove the two 15 mm screws located closest to the wheel.

  3. ISGoUwEhTfblJ6Vu
    ISGoUwEhTfblJ6Vu
    PC5DbZKIG3RHnmhQ
    G4KNeNIgo6cJrlMG

    • Grip the bottom right panel and lift to remove it.

  4. FaZNiEo4dQjAiRgj
    FaZNiEo4dQjAiRgj
    ZWvD4fmbqXYGjAId

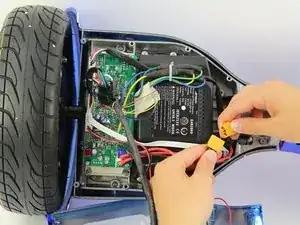

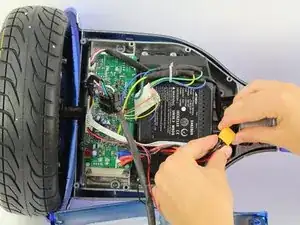

    • Unplug the battery from the gyroscope/motherboard by holding the yellow connector and pulling apart.

  5. Ml5RhE1POxFKvlDe
    Ml5RhE1POxFKvlDe
    iSePgJ3K3h5amsKm

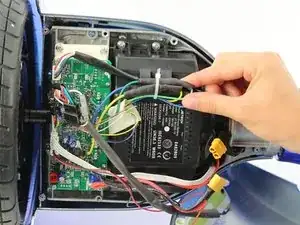

    • Remove the bundle of wires from the clip on the top of the battery.

  6. YQAMkj4joGoSeblD
    YQAMkj4joGoSeblD
    xMscnXUGhbTEjYyw

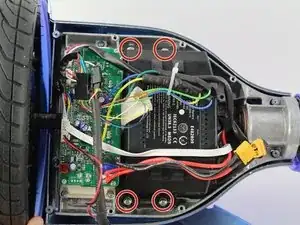

    • Using a Phillips #1 screwdriver, remove the four 14 mm screws that hold the battery on the device.

  7. wWvfObbUuQPDtVcQ
    wWvfObbUuQPDtVcQ
    ZKXvDSy6SLlXN6Td
    sBxcABWXXWsNfCXx

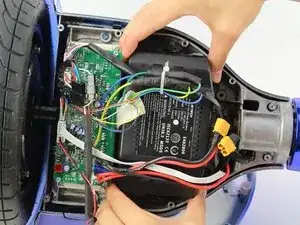

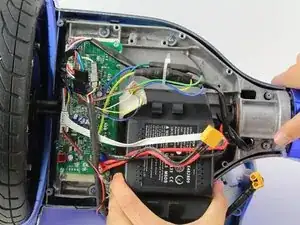

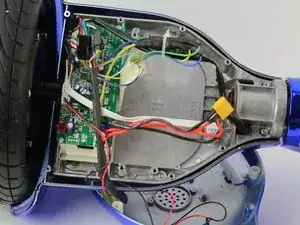

    • Remove the battery out of the hoverboard by lifting the battery then sliding it out from under the wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
