Einleitung

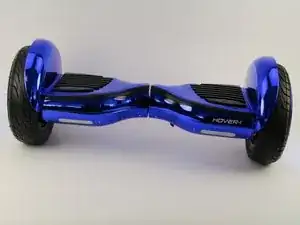

If the charge port on your Hover-1 Titan is no longer charging your hoverboard, this guide will explain how to replace it.

  1. XcaNWNBmGl4LUOhZ
    XcaNWNBmGl4LUOhZ
    C44YRG4UUu36brXI

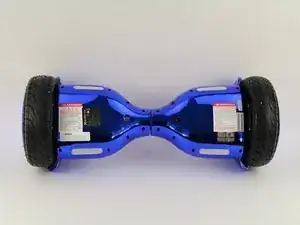

    • Flip the hoverboard so the bottom is facing up.

    • The left side is the side that has the charge port. There is also an "L" on the metal plate underneath the wires.

  2. o2aGSOq1OQoVqUGT
    o2aGSOq1OQoVqUGT
    NGAP3CuiXUk2erPQ

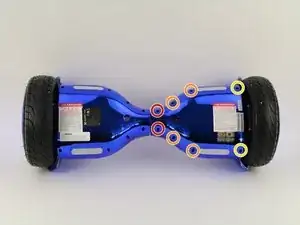

    • Using a Phillips #1 screwdriver, remove the two 14 mm screws located closest to the center of the hoverboard.

    • Using a Phillips #1 screwdriver, remove the four 12 mm screws located in the middle of the panel.

    • Using a Phillips #1 screwdriver, remove two 15 mm screws located closest to the wheel.

  3. JZk5p6ZfcF5vY4sm
    JZk5p6ZfcF5vY4sm
    db2HRB52hFVEORQp
    5c2BgkFBXKcE4ScE

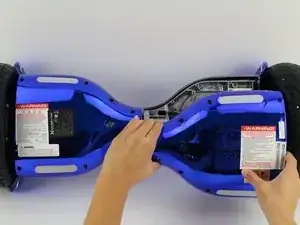

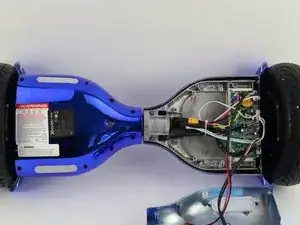

    • Grip the bottom left panel and lift up to remove.

  4. BBjICjqtYOu6a4qL
    BBjICjqtYOu6a4qL
    jwdDJqKxVG5NEUjb
    by6yH3mcCIyL3Y2u

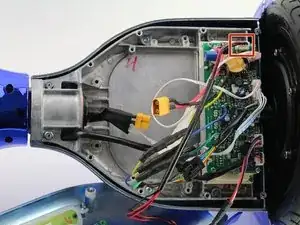

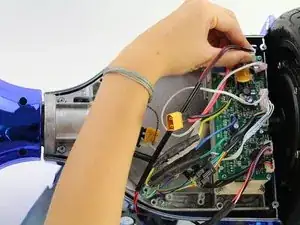

    • Unplug the red and black charge port wire from the motherboard by squeezing the connector located at the top right of the motherboard and pulling the connector away from the board.

  5. hyOhCvSaKVGVgbWy
    hyOhCvSaKVGVgbWy
    HhtNUyqSuuxtMBtR
    noojMwuuYpOJQYLn

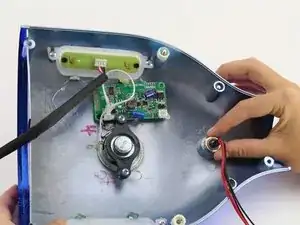

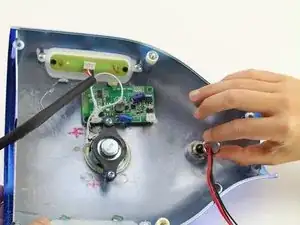

    • Use an adjustable wrench to loosen the 14 mm nut and lift it off the charge port.

  6. 2qt4LaUiPVcqoobC
    2qt4LaUiPVcqoobC
    HNbXCLVqNbxIaTQN

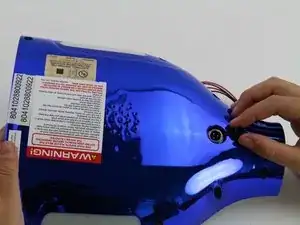

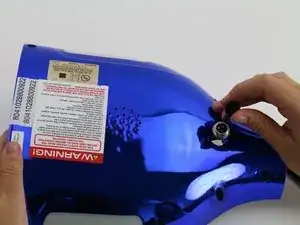

    • Remove the old charge port by pulling the wires all the way through the panel.

    • Replace the old charge port with the new charge port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
