Hover-1 Titan Left Gyroscope Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 - 20 Minuten

Einleitung

If your hoverboard will not turn on, retain a charge, move, or spin properly, use this guide to help replace your Hover-1 Titan gyroscope/motherboard.

  1. XcaNWNBmGl4LUOhZ
    XcaNWNBmGl4LUOhZ
    C44YRG4UUu36brXI

    • Flip the hoverboard so the bottom is facing up.

    • The left side is the side that has the charge port. There is also an "L" on the metal plate underneath the wires.

  2. o2aGSOq1OQoVqUGT
    o2aGSOq1OQoVqUGT
    NGAP3CuiXUk2erPQ

    • Using a Phillips #1 screwdriver, remove the two 14 mm screws located closest to the center of the hoverboard.

    • Using a Phillips #1 screwdriver, remove the four 12 mm screws located in the middle of the panel.

    • Using a Phillips #1 screwdriver, remove two 15 mm screws located closest to the wheel.

  3. JZk5p6ZfcF5vY4sm
    JZk5p6ZfcF5vY4sm
    db2HRB52hFVEORQp
    5c2BgkFBXKcE4ScE

    • Grip the bottom left panel and lift up to remove.

  4. dV6YRcGpyWoe4MSZ
    dV6YRcGpyWoe4MSZ
    YTStJXnVSIhR6SGQ

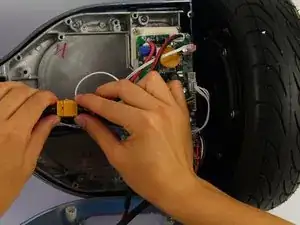

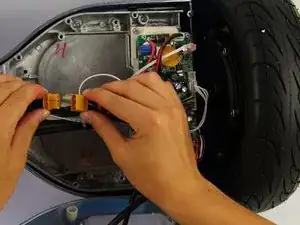

    • Unplug the battery from the gyroscope by holding the yellow connector and pulling apart.

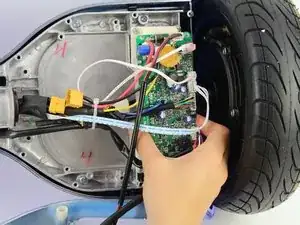

  5. TmcAGLh3qRbo1tEV
    TmcAGLh3qRbo1tEV
    BpDICBtLZCOIUj61
    aFrWBESXJtSBIwMh

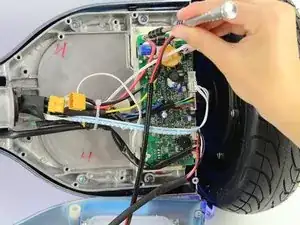

    • Remove four 12 mm Phillips #1 head screws from the corners of the green gyroscope/motherboard.

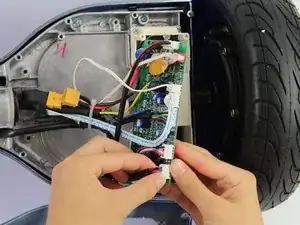

  6. k5meEB5fFbNygQQT
    k5meEB5fFbNygQQT
    SpLWmXGaqVV5GMpu

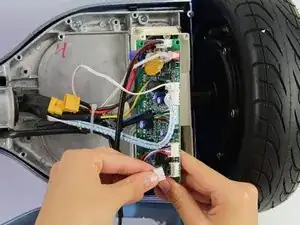

    • Unplug the bottom right connector by squeezing it and pulling it away from the board.

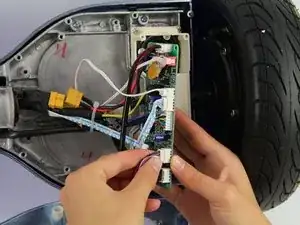

  7. HSnBWIUQ1bOT6ZkC
    HSnBWIUQ1bOT6ZkC
    AT16NTEit2RJ1KFk

    • Unplug the light connector by squeezing it and pulling away from the board.

  8. xS3uZJLQAFSnOwSG
    xS3uZJLQAFSnOwSG
    JPXdOmxeEqdKOpgH

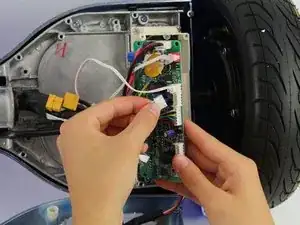

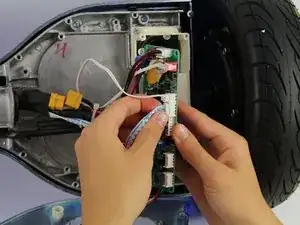

    • Unplug the blue and white wires by squeezing the connector and pulling away from the board.

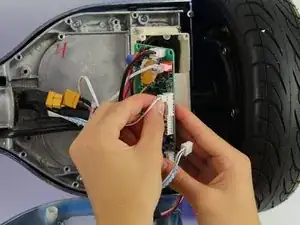

  9. ZvDFcUBcM13jCG36
    ZvDFcUBcM13jCG36
    pGCCKY3vCRCwTHIJ

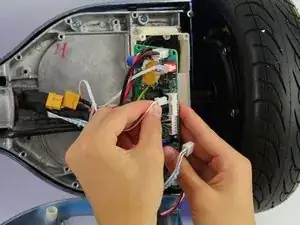

    • Unplug the small white connector by squeezing it and pulling away from the board.

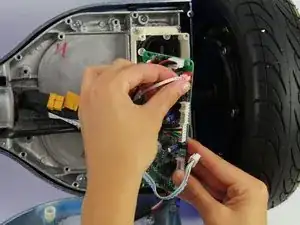

  10. SNVYDvA1Xj4jbJuA
    SNVYDvA1Xj4jbJuA
    4EkLBQ2qQhrlGTnC

    • Unplug the plug in the red connector.

    • The red plug is glued to the board, so this step will require extra force.

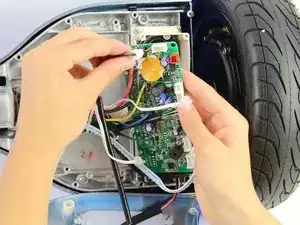

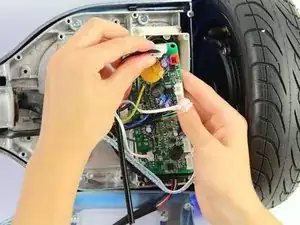

  11. tsHGGIjFP4Kv3fH6
    tsHGGIjFP4Kv3fH6
    W4BTAvBgCELysNCW

    • Unplug the charging cable connector by squeezing it and pulling it away from the board.

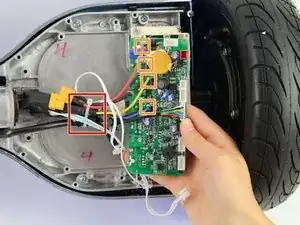

  12. wACKQAfaRd1BNwQ5

    • Cut the cable tie.

    • Unplug the remaining wires.

    • The connectors for the remaining wires are in the rubber covers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
