Hover-1 Titan Right Gyroscope Replacement

Geschrieben von: Jessica Ouyang
  • Kommentare: 1
Hover-1 Titan Right Gyroscope Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 20 Minuten

Einleitung

If your hoverboard will not turn on, retain a charge, move, or spin properly, use this guide to help replace your Hover-1 Titan gyroscope/motherboard.

  1. W5LFunHLwYwWxPSu
    W5LFunHLwYwWxPSu
    Uq5riYcjyqRrOoGo

    • Flip the hoverboard so the bottom is facing up.

    • The right side is the side that has the power button. There is also an "R" on the metal plate underneath the battery.

  2. RYxJyWcaV1fNHMeG
    RYxJyWcaV1fNHMeG
    rKRODpy4PG5UEVlN

    • Using a Phillips #1 screwdriver, remove the two 14 mm screws closest to the center of the hoverboard.

    • Using a Phillips #1 screwdriver, remove the four 12 mm screws located in the middle of the panel.

    • Using a Phillips #1 screwdriver, remove the two 15 mm screws located closest to the wheel.

  3. ISGoUwEhTfblJ6Vu
    ISGoUwEhTfblJ6Vu
    PC5DbZKIG3RHnmhQ
    G4KNeNIgo6cJrlMG

    • Grip the bottom right panel and lift to remove it.

  4. NvikKLopmoDXqOoD
    NvikKLopmoDXqOoD
    BZKHEgnOeWryGntp

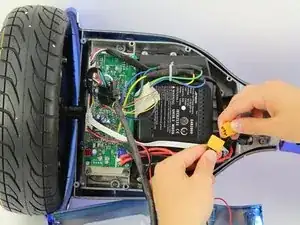

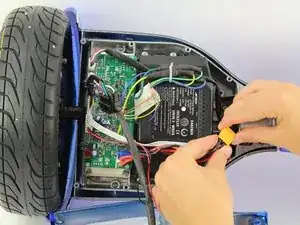

    • Unplug the battery from the gyroscope/motherboard by holding the yellow connector and pulling apart.

  5. bBCVokwAXVymAqqs
    bBCVokwAXVymAqqs
    AlKv1CCZEZVIwjVW
    gjDnuRNXLslDsH5e

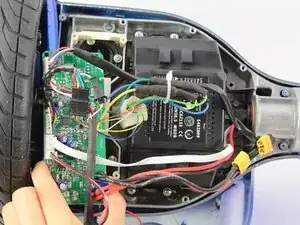

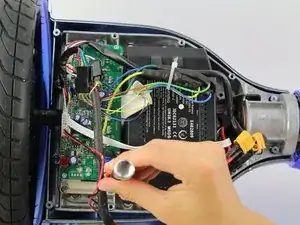

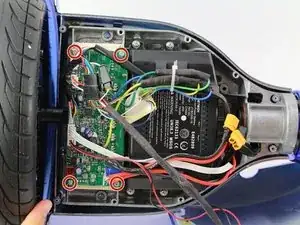

    • Remove four 12 mm Phillips #1 head screws from the corners of the green gyroscope/motherboard.

  6. vKeBgBjf6s5qABfC
    vKeBgBjf6s5qABfC
    KugRIHRbPL3KdSQO

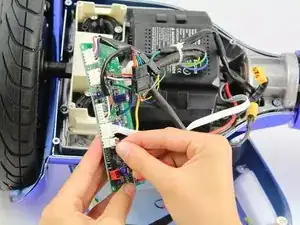

    • Unplug the bottom left connector by squeezing it and pulling it away from the board.

  7. kpXUW6ODcsE43BeV
    kpXUW6ODcsE43BeV
    o5VxaGVLSIGMPhEX

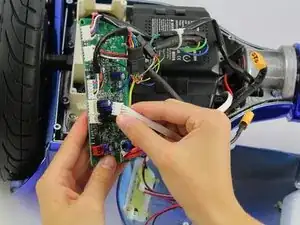

    • Unplug the white wires by squeezing the connector and pulling away from the board.

  8. jNlZRNwLrF626OWU
    jNlZRNwLrF626OWU
    rAjNbR1xxKkNDZWS

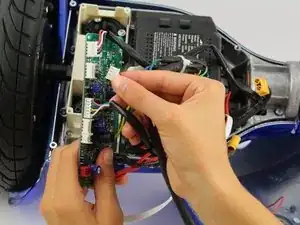

    • Unplug one set of the red, white, purple, and black wires by squeezing the connector and pulling away from the board.

  9. RQgwXcaLtVFcCANX
    RQgwXcaLtVFcCANX
    DOjUOTOkhZArKDDB

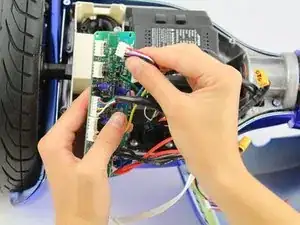

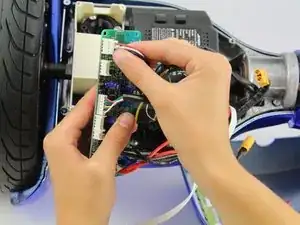

    • Unplug the other set of the red, white, purple, and black wires by squeezing the connector and pulling away from the board.

  10. Qj32JsP5NMDji6vt

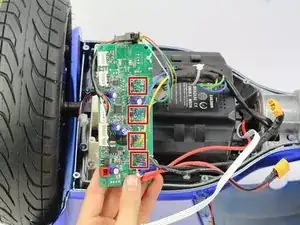

    • Cut the cable tie and unplug the remaining wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
