If the wheel of your hoverboard is damaged or your hoverboard does not spin on one side, use this guide to replace the wheel and motor in the Hover-1 Titan.

  1. XcaNWNBmGl4LUOhZ
    XcaNWNBmGl4LUOhZ
    C44YRG4UUu36brXI
    • Flip the hoverboard so the bottom is facing up.

    • The left side is the side that has the charge port. There is also an "L" on the metal plate underneath the wires.

  2. o2aGSOq1OQoVqUGT
    o2aGSOq1OQoVqUGT
    NGAP3CuiXUk2erPQ
    • Using a Phillips #1 screwdriver, remove the two 14 mm screws located closest to the center of the hoverboard.

    • Using a Phillips #1 screwdriver, remove the four 12 mm screws located in the middle of the panel.

    • Using a Phillips #1 screwdriver, remove two 15 mm screws located closest to the wheel.

  3. JZk5p6ZfcF5vY4sm
    JZk5p6ZfcF5vY4sm
    db2HRB52hFVEORQp
    5c2BgkFBXKcE4ScE
    • Grip the bottom left panel and lift up to remove.

  4. eGWEpaQpp4tAcfQo
    eGWEpaQpp4tAcfQo
    2dNGbyYONJTewns1

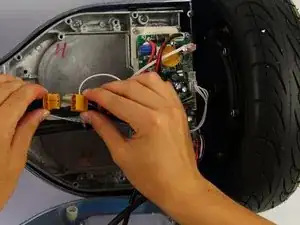

    • Unplug the battery by pulling apart the yellow connectors.

  5. IGlYwQ1cgpBGHPXQ
    IGlYwQ1cgpBGHPXQ
    VdJUJoJy253CXgMy

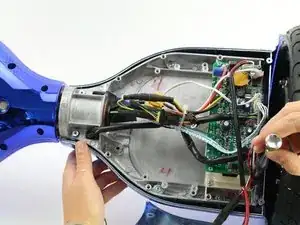

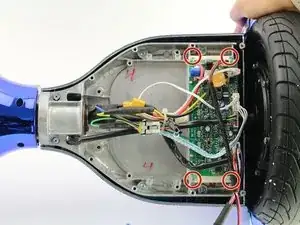

    • Use the Phillips #1 screwdriver to remove the four 12mm screws that attach the gyroscope/motherboard to the hoverboard.

  6. TMNREK4hyLPZpn3A
    TMNREK4hyLPZpn3A
    ayHt3NUVfMKp1jOQ
    D6ThhMgrrKBILY5P

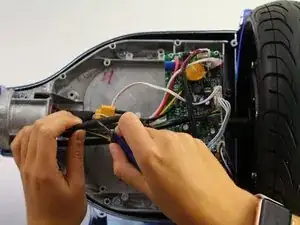

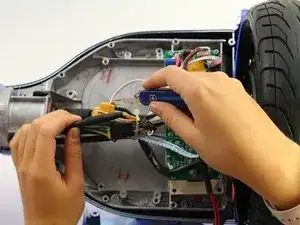

    • Cut the rubber surrounding the yellow wire and pull the rubber apart, exposing the connectors.

  7. dmGOjcQHsvXnDnTY
    dmGOjcQHsvXnDnTY
    1HS1XZtNcOgMG3MI

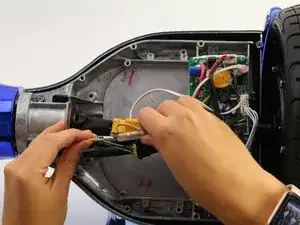

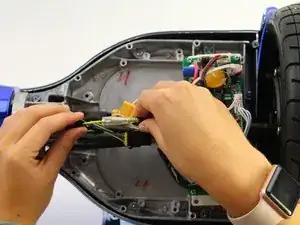

    • Unplug the yellow wires by gripping the wire close to the connectors and pulling apart.

  8. LBMvxEdtYBq15PP3
    LBMvxEdtYBq15PP3
    ftqRyvEMZpT5OfCT
    1JX16TaTtHSYmIlu

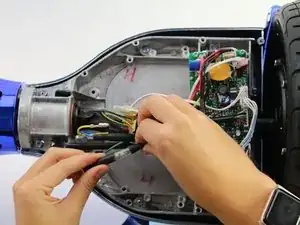

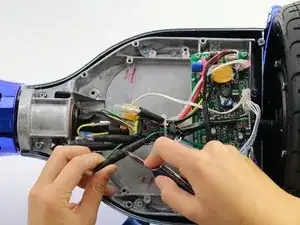

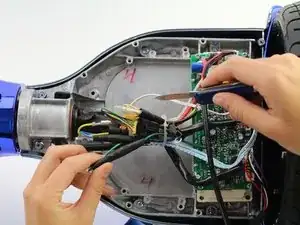

    • Cut the rubber surrounding the green wire and pull the rubber apart, exposing the connectors.

  9. cYDETkH4Y5Pcpd6j
    cYDETkH4Y5Pcpd6j
    XjpchFjKV2qYkCYU

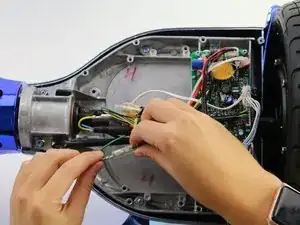

    • Unplug the green wires by gripping the wire close to the connectors and pulling apart.

  10. EExfSfCY1TmN1ndU
    EExfSfCY1TmN1ndU
    Z5iSWJPRGD1EIYud
    uOvg2OmlbxUXtkVg

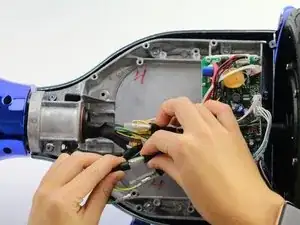

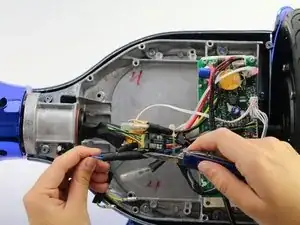

    • Cut the rubber surrounding the blue wire and pull the rubber apart, exposing the connectors.

  11. MH2QZusi2CPNYu1L
    MH2QZusi2CPNYu1L
    3AIA6PfEyTnpBTNH

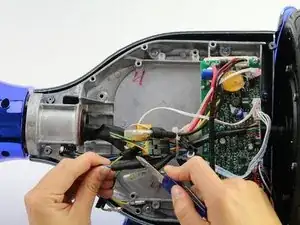

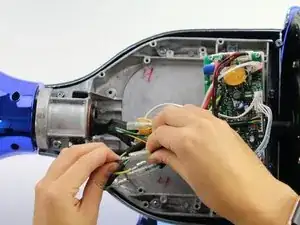

    • Unplug the blue wires by gripping the wire close to the connectors and pulling apart.

  12. RygUDAfmKV2YuJuo
    RygUDAfmKV2YuJuo
    sp5TUDABRlLpK1js
    uTr3ETM3PWpX15vw

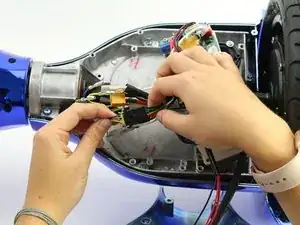

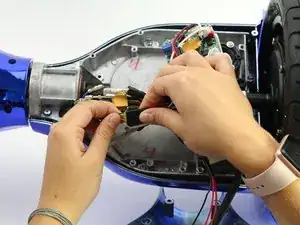

    • Unplug the rainbow connector by squeezing the clips and pulling apart.

  13. jMJtix6qxy6DHGkX
    jMJtix6qxy6DHGkX
    SkDPrlSvuUYONXvA

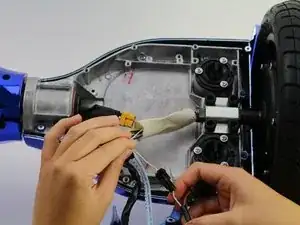

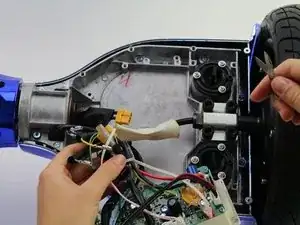

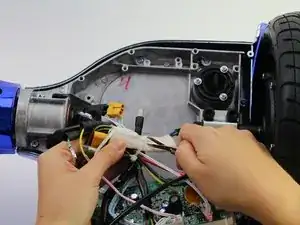

    • Use scissors to cut the zip tie around the group of wires.

  14. aysG1ZX44wkyB5DC
    aysG1ZX44wkyB5DC
    Kk6RKgVYbRxqc2vE
    VHdQUHKhU5OOiN6T

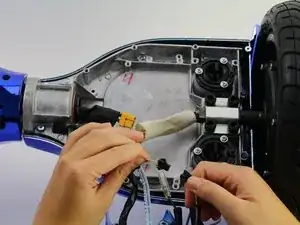

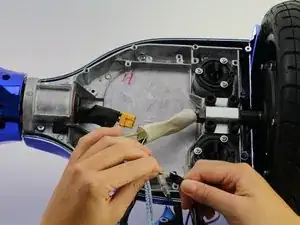

    • Unplug the white wire connector by squeezing the clips and pulling apart.

  15. sxhAcTZ3SRMINhOK
    sxhAcTZ3SRMINhOK
    JlnDFO21i1XNhAsS

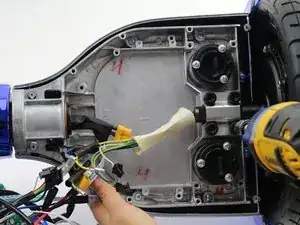

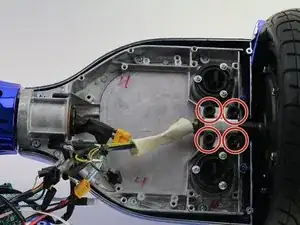

    • Use an impact driver with a hex 6 bit to loosen the four 20 mm hex 6 bolts.

    • Wear safety glasses while using the impact driver.

  16. UyCbYigiFglGLeRf
    UyCbYigiFglGLeRf
    gohNuHFwXkAALhXe
    oFYAPxUWJMJrPDGi

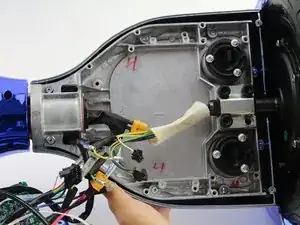

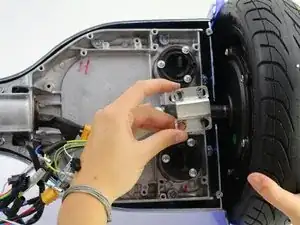

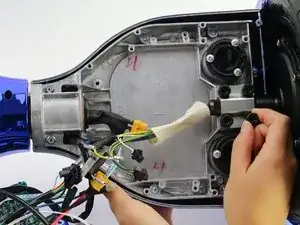

    • Pull out the loosened screws with your hands and remove the metal plate.

  17. AiHwMgmSFB1GjsYf
    AiHwMgmSFB1GjsYf
    oZULZtO6ga2nG3ex

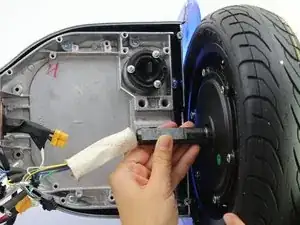

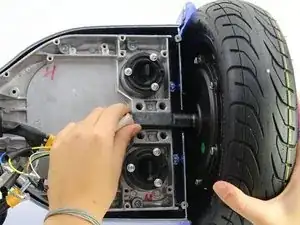

    • Lift the wheel and motor shaft up and out of the board.

    • The motor shaft is located within the wheel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
