How To Clean Nikon Coolpix S30 Lens

Geschrieben von: Courtney Weida
  • Kommentare: 1
How To Clean Nikon Coolpix S30 Lens

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

You will need a T5 and a PH000 tip from the iFixit's kit.

If the camera is taking fuzzy pictures it may be due to debris blocking the lens.

  1. USbFEZQ3vDsrLhcS
    USbFEZQ3vDsrLhcS
    XR2KGmmlKTYPxhNR

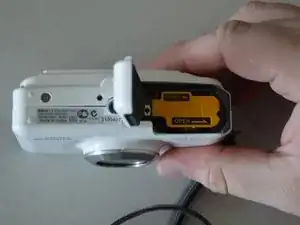

    • Slide the battery cover to the right.

    • The hinge is on the left side of the cover which will allow the cover to stay attached.

  2. h3fuw3g4BUJKQipc
    h3fuw3g4BUJKQipc
    XxDGQ6tLkDH5VeU6

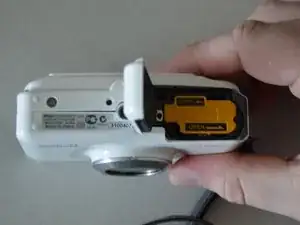

    • Slide the second cover (yellow) to the right (similar to the outer cover). This will allow the batteries to be exposed.

  3. 1EiHPjUIGwZFrSUo

    • Remove the batteries by gently tipping the camera.

  4. PXfIcpouSDrgM6tL

    • Remove the four screws the hold the back of the case to the rest of the camera.

  5. KUGMvEXEBxILAjcI

    • Remove the left screw from the bottom of the camera first. This can be done using the same T5 tip.

    • Unscrew the screw on the right using a different attachment: PH000 (it is a small Phillip's head)

  6. PbaxpXY5sDaV6vMe

    • Remove back case from the rest of the camera carefully.

  7. 3ypBeC1UluyXqt5j

    • Remove the three screws the secure the motherboard to the front case.

  8. DVWkXLnTsrIHXvRD
    DVWkXLnTsrIHXvRD
    wHtRnrYKkhUVZjZ2

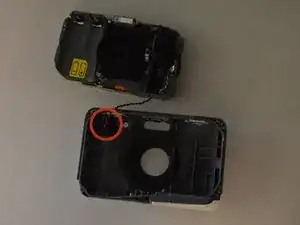

    • Remove the motherboard from the front case.

    • Leave the red and black wire attached but lay the piece in front of the case.

  9. kYvAZ2pGoGgCfCSK
    kYvAZ2pGoGgCfCSK
    irebXv3aMkGgwkFk

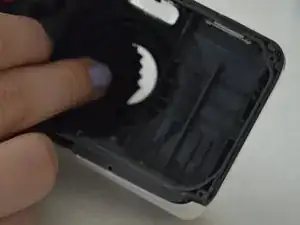

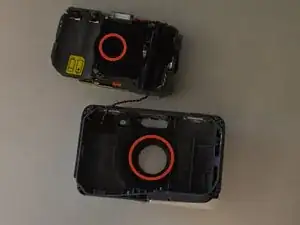

    • Wipe the lens and the clear plastic on the front case to remove debris.

Abschluss

To reassemble your device, follow these instructions in reverse order.
