How To Fix A Leaky Faucet

Geschrieben von: Geoff Wacker
  • Kommentare: 0
How To Fix A Leaky Faucet

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 - 30 Minuten

Einleitung

Use this guide to stop a leak in a common cartridge faucet.

  1. IFr11AQPSrQgoHVF
    IFr11AQPSrQgoHVF
    IPPQqEfUqdZVZDap

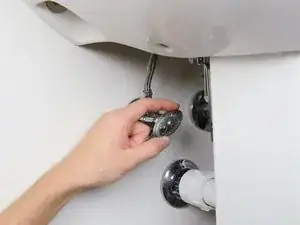

    • Shut off the hot and cold water valves underneath the sink by twisting them clockwise until they are tight.

    • The appearance of these valves will differ from sink to sink, but most operate the same.

    • To test that the water has been completely shut off, try turning on the faucet like you would normally. If no water comes out, you're in luck!

    • When reopening the valves after the repair, leave the faucet in its on position. This will prevent pressurized air from building up in the faucet cartridge.

  2. JgNntBOgYcnHrGng
    JgNntBOgYcnHrGng
    OCgR2ctwO1DiItnN
    6aZrPXVDpotxQA6O

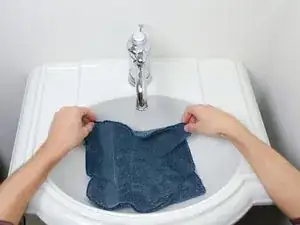

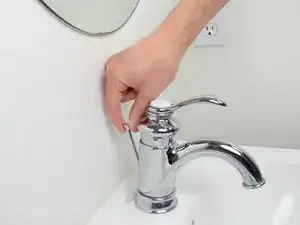

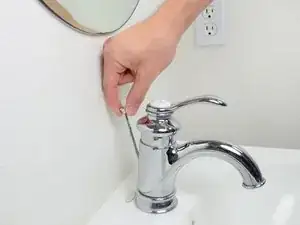

    • Pull up on the the pop-up drain stopper to seal the sink drain.

    • Place a towel in the sink to catch any excess water or faucet hardware.

  3. VD3ZgottY1fNbTCX
    VD3ZgottY1fNbTCX
    5qoJvtvYHFostWJB
    GWaGILFPwqZC53LK

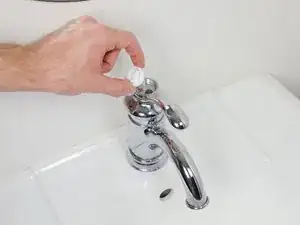

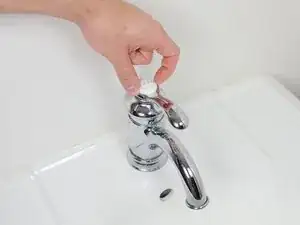

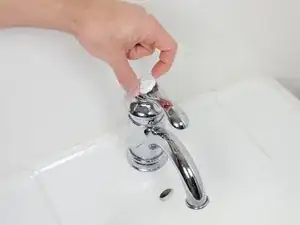

    • Use your fingers or a prying tool to remove the plug button from the top of the faucet handle.

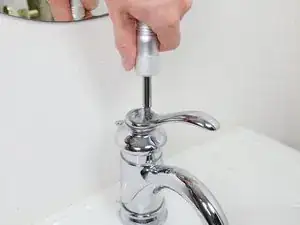

  4. vBeDSMFh2EqwaMYb

    • Use a screwdriver to remove the single handle screw.

    • The number and head type/length of the screws may vary from faucet to faucet.

  5. UKhcAqSgNSE6OLAN
    UKhcAqSgNSE6OLAN
    lUpaSxHDb1XFpmFj
    RmOCTBOtkqfSuZIy

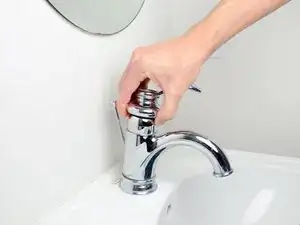

    • Gently pull the faucet handle up from the rest of the faucet.

  6. GIgKZBTiqNp5WqbS
    GIgKZBTiqNp5WqbS
    seygLiqVnPeYYdDQ

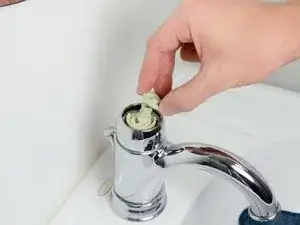

    • Remove the temperature limit stop from the top of the cartridge.

    • When removing the temperature limit stop and indexer, take note of their position. The limit stop and indexer determine the maximum temperature that water can reach when coming out of the faucet.

    • Even if you mark the position of the indexer and stop, you may still need to reset the temperature limit after addressing the leak. Follow the instructions for your specific faucet if they are available.

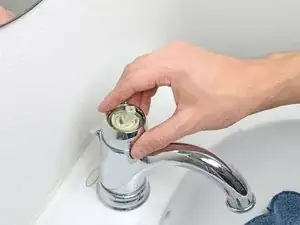

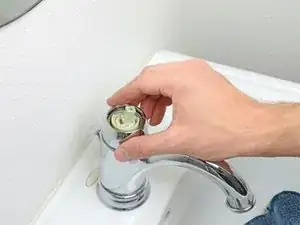

  7. Btb4qKctYgQ6ULJt
    Btb4qKctYgQ6ULJt
    mTcE4is6MRJQTRtr
    CjMioEOQLL2VJFCl

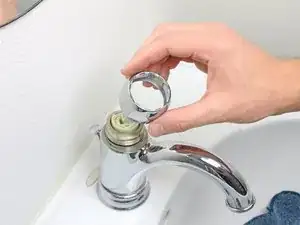

    • Unscrew the bonnet from the faucet.

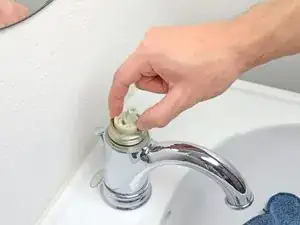

  8. lH6IGL3KJJ6nDhhF
    lH6IGL3KJJ6nDhhF
    cYVfw2NFtcZSm3bB

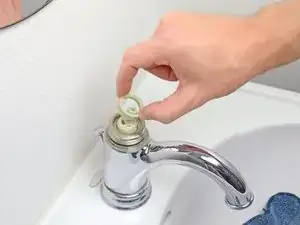

    • Remove the temperature limit indexer from the top of the cartridge.

  9. ZGKuiaKLX3sler1O
    ZGKuiaKLX3sler1O
    He6JZuYXZUCmLWJs

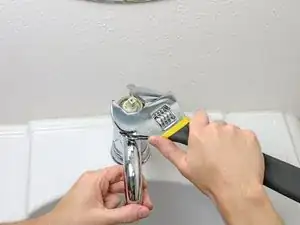

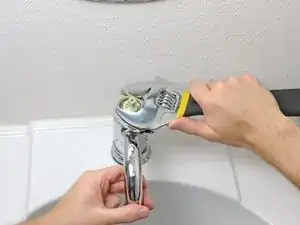

    • Use an adjustable wrench to loosen the bonnet nut.

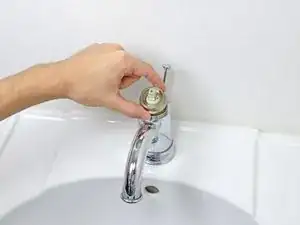

  10. QEwkkKkR1earIpDq
    QEwkkKkR1earIpDq
    VQPR4mOqp3WMObmW

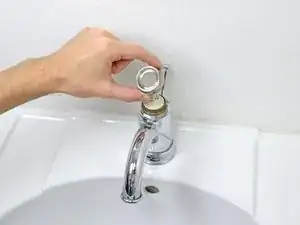

    • Remove the bonnet nut.

  11. XE4xXeJfeR6ybiMq
    XE4xXeJfeR6ybiMq
    UR4PA6OiYWv3GYgL

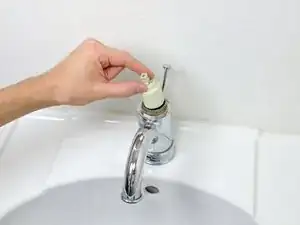

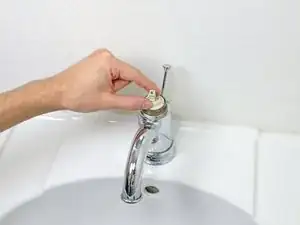

    • Remove the cartridge.

  12. 1dZPRVTdSNfTDnZI
    1dZPRVTdSNfTDnZI
    l2PSC4He2Gb6NQ1p
    QFBmGZM5EEGtV3tj

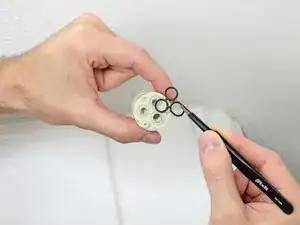

    • Remove the cartridge o-rings.

    • If the leak has been coming only from the end of the faucet, replace the cartridge.

    • If the faucet has been leaking from the base or from the faucet handle, replace the o-rings.

    • When installing new o-rings, be sure to properly seat them into the grooves on the underside of the cartridge. A misaligned o-ring can easily cause a new leak.

  13. fFtJdBOA3tPbZSAn
    fFtJdBOA3tPbZSAn
    WAjwtEqFdKfvqZVu

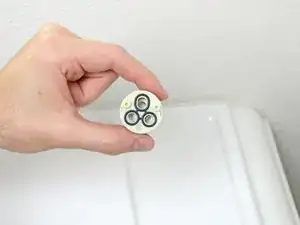

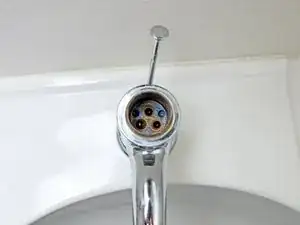

    • When reinserting the cartridge, be sure that the keys on the cartridge line up with the keys on the base of the faucet.

Abschluss

To reassemble your device, follow these instructions in reverse order.
