LED roof cab lights are quite a customizable universal fit product, meaning that you're great for all kinds of trucks, SUVs, and RVs. You will need to check and see if your vehicle already has a set of roof cab lights. Otherwise, you need to drill a couple of holes so you can proceed with the wiring. This LED roof cab light set comes with 5 cab LED roof lights with 10 screws and 10 washers to complete your installation.
You can get these Truck Roof LED Cab Lights on Amazon for just 46.99 dollars a set.
Werkzeuge
Ersatzteile
-
-

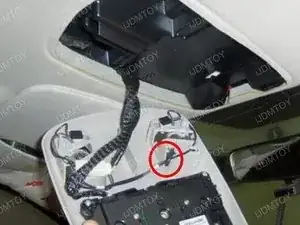

There are a couple ways you can power up this LED. You have the choice of adding a switch or just using the truck's interior light switch. For demonstration purposes, we are using the truck's interior lights to power up the entire assembly.
-

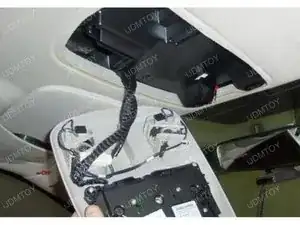

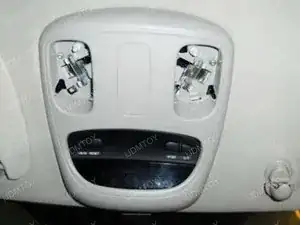

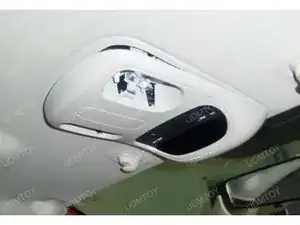

Expose the wires by removing the entire front map light assembly.
-
-
-

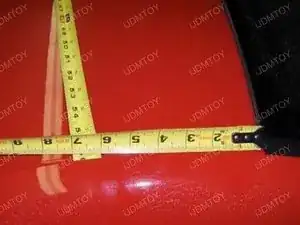

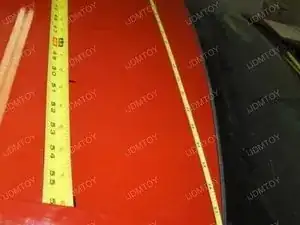

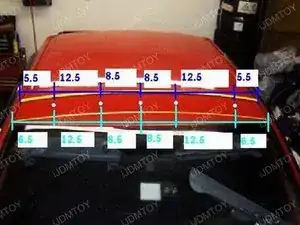

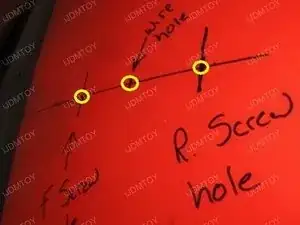

Get up to the roof of your truck to measure where you're going to install these LED cab roof lights. You can use a dry erase marker to mark all the points where you will be drilling into the roof.
-
-
-
Get up to the roof of your truck to measure where you're going to install these LED cab roof lights. You can use a dry erase marker to mark all the points where you will be drilling into the roof.
-
-
-

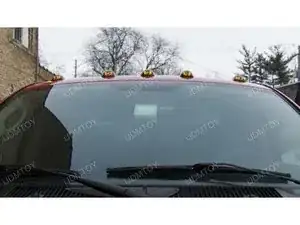

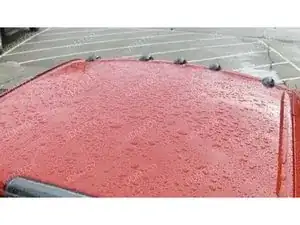

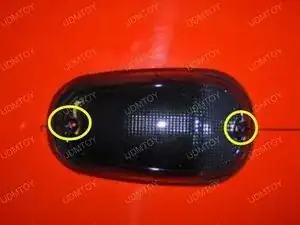

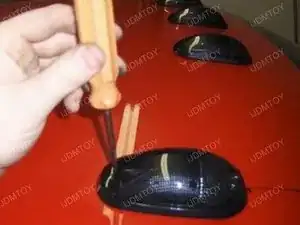

Use a screwdriver and attach the screws at the front and the rear of each LED roof lamp to permanently mount it.
-
-
-

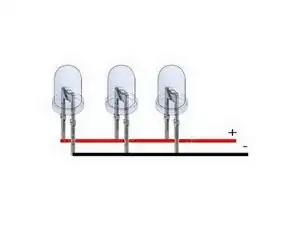

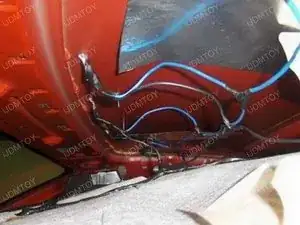

Wire up the LED lights in parallel. Use some electrical tape to secure the connections. Route the wires through the front map light assembly to complete the wiring portion.
-
