How To Tear Down Samsung Galaxy S6 Edge Plus

Geschrieben von: Mandy
Veröffentlicht: 21/08/15
  • Kommentare: 21

How To Tear Down Samsung Galaxy S6 Edge Plus

Veröffentlicht: 21/08/15

Teardown

Einleitung

This is a tutorial guide from How2Tech about how to tear down the Galaxy S6 Edge Plus.

  1. T2YUTsLO3Bk1KXKA

    • Power off the Galaxy S6 Edge Plus and remove the SIM card tray.

    Hi please can you show me me where there ram is built in please?

    Juan Botes -

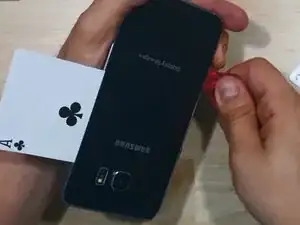

  2. rEVTmYu6EwXHJFMr
    rEVTmYu6EwXHJFMr
    4ldi3IncBiMUuBhK
    KDh4SyiUjh1bDhPH

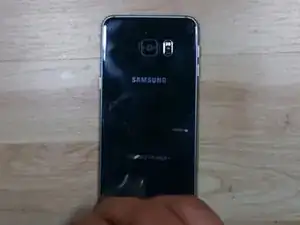

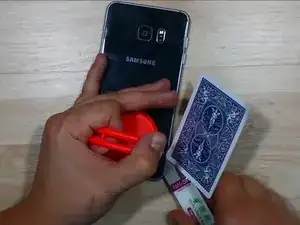

    • Heat up to soften the adhesive around the back cover.

    • Pull up a gap to insert the prying tool and a poker card.

    • Run the poker card and case opening tool around the edges to separate the back cover.

  3. n2HrjGFQNfwsrUhM
    n2HrjGFQNfwsrUhM
    JLfmdRRhQpwZUQWO

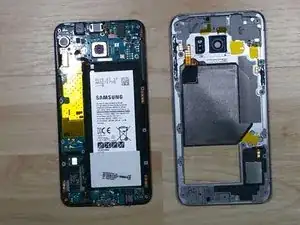

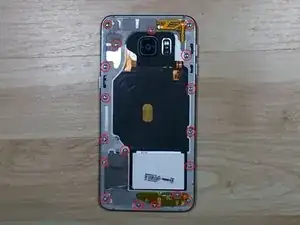

    • Undo the 18 screws in the rear housing.

    • Pull up the rear housing from LCD assembly with frame.

  4. mGeQl5OJoWkLJ5PJ
    mGeQl5OJoWkLJ5PJ
    cKBqo2WFE1PvGX4c
    JwkXt2slCauUmowX

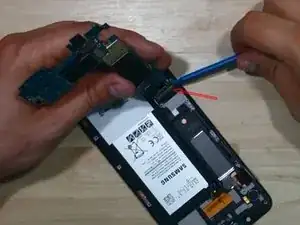

    • Pry up the screen flex connector, battery flex connector, ear speaker flex connector and proximity sensor flex connector.

    • Pry up the motherboard and turn it upside down to release the connector behind.

    • Pry up the connectors on the motherboard to release the front facing and rear facing camera if necessary.

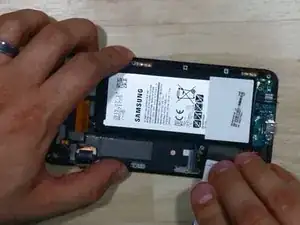

  5. D3Tu4ZxI55tfHiUP
    D3Tu4ZxI55tfHiUP
    RrZHADcFll6kMD1G
    cdwGRNZNFdo2FGUq

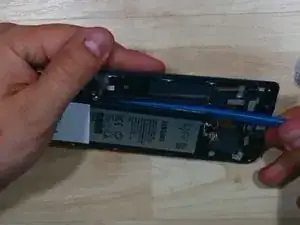

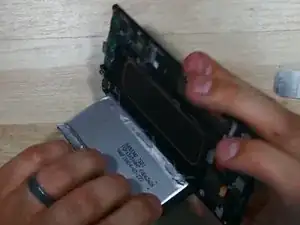

    • Pry up around the edges of battery as there're two main adhesive sticker underneath.

    • Insert the Spudger to pry up the adhesive.

    • Tear the battery by hands.

    Make sure that you don’t do it with metal tools, other wise you could scratch the other side of the screen and that will result in dead pixels

    Valters Žilinskis -

    Good suggestions, thank you.

    Mandy -

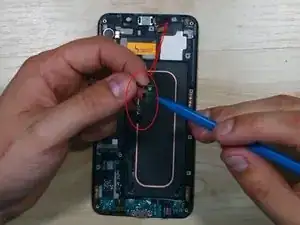

  6. DFneJtlEWXS5GRuR
    DFneJtlEWXS5GRuR
    SAeAqjpGQxwVPHwf
    F6H2jnVL2YVehyVu

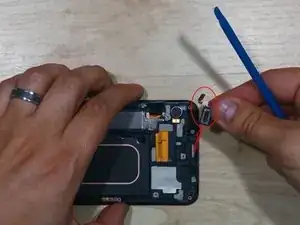

    • Pry up to release the proximity sensor module.

    • Pry up to release the ear speaker.

    • Pry up to release the vibrating motor.

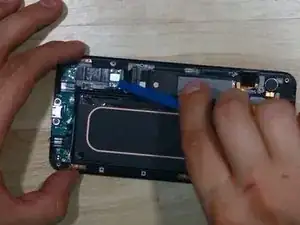

  7. QCPGCDTJVMjpfCeL

    • As stated by the video, the charging port flex ribbon assembly cannot be removed until the front glass is torn down as it’s assembled with the navigator flex in between the glass and LCD.
