How to Adjust TektroAries MD-M300 Mechanical Disc Brakes

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

With mechanical disc brakes, we adjust brakes if our brake lever pulls all the way into the handle bar. This guide will show how to adjust those brakes, specifically TektroAries MD-M300. However, this process should work with other mechanical brakes too. The process is quite easy and anyone can complete the guide without extensive knowledge of bicycles.

  1. QW2DsN1B5K2koqYE

    • You will see a cable attached to an Allen bolt.

  2. yKOHCIVhTNApq1Vf

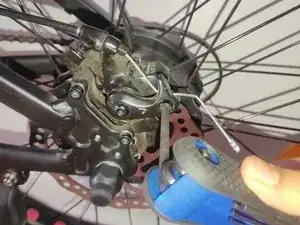

    • Loosen up the bolt with the help of Hex key set.

  3. 3OsmLH5F2jdaGCQZ
    3OsmLH5F2jdaGCQZ
    tkkMmfEqFvcID2oP

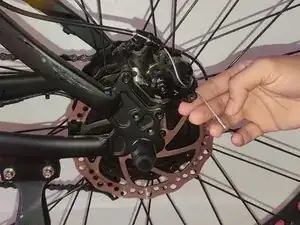

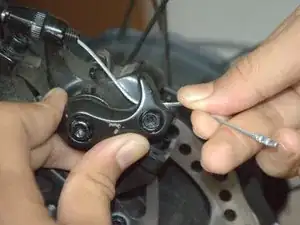

    • Now, pull the cable as much as you can.

  4. XAcVZiyHDogCHLh6

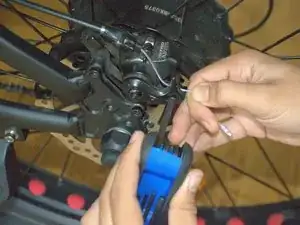

    • Tighten up the bolt while you keep pulling the cable.

  5. MKUNoD3tCRhkBYRI
    MKUNoD3tCRhkBYRI
    Hgmg2YZTyCUHVbBZ

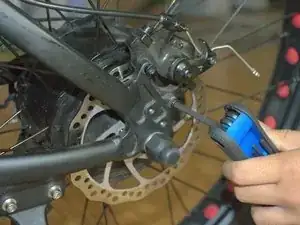

    • To center the caliper for a smooth breaking experience, loosen up the two bolts of the brake situated at top and at bottom.

  6. n4LD1uuVYlOk2CN5

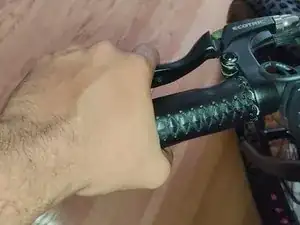

    • Now, put the brake on.

  7. ECQVnJJVGVkLlHfN
    ECQVnJJVGVkLlHfN
    S11alxoRCgKNBkM4
    mca4D4YIhLDuQssU

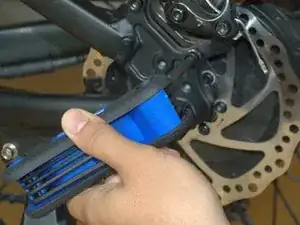

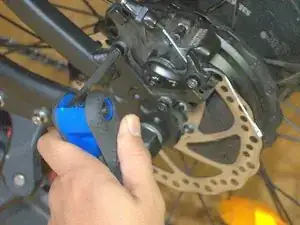

    • While putting the brake on, tighten up both the bolts.

    • You are finished adjusting the brakes!
