How to Build a Waterproof Pressure Sensor

Geschrieben von: Anne George
  • Kommentare: 1
How to Build a Waterproof Pressure Sensor

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

1 - 2 Stunden

Einleitung

This method was developed as a low-cost alternative for waterproof pressure sensors, which can cost hundreds of dollars. This sensor is under $20, and is easy to assemble. We used the STMicroelectronics LPS33HW pressure sensor mounted on an MKI183V1 board.

  1. BoL5K3jgxdFMCDag

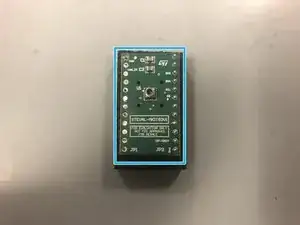

    • This is the pressure sensor that we will be using. It is a STEVAL-MKI183V1 board with a LPS33HW sensor. This board can use either SPI or I2C communications. The data sheets can be accessed here.

    What is the depth rating for this sensor?

    Angie Dixon -

  2. GKK1X1KNQaVWASJZ

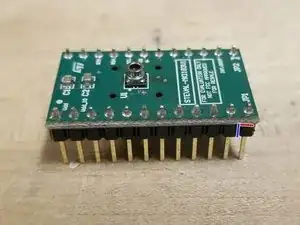

    • The factory pins must be removed and replaced with wire.

    • To do so, first cut along the red line in the photo using wire clipper to separate the pin from the board.

    • Next, clip vertically along the blue line to disconnect the pin from the one next to it.

    • Be very careful while cutting to not damage the board! Rough handling can rip out the copper pad of the through hole, ruining the board.

  3. 6BXjH3PUanMSqPpj

    • The through holes must be cleared of any leftover solder.

    • Place the hot iron on the side of the through hole with the most solder, and the desoldering pump on the other. Once the solder liquefies, press the trigger of the pump to clear the through hole.

    • If you're having trouble with removing solder, it is helpful to use flux dispensing and flux removing pens. Additionally, switching which side the hot iron and the desoldering pump is on helps.

    • Repeat steps 2 and 3 for all of the pins on the board.

  5. TD2PJGOVSXmLxpYr
    TD2PJGOVSXmLxpYr
    tUuUFHCjCAaVARRZ
    HiBhnsLdG3Can6SY

    • Use wire strippers to strip the coating of the 4-core shielded wire.

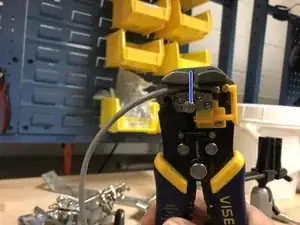

    • Place the wire in the wire stripper. To obtain desired length, align with second jaw or with the blue line in the image.

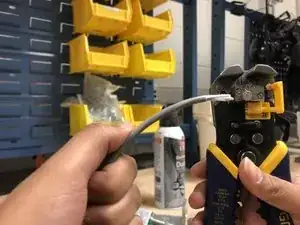

    • Clamp down to remove the wire coating, leaving the 4 wires remaining

    • Pull out the individual wires and repeat the process for each one, exposing the copper

  6. VfHZPHiLMMEExwKM
    VfHZPHiLMMEExwKM
    sJBoNdD14kym1BZO
    lN4dMrI3aImShTK3

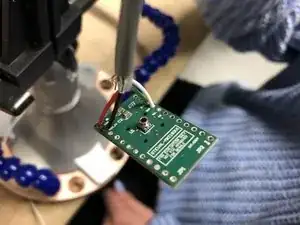

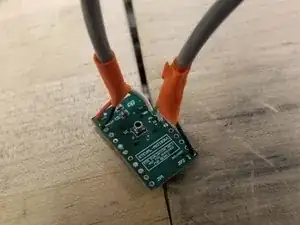

    • A wire is necessary on the ground, SDA, SDO, SCK, CS, Vd and VdIO pins. These can be identified from the top of the board.

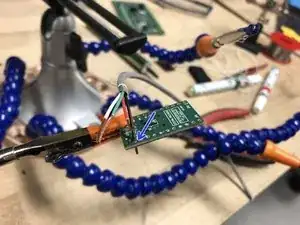

    • Insert the stripped section of the wire into the through hole, and solder into place.

    • Repeat for all seven wires. Electrical tape can cover any exposed shielding if needed.

    • Tip: consider which way you want your wires to run. You can solder them on either side of the board.

  7. LdLpmUVAqOH3gMX2
    LdLpmUVAqOH3gMX2
    JbG2SjfWAeTKQtUS
    lmNmBnfSDgITb2LI

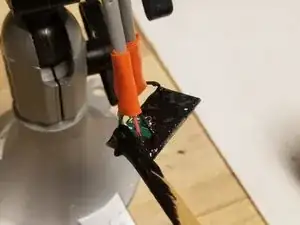

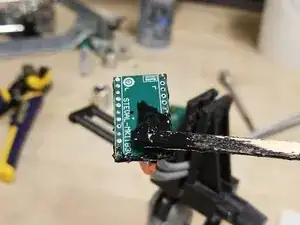

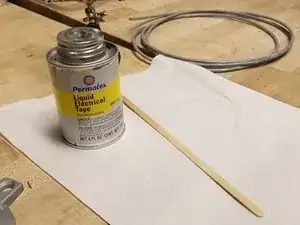

    • Apply a layer of liquid electrical tape to the board (a coffee stir stick is a good applicator).

    • After every layer, wait at least ten minutes before applying another one. Very carefully visually inspect to ensure total coverage.

    • Ensure that you do not cover the sensor itself, as it needs to be exposed in order to measure pressure. A small piece of tape can cover and protect the sensor during application.

  8. 4ZOvXVFNVPJBp5ZH
    4ZOvXVFNVPJBp5ZH
    kZXGw5ScC536vDjE
    LHGNDtqGdSiXKDxE

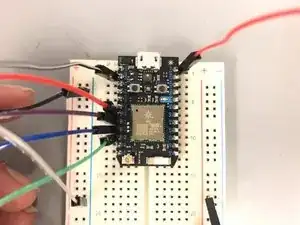

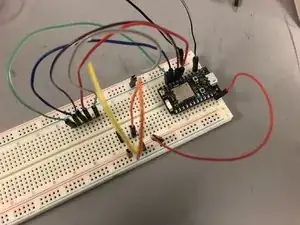

    • Wire a breadboard as shown in the picture to connect the particle photon to the sensor

    • Important connections: GND is connected to negative rail and GND for sensor. The 3V3 is connected to the positive rail and the Vd, VdIO pins on sensor. A5 is connected to SDA, A4 is connected to SDO, A3 is connected to SCK and A2 is connected to CS.

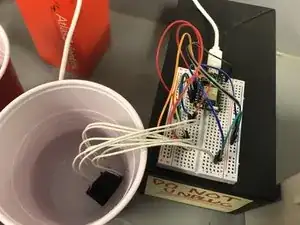

    • Place in a cup of water and monitor outputs to ensure that a water tight seal was achieved!

Abschluss

If you would like to undo your work, simply peel off the liquid electrical tape (this may be easier with a knife or other sharp edge). Then you are free to alter any of the connections.
