How to Change Mortise Lock and its Cylinder

Geschrieben von: Hikmat Guliyev
  • Kommentare: 0
How to Change Mortise Lock and its Cylinder

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 25 Minuten

Einleitung

Use this guide to replace the mortise lock and cylinder of the door lock.

Door lock details tend to deform as a result of long-term use, this can lead to the door lock becoming unusable. Hence, you may want to consider changing details like mortise lock and cylinder in order to return the door lock to a working condition.

  1. IKfwcmQONtemnvK3
    IKfwcmQONtemnvK3
    ph2XmSZulLCqPGYL
    ebLQyJOaoXtRka4H

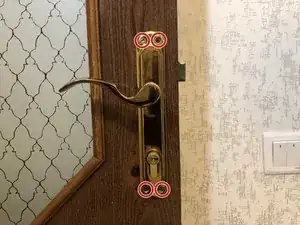

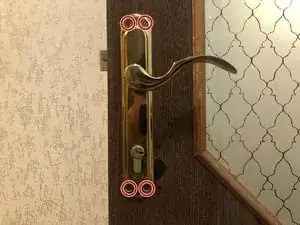

    • Determine the position of the screws on both door handles and the front plate.

  2. neWxfQ3iHWvcxGmy
    neWxfQ3iHWvcxGmy
    eRujYMTJnAqN3rwF

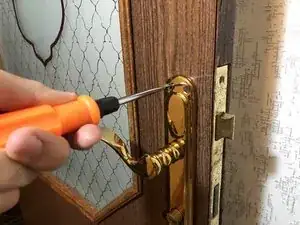

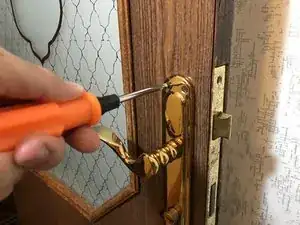

    • Use a flathead screwdriver to remove the eight 6 mm screws on both handles.

  3. L5GPFxScACfxZjvA
    L5GPFxScACfxZjvA
    trmBVZtrPKpVOnwQ
    5WRITPJuoCKXKCGt

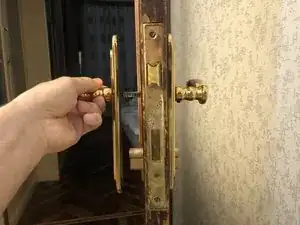

    • Pull out the door handles on both sides of the door.

  4. 3YPPWOoqQXwN3kB6
    3YPPWOoqQXwN3kB6
    SLun6pCBD6wvMvBy
    HMYqMPUBNQGWPWrh

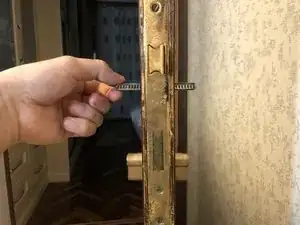

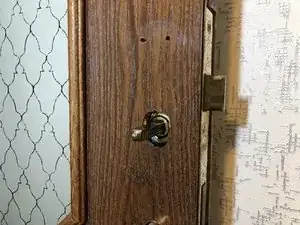

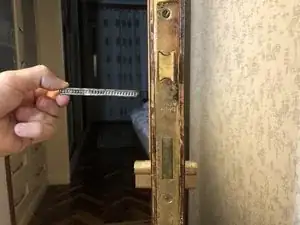

    • Pull out the spindle (the rectangular piece of metal) from the door.

  5. BljVO5gmlQhlOHMj
    BljVO5gmlQhlOHMj
    Oggw5HoDoZJCdhBi
    6DAL3OuOVUKs2Zlf

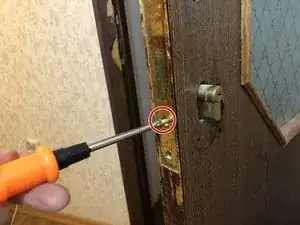

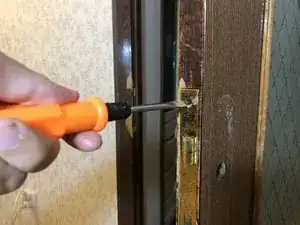

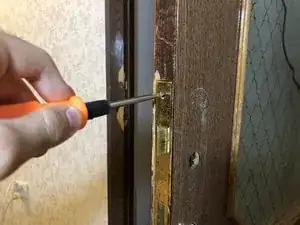

    • Loosen the two 6 mm flathead screws at the top and bottom of the lock using a flathead screwdriver.

    • Remove the third 6 mm Phillips screw in the middle using a Phillips #1 screwdriver.

  6. Vr6iOEUcFE1Vrtad
    Vr6iOEUcFE1Vrtad
    PTeAkkfBPCYodyAI

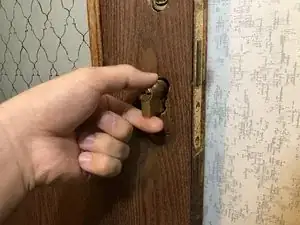

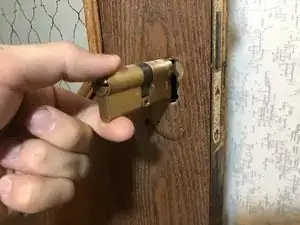

    • Pull the lock cylinder out to either side of the door.

  7. pbLdokeGbIRuTQKM
    pbLdokeGbIRuTQKM
    yThLYtU4cLJKAbDG
    emgfunZ3AqSKVO1B

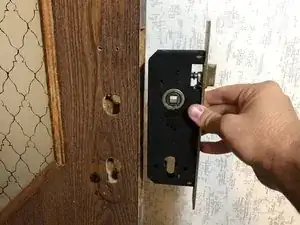

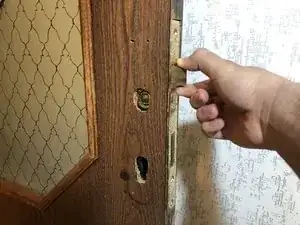

    • Grasp the mortise lock on either side and pull it out from the edge of the door.

Abschluss

To reassemble your device, follow these instructions in reverse order.
