How to Change an Indoor Doorknob Handle

Geschrieben von: Mallory
  • Kommentare: 0
How to Change an Indoor Doorknob Handle

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to replace your old indoor doorknob and assemble a new doorknob. You will need a Phillips head screwdriver as well as a new indoor doorknob set. Both can be bought from any hardware store.

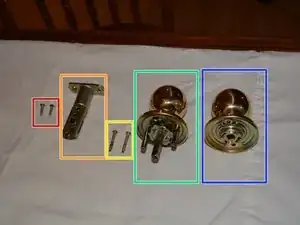

  1. uQjqqtC54uBOtTOX

    • Parts: (in order from left to right)

    • Short Screws

    • Latch mechanism with latch face

    • Long screws

    • Door knob with peg and screw holes (inside of the room)

    • Door knob with screw holes (outside of the room)

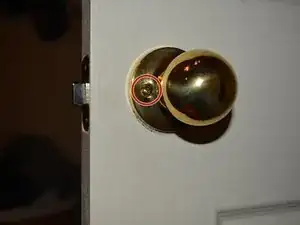

  2. D44aCSTRAOmK2B4m

    • Face the inside of the knob, you should see two Phillips head screws on either side of the central knob.

  3. SuZlPv2Fh2akFrEu

    • Unscrew both long screws.

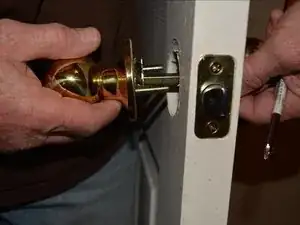

  4. PLQAuQIr6LGlpCpH

    • Remove the door knob on both sides of the door.

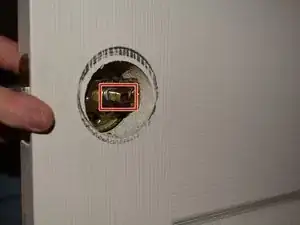

  5. gLXSlbgxgmiVKkVe

    • You will see the latch face plate (the rectangular piece of metal) where the latch of the door knob is located.

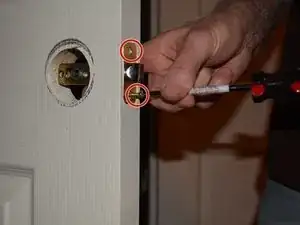

  6. BC4vymGti13tp4fa

    • Unscrew the two short screws on the latch face plate.

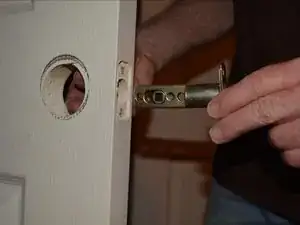

  7. WLe6Fl1GkAxZsgnN

    • Remove the latch face plate and latch mechanism.

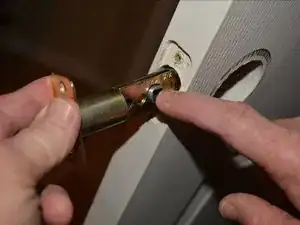

  8. tnBgWyjT1FAM4aRF

    • Push the new latch mechanism with latch face plate into the door.

    • The slanted side of the latch mechanism will be facing the direction that the door closes.

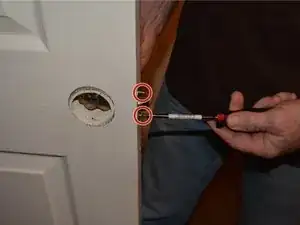

  9. V3LQeOoYCcZJxUXS

    • Screw in both short screws of the latch face plate.

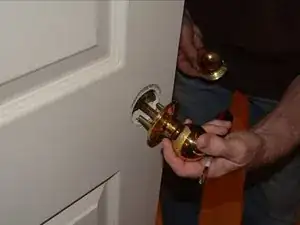

  10. cNSxgsZvTTMTw32p

    • Insert the door knob that goes on the inside of the room, aligning the peg and screw holes with the threaded cylinders of the latch mechanism.

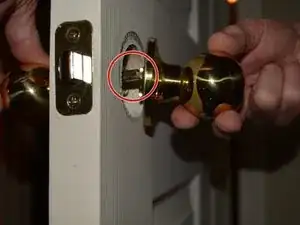

  11. eImGvOdLldAcIQVt

    • Align the door knob that goes on the outside of the room, aligning the peg and screw holes with the threaded cylinders of the latch mechanism.

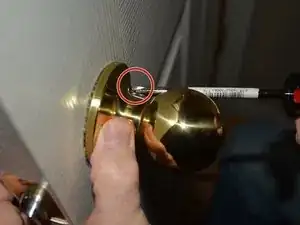

  12. A1TgiVhoNSBMNA6V

    • Screw in both long screws on both sides of the door knob.

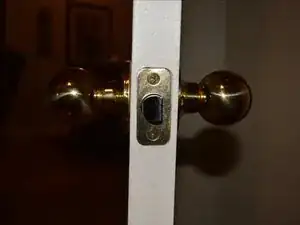

  13. xlY1ju6A6cJpAVMh

    • Turn the door knob to test your work.

Abschluss

To put the old door knob back on or to change to a different door knob repeat steps from the beginning.
