How to Clean Canon PIXMA MP190 Print Head Nozzle

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

Over time debris can build up on the print head nozzle causing irregular flow resulting in poor print quality.

  1. ZKns3ZJYp4uCf5MF

    • The printer needs to be on in order to change the ink cartridges.

  2. XFHUo66EMa4B4UBn
    XFHUo66EMa4B4UBn
    5sDDSPeHkQMug1wE
    PJtGjMvZyNYWCRFA

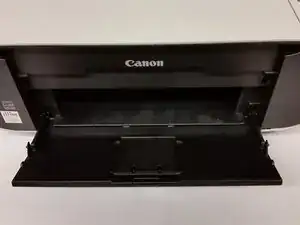

    • To locate the ink cartridges the paper output tray must be in the lowered position.

    • Next lift the scanning unit until the scanning support is vertical.

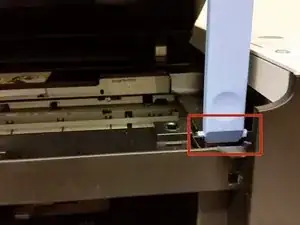

    • Lower the scanning unit until the scanning unit support seats in the scanning unit support slot.

  3. AW3cNM4qHjeOWCwp
    AW3cNM4qHjeOWCwp
    FMvvAwnBPGaTKYoB
    5LBr33mycpUwo4fN

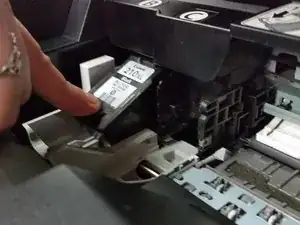

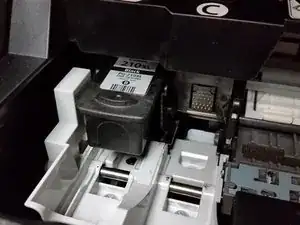

    • Allow the printer to position the ink cartridge carrier into the ink cartridge removal location.

    • Before replacing the ink cartridge ensure the correct ink cartridge is installed.

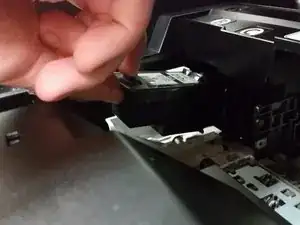

    • Push down on the front edge of the ink cartridge.

    • Observe the angle at which the ink cartridge is removed.

    • Grasp ink cartridge and pull up and out to remove.

  4. D5QxIlKqcRGm1aeT
    D5QxIlKqcRGm1aeT
    uMOKWZ2R4VwpjMZh
    4acUECyVtBXasVSh

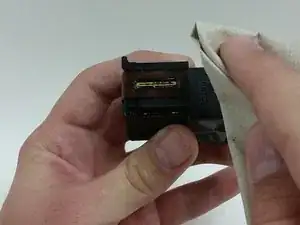

    • Hold the ink cartridge with the ink nozzle facing up. Using a paper towel firmly wipe the entire ink nozzle.

    • Repeat until the nozzle appears free of any ink and debris.

Abschluss

To reassemble your device, follow these instructions in reverse order.
