How to Clean a Dirt Devil Vacuum Cleaner Roller Brush

Geschrieben von: Minji Choi
  • Kommentare: 2
How to Clean a Dirt Devil Vacuum Cleaner Roller Brush

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

This guide is for users who are unfamiliar with disassembling the Dirt Devil Vacuum Cleaner model. This includes the basic steps on how to disassemble the vacuum model, clean the roller brush, and reassemble the vacuum. These simple instructions are for users who have a problem with the vacuum roller brush not spinning and want a quick repair on their own. The special requirement of this guide is to know how to loosen the screw on the bottom plate and tighten the screw.

  1. nTOKocyDCpKTMRSp

    • Lay the vacuum cleaner on the floor so that the bottom of the vacuum is facing upwards.

  2. JqmMUoqWhTnnkEQB

    • Use a Phillips head screwdriver to remove eight screws.

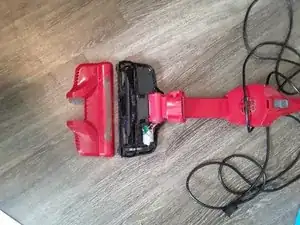

  3. Qpt1LqpUqcWQKEeo

    • Disassemble the vacuum head and pop out your roller brush.

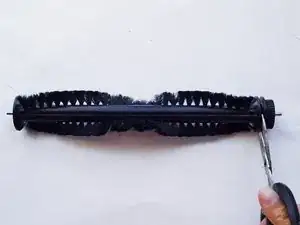

  4. A3xuRyHFrqyVKyBD

    • Cut the ends with scissors.

    • Cover the floor with papers to prevent debris and hair from falling on the ground.

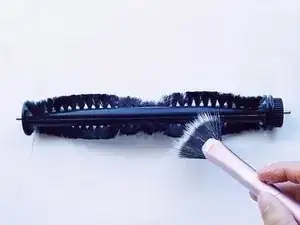

  5. ESVMdnKEDMAF1aKN

    • Use a brush to clean the roller brush.

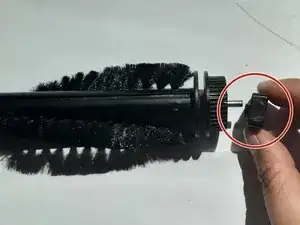

  6. BkitdbpKDuly16ww
    BkitdbpKDuly16ww

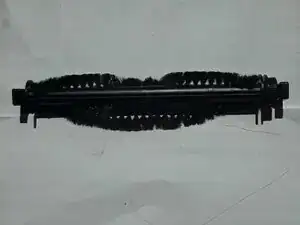

    spPXNoqj5n6Omm5P

    • Put the rectangular part on both sides.

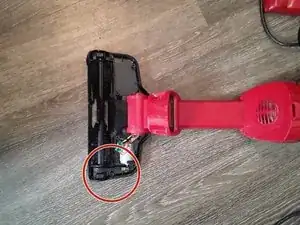

  7. 3AE2cPyKS5Wl5FVG
    3AE2cPyKS5Wl5FVG

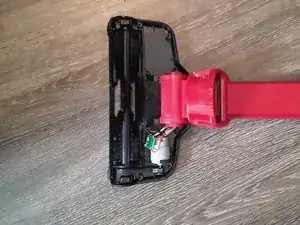

    qducbsWyEEAta4RS

    • Check if the belt is attached.

    • Check if the motor part is well inserted with the belt attached to the roller brush.

    • Make sure the shape of the motor fits to prevent it from falling.

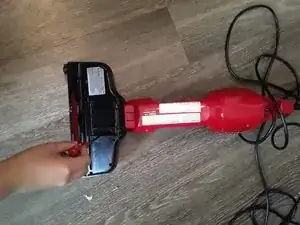

  8. GN1ily1ALSqy5PWe

    • Use your Phillips head screwdriver to screw in all eight of the screws.
