How to Clean a VCR Read Head WIthout a Read Head Cleaner Tape

Geschrieben von: Julian
  • Kommentare: 2
How to Clean a VCR Read Head WIthout a Read Head Cleaner Tape

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 30 Minuten

Einleitung

If you’re watching a favorite old movie on your VCR and the picture is extra blurry or cuts out entirely it could be your VCR’s read heads are dirty and need cleaning. If you don’t have a head cleaning tape this process will yield the same results and may get your VCR back to playing your favorite classic tapes or awkward home videos from yesteryear.

For this guide I will be showing how to do it on my Emerson VCR953. The disassembly may be different on your model, but the cleaning procedure should be the same on all VCR models.

  1. Xv5lE6AfigOI2Ru1
    Xv5lE6AfigOI2Ru1
    CtCugCpAMG4v1f4K

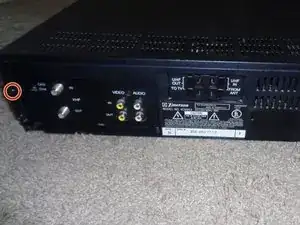

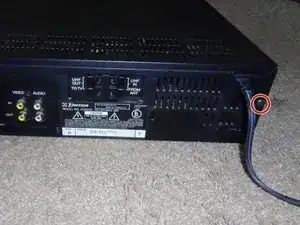

    • Remove the two 1/2" long #2 Philips screws from the rear of the case

  2. eoMTeNEQWLjbnMt5

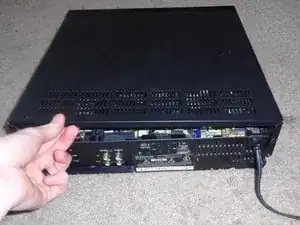

    • Lift up on the back case and slide the top case back until it is free from the rest of the case

  3. LnLSMFNakPBCpdPl

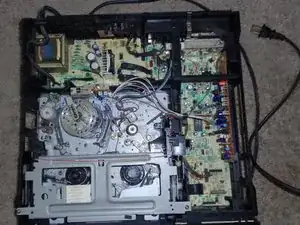

    • You will now have access to all the circuit boards and the top of all mechanical parts.

  4. Be3BrXlTcOLCOecT

    • Once the top shell is off you should have access to the read head drum.

    • Read head drum

  5. 6EXJyEE2RHbQIdPU

    • Cut a strip of plain white copy paper between 1"-2" tall.

    • Soak the middle of the strip in isopropyl alcohol. 70% will work, but the higher the concentration the better. I used 91% because it is what I had.

    • You want to use paper for this and not something like cotton swabs or pads because they can leave fibers behind on the drum that can damage it or your tapes.

  6. iQLYUW2SYLYerBLK

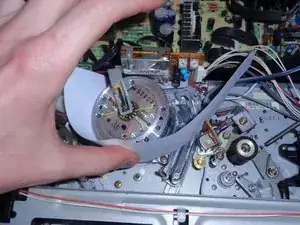

    • Wrap the alcohol soaked paper around the read head drum and hold it in place against the drum with your thumb.

    • With the paper pressed against the drum use your other hand to rotate the drum in either direction.

    • Do this until no more dirt is coming off the drum onto the paper. You may need to flip the paper around to allow it to catch more dirt.

Abschluss

To reassemble your device, follow these instructions in reverse order.
