How to Disconnect an iPad Battery with a Playing Card

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

Follow this guide to disconnect the battery in an iPad with a playing card.

If you're having trouble fitting a battery blocker underneath the battery connector on an iPad's logic board, you can try using a playing card to disconnect the battery instead. This procedure requires cutting a playing card to size.

  1. YlZ2N55Po3tp2iQl
    YlZ2N55Po3tp2iQl
    OcrO1PVX2BTi4CT5

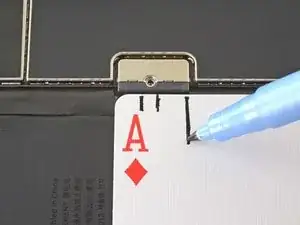

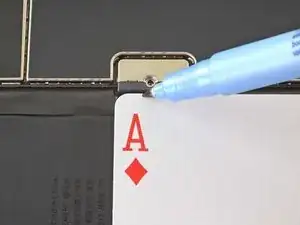

    • Line up the left edge of a playing card with the left edge of the battery connector.

    • Use a pen to mark both sides of the screw hole and the end of the battery connector as shown.

  2. qd2Bk65uADOGhayN
    qd2Bk65uADOGhayN
    S1nYJGnQiJZ1qvuc

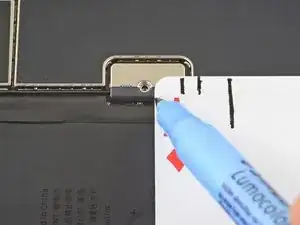

    • Line up the top edge of the card with the top edge of the screw hole.

    • Use a pen to mark the bottom edge of the battery connector.

    • These markings will aid in cutting a slot in the card to clear the screw hole.

  3. rYUqSTEVOGp1s561
    rYUqSTEVOGp1s561
    3WIiamEi6ilcVKff

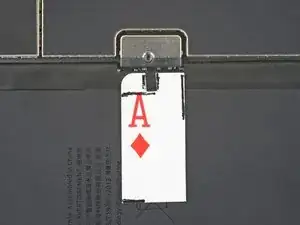

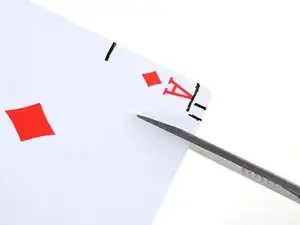

    • The length of the battery blocker is not important, but we recommend it to be about an inch, or the length from the tip of your thumb to its knuckle.

    • Use a pair of scissors to cut out the playing card battery blocker as shown.

  4. bxrMfoiQvfRUXYuq
    bxrMfoiQvfRUXYuq
    3KVTUVQOsTNND3AW
    RIAwbyLQDgE43QFF

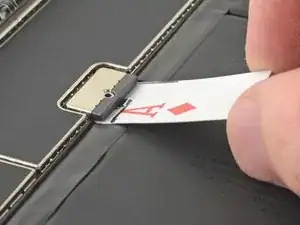

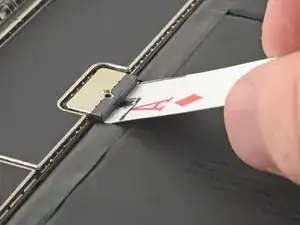

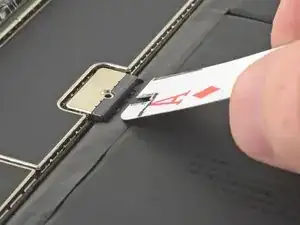

    • Be extremely slow and careful when you isolate the battery using a battery blocker. The battery contacts are easily bent or broken, resulting in irreversible damage.

    • Insert the battery blocker at a 35 degree angle to disconnect the battery.

    • The playing card ideally should slide under the logic board without encountering any blockages. After insertion, it should rest at a 15 degree angle.

    • Leave the battery blocker in place as you work.

Abschluss

To reassemble your device, follow these instructions in reverse order.
