How to Disconnect the Battery in the Samsung Galaxy A32 5G

Geschrieben von: Dominik Schnabelrauch

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 - 35 Minuten

Einleitung

This is a prerequisite guide! This guide is part of another procedure and is not meant to be used alone.

Use this guide to disconnect the battery in the Samsung Galaxy A32 5G.

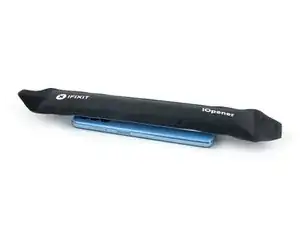

Prepare an iOpener and apply it to the back cover for at least two minutes to loosen the adhesive underneath.
A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

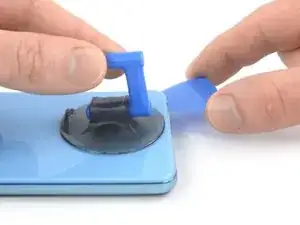

Secure a suction handle to the bottom edge of the back cover, as close to the edge as possible.
If the back cover is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.

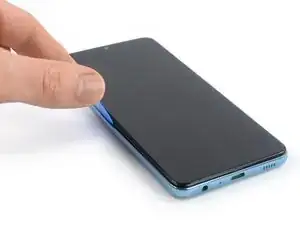

Lift the back cover with the suction handle to create a small gap between the back cover and the frame.
In case you have trouble creating a gap, apply more heat to further soften the adhesive. Follow the iOpener instructions to avoid overheating.

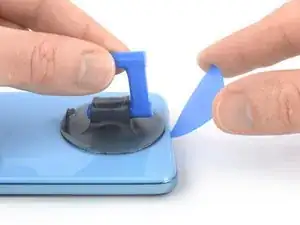

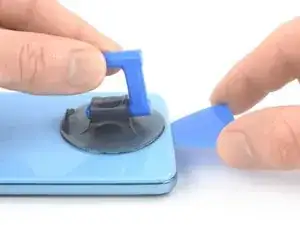

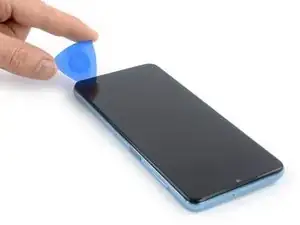

Insert an opening pick into the gap you created.

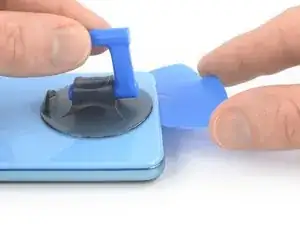

Slide the opening pick to the bottom right corner to slice the adhesive.

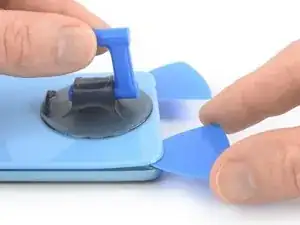

Leave the opening pick in place to prevent the adhesive from resealing.

If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener for one to two minutes to reheat it.

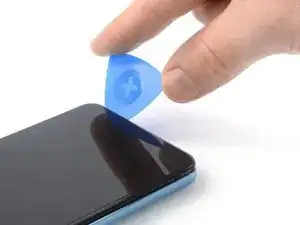

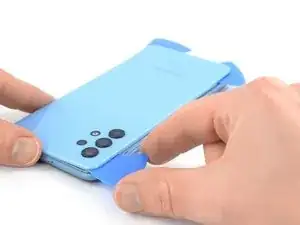

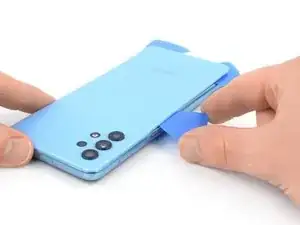

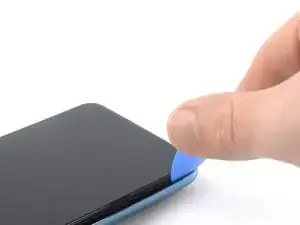

Insert a third opening pick at the bottom left corner of your phone.

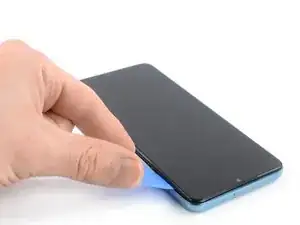

Slide the opening pick along the left edge of your phone to slice the adhesive.
Leave the opening pick in the top left corner to prevent the adhesive from resealing.

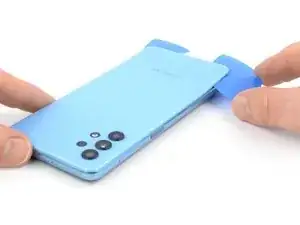

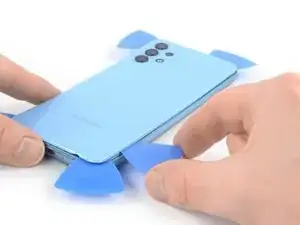

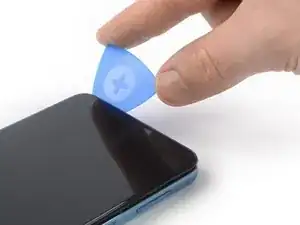

Insert a fourth opening pick underneath the top left corner of your phone.
Slide the opening pick along the top edge to slice the adhesive.
Leave the opening pick in the top right corner to prevent the adhesive from resealing.

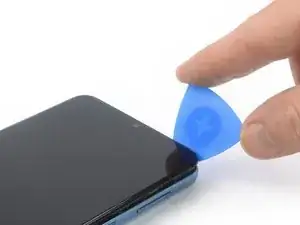

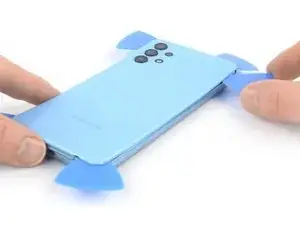

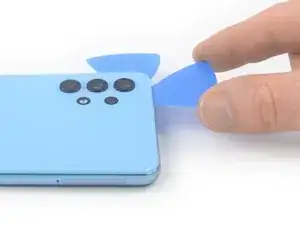

Insert a fifth opening pick underneath the top right corner.
Slide the opening pick along the right edge of the back cover to slice the remaining adhesive.

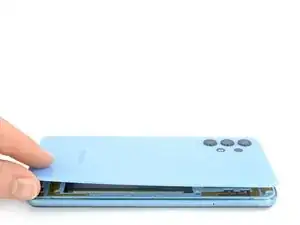

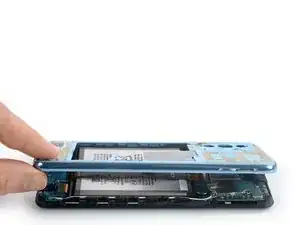

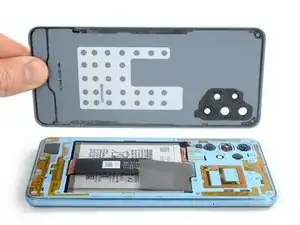

Remove the back cover.
Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).
Secure the new back cover with pre-cut adhesive or double-sided adhesive tape. After installing the back cover, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond—a stack of heavy books works well.

Insert a SIM card eject tool, a SIM eject bit, or a straightened paper clip into the hole on the SIM tray located at the left edge of the phone.
Press directly into the hole to eject the SIM card tray.

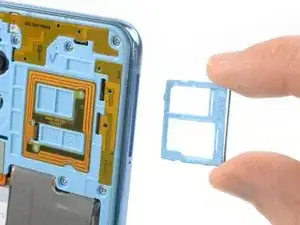

Remove the SIM card tray.

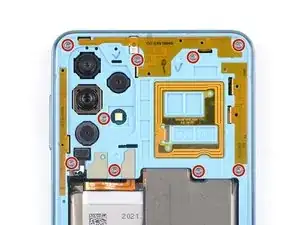

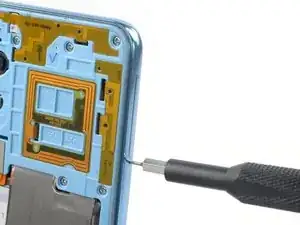

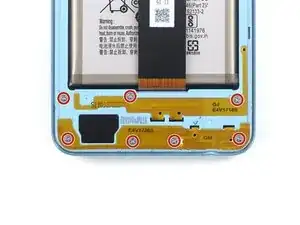

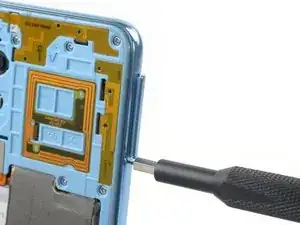

Use a Phillips screwdriver to remove the sixteen 4.1 mm-long screws securing the midframe.

It would be useful to show a picture,here, highlighting the 7 screws below the battery that also require removal.

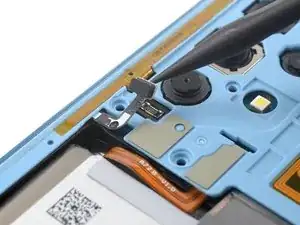

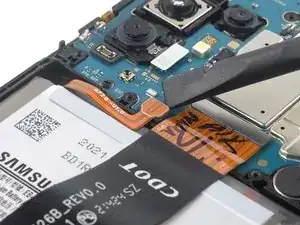

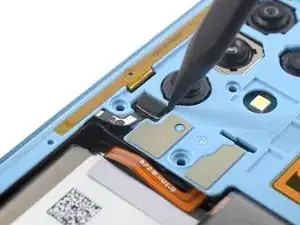

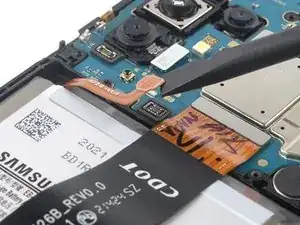

Use a spudger to disconnect the power and volume button flex cable by prying the connector straight up from its socket.

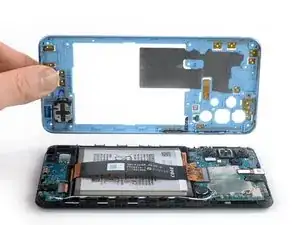

The midframe of the Samsung Galaxy A32 5G is held in place by plastic clips.

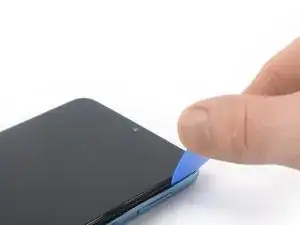

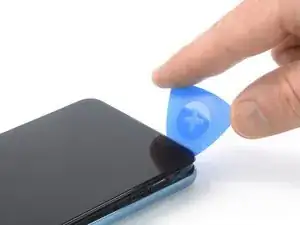

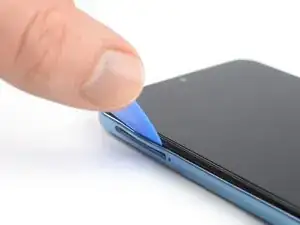

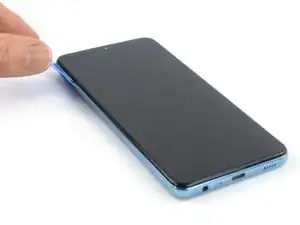

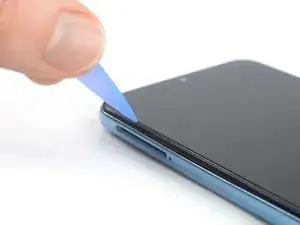

Insert an opening pick between the midframe and front panel assembly on the left edge of the phone where the SIM tray slot is located.

The plastic clips of the midframe are sitting in place tightly. Releasing them might require some force.

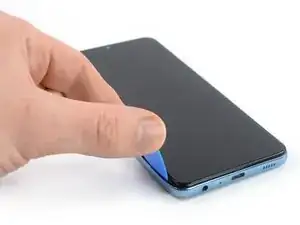

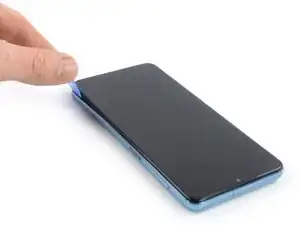

Slide the opening pick along the left edge of the phone to release the plastic clips.
