This is a prerequisite guide! This guide is part of another procedure and is not meant to be used alone.
Use this guide to disconnect the battery in the Samsung Galaxy A53 5G.
-
-

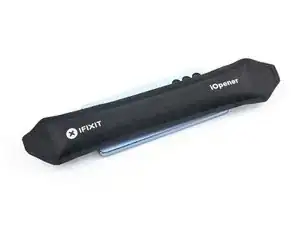

Prepare an iOpener and apply it to the back cover for at least two minutes to loosen the adhesive underneath.
-
-
-

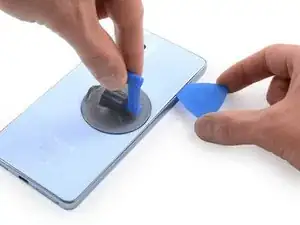

Secure a suction handle to the right edge of the back cover, as close to the edge as possible.
-

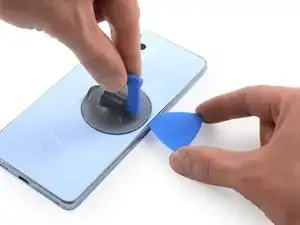

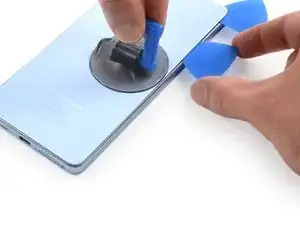

Lift the back cover with the suction handle to create a small gap between the back cover and the frame.
-

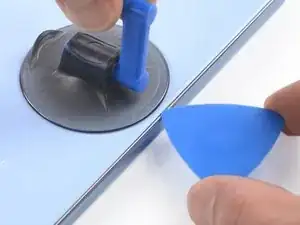

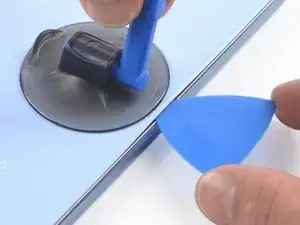

Insert an opening pick into the gap you created.
-
-
-
Slide the opening pick to the top right corner to slice the adhesive.
-
Leave the opening pick in place to prevent the adhesive from resealing.
-
-
-

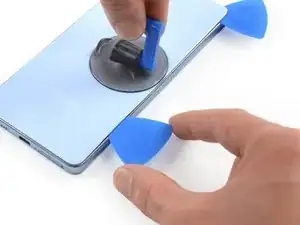

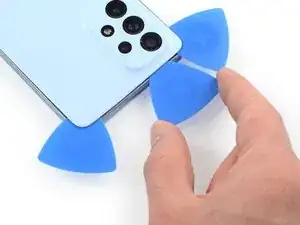

Insert a second opening pick at the top right edge of your phone.
-
Slide the opening pick to the bottom right corner to slice the adhesive.
-
Leave the opening picks in place to prevent the adhesive from resealing.
-
-
-

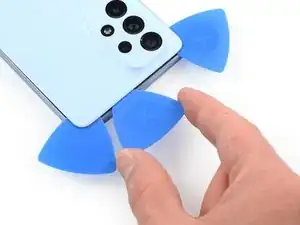

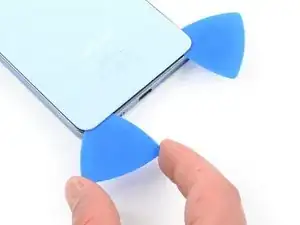

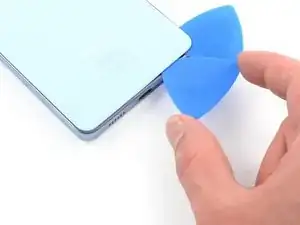

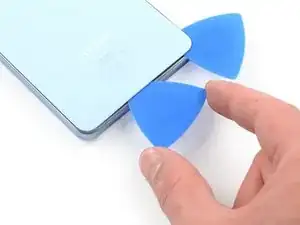

Insert a third opening pick at the bottom right corner of your phone.
-
Slide the opening pick along the bottom edge of your phone to slice the adhesive.
-
Leave the opening pick in the bottom left corner to prevent the adhesive from resealing.
-
-
-

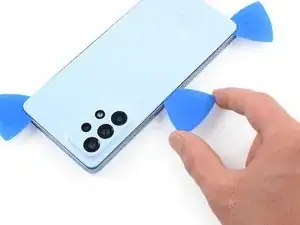

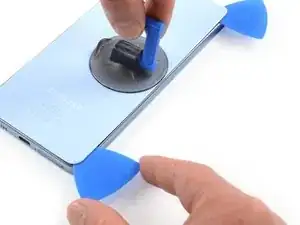

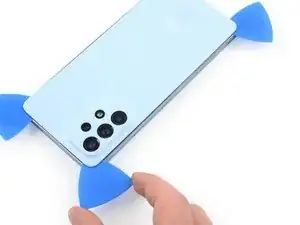

Insert a fourth opening pick at the bottom left corner of your phone.
-
Slide the opening pick along the left edge to slice the adhesive.
-
Leave the opening pick in the top left corner to prevent the adhesive from resealing.
-
-
-

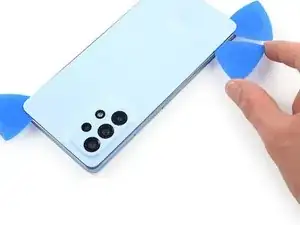

Insert a fifth opening pick at the top left corner.
-

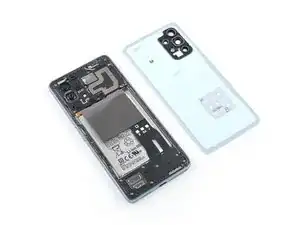

Slide the opening pick along the top edge of the back cover to slice the remaining adhesive.
-
-
-

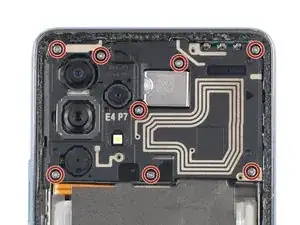

Use a Phillips screwdriver to remove the eight 3.9 mm-long screws securing the motherboard cover.
-
-
-

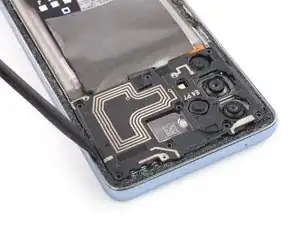

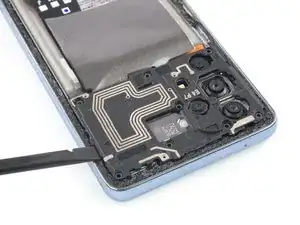

Insert the flat end of an spudger into the gap between the frame and the motherboard cover on the right edge.
-

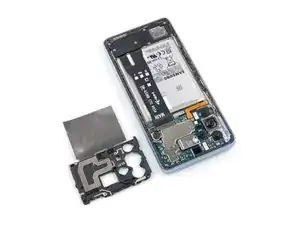

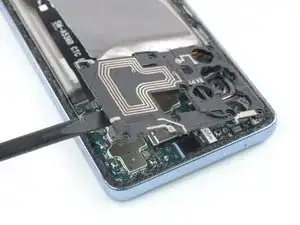

Use the spudger to pry up the motherboard cover.
-
-
-

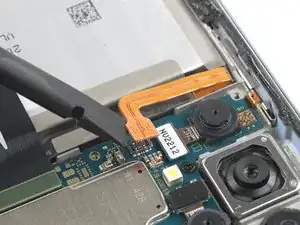

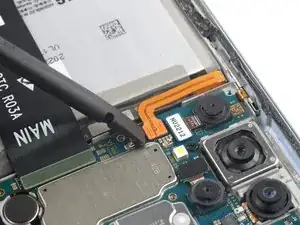

Use a spudger to disconnect the battery cable by prying the connector straight up from its socket.
-
To reassemble your device, follow these instructions in reverse order.
