How to Disconnect the Battery in the Xiaomi Mi 11 Lite

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

This is a prerequisite guide! This guide is part of another procedure and is not meant to be used alone.

Use this guide to disconnect the battery in the Xiaomi Mi 11 Lite.

  1. nNlSwndqrhTUxwGq

    • Prepare an iOpener and apply it to the rear glass for at least two minutes to loosen the adhesive underneath.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  2. IYBVUee2KUy5MaT3
    IYBVUee2KUy5MaT3
    ZBgdCJxNelWmVhiB
    kLoDWXQIueQK6Y1c

    • Secure a suction handle to the right edge of the rear glass, as close to the edge as possible.

    • If the rear glass is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.

    • Lift the rear glass with the suction handle to create a small gap between the rear glass and the frame.

    • If you have trouble creating a gap, apply more heat to further soften the adhesive. Follow the iOpener instructions to avoid overheating.

    • Insert an opening pick into the gap you created.

    • Slide the opening pick to the top right corner to slice the adhesive.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  3. RmZlXFqOiEMqWeRl
    RmZlXFqOiEMqWeRl
    Hj6N5CXPtm3cHpE4
    CcZioSQbWciTsNEm

    • Insert a second opening pick underneath the top right corner of your phone.

    • Slide the opening pick along the right edge to slice the adhesive.

    • Leave the opening pick in the bottom right corner to prevent the adhesive from resealing.

  4. VDnJSCDDLFLR5XtX
    VDnJSCDDLFLR5XtX
    rbl6cxhISZcIsKnu
    uZUtkUSLTsbuahRp

    • If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener for one to two minutes to reheat it.

    • Insert a third opening pick at the bottom right corner of your phone.

    • Slide the opening pick along the bottom edge to slice the adhesive.

    • Leave the opening pick in the bottom left corner to prevent the adhesive from resealing.

  5. 3PJEAjLqXVausAyD
    3PJEAjLqXVausAyD
    NWuLOl3NeOyCq2Lx
    NNYCUWOYhTr3NYOF

    • Insert a fourth opening pick underneath the bottom left corner of your phone.

    • Slide the opening pick along the left edge to slice the adhesive.

    • Leave the opening pick in the top left corner to prevent the adhesive from resealing.

  6. hSVSGppC3uWFvMeg
    hSVSGppC3uWFvMeg
    ofNEBjACjsIGVUIF
    AitKgiothZCpAx5j

    • Insert a fifth opening pick underneath the top left corner.

    • Slide the opening pick along the top edge of the rear glass to slice the remaining adhesive.

  7. CRRdicrJWvmbIFMZ

    • Remove the rear glass.

    • Secure the new rear glass with pre-cut adhesive or double-sided adhesive tape. After installing the rear glass, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond—a stack of heavy books works well.

  8. lfxnEZhIkh21UPXG

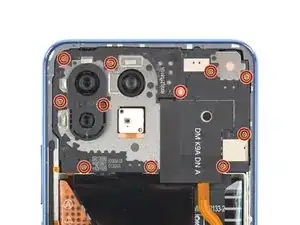

    • Use a Phillips screwdriver to remove the eleven 3.4 mm-long screws securing the motherboard cover.

  9. 63EgaoEgrGEbqf1x
    63EgaoEgrGEbqf1x
    ktYRqSYa2yOFgQED
    DnqufpiB3JxSyG1Y

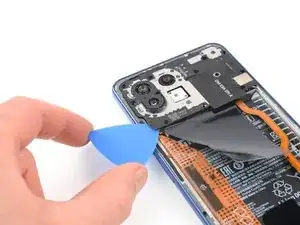

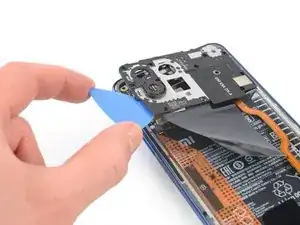

    • Insert the tip of an opening pick underneath the left edge of the motherboard cover.

    • Use the opening pick to pry up the motherboard cover.

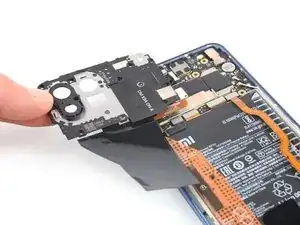

    • Remove the motherboard cover.

  10. jCaBTRNSGAOqWl3V
    jCaBTRNSGAOqWl3V
    KgVrXYjJVe5fpHeh

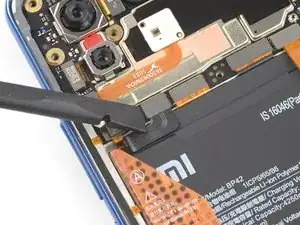

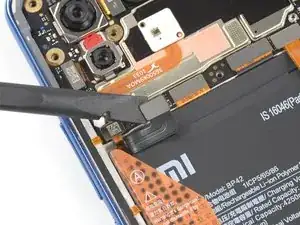

    • Use a spudger to disconnect the battery cable by prying the connector straight up from its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
