How to Fix Keurig K75 Platinum Brewing System Water Pump Leak

Geschrieben von: Kristen Temnyk
  • Kommentare: 0
How to Fix Keurig K75 Platinum Brewing System Water Pump Leak

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

Water leaks for the Keurig B70 Brewing System are sometimes caused by an internal disconnection of the water pump and reservoir. Use this guide to open the Keurig and reseat the water pump.

  1. QaoEM4IBJEYluKC5
    QaoEM4IBJEYluKC5
    BWGIdx5XUSx2Wjsv

    • Before beginning the repair, turn off the brewer and disconnect it from any power source.

    • Move the brewer so that the metal baseplate is easily accessible.

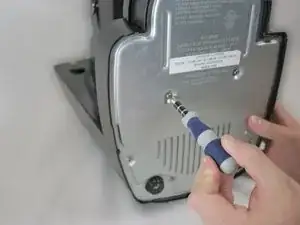

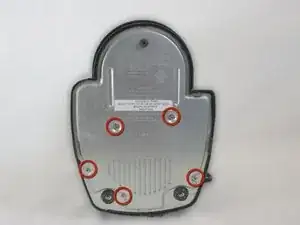

    • Remove the five silver 4 mm Phillips #2 screws from the baseplate.

  2. EUOHOyO25dEsIqlC
    EUOHOyO25dEsIqlC
    5okNjjR1iVTD5eDn

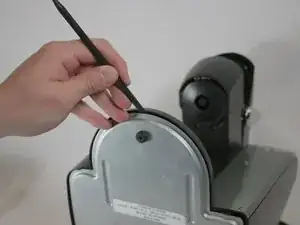

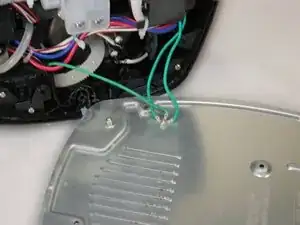

    • Using a spudger, gently pry the metal baseplate from the brewer.

    • Gently set down the baseplate.

  3. imqKyePSsLIC5O4a
    imqKyePSsLIC5O4a
    JsdLw31kqKD3lfrj

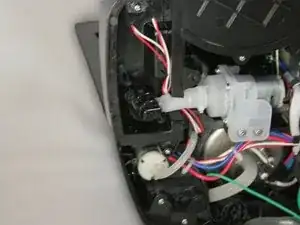

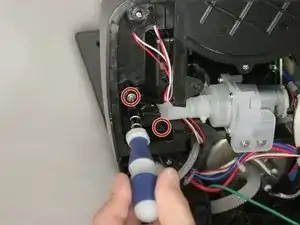

    • Remove the two silver 4mm Phillips #2 screws that hold the water pump in place.

  4. CPYwWrqo2qCNC2IP

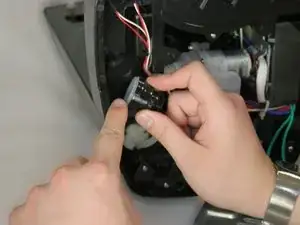

    • Realign the rubber gasket of the water pump to create a tight fit.

Abschluss

To reassemble your device, follow these instructions in reverse order.
