Einleitung

We are currently living in unprecedented times where technology and remote communication is more important than ever. Webcams have almost become a must-have for everyday life, mostly for students. Many people always look for the cheaper and more affordable option, which sometimes isn’t the most sustainable choice. This guide is here to help you with just that.

The Anivia 1080p Webcam is a great and affordable option; however, it can come with small, but easily fixable, errors. This guide will show you how to repair a loose connecter that can cause a flickering display and a spotty image.

You will only need four items for this fix: solder, a soldering iron, a screwdriver, and a wedging tool.

With this guide, you can have your webcam up and running in a matter of minutes so you can get back to work or school quickly, saving you the time you would spend waiting for a new webcam to arrive!

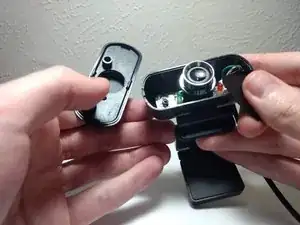

  1. NTTSggh5gn4Ow5UT
    NTTSggh5gn4Ow5UT
    JAWKGJRPQPYZhH2x
    nQMNEgjUs2PFiYpv

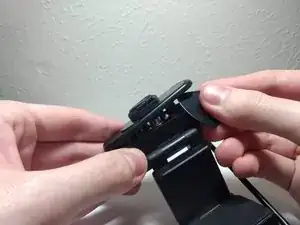

    • Pry open the face plate of the webcam using the iFixit opening pick or another safe tool, and set it aside.

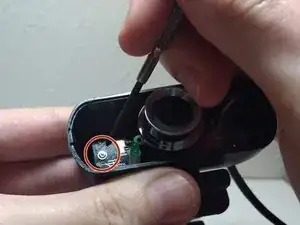

  2. R4SFhGeUgUfw3FIs
    R4SFhGeUgUfw3FIs
    IRQx14tIwOOK16Do
    kTUUnbTeCmhhsA3k

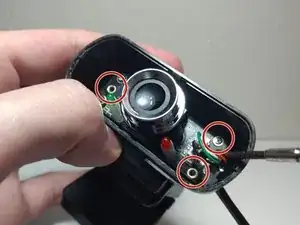

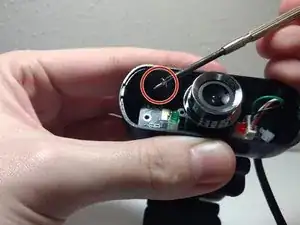

    • Remove the three main screws using a Phillips screwdriver while carefully holding the camera motherboard in place.

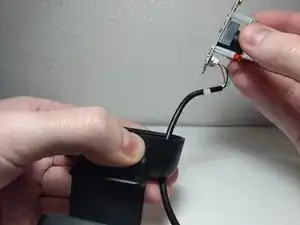

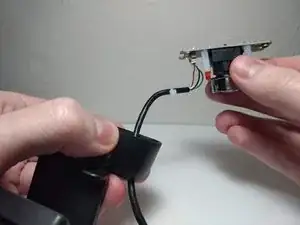

  3. wPyyF5aDxBdZfcwW
    wPyyF5aDxBdZfcwW
    FLnOVwQrxSNvRyUK
    bkkUALuQxYiGvvDd

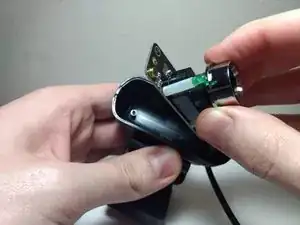

    • Remove the camera and motherboard from the casing carefully.

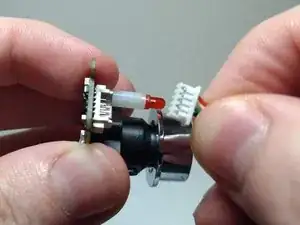

  4. B41J11m4GQZKoqOS
    B41J11m4GQZKoqOS
    YZXi4CuMePKnJPR3
    HTKpRfV25ihFyNTi
    • Detach the cable from the connecter on the motherboard.

    • Pull from the plastic as to not damage any of the wires.

  5. KniBX1lWuryNiCDM
    KniBX1lWuryNiCDM
    eCqK5LxKljHhbKkW
    hKBjNV6gLybS2M3V

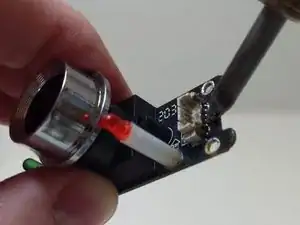

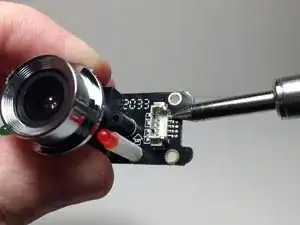

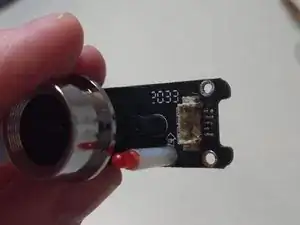

    • Identify where the connector is loose and solder the piece back into place.

    • Use only as little solder as needed to keep functionality in tact.

    • Caution: The soldering iron is hot and should be handled with care.

  6. KdVkkD2pTqnRxXOB
    KdVkkD2pTqnRxXOB
    fw3sW1bS4GoyGUik

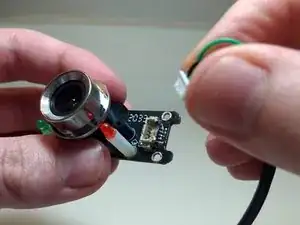

    • Reattach the cable to the connector.

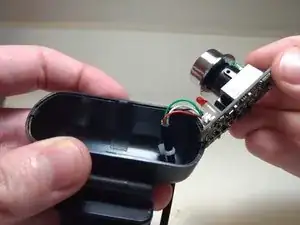

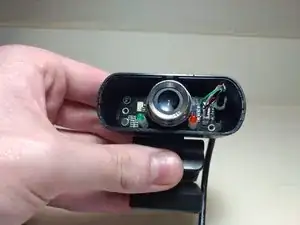

  7. siQShPS2vF6agXNf
    siQShPS2vF6agXNf
    KFrkGKqgClIOt5uq
    • Place the motherboard and camera back into the casing.

  8. ZSbkNVCQWNqeRgQO
    ZSbkNVCQWNqeRgQO
    qeoW3UCiFkFn62iI
    qFFgckeDZCtsYQDj

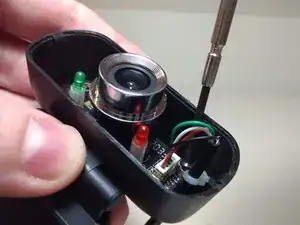

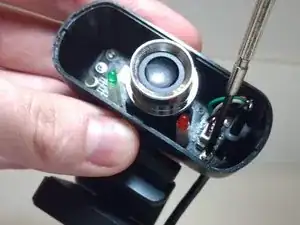

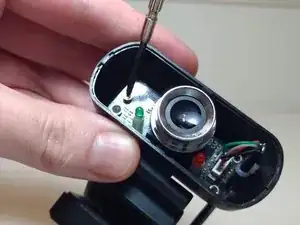

    • Screw the camera and motherboard back into place.

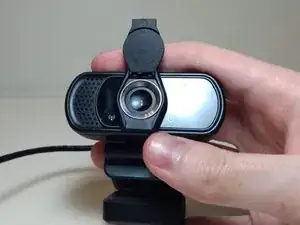

  9. NnNNyrDiS5mBZIZD
    NnNNyrDiS5mBZIZD
    jedQQhKLP1NdY2Kn
    wYakMYWhtPnHJgF1

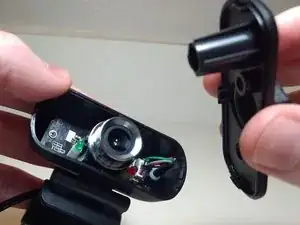

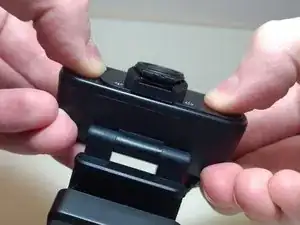

    • Snap the faceplate covering back into place.
