Einleitung

If your Children's Four-Wheeled Toy Kick Scooter (Velocity Scooter 22, or any kick scooter with two front wheels) isn’t balanced and falls on one of its sides, that means the spring inside the scooter was bent. Therefore, this step-by-step guide will show you how to fix your wonky-wheeled scooter to its proper form.

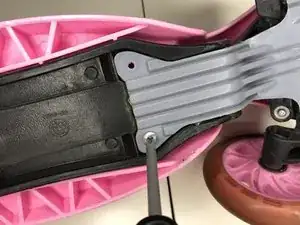

  1. XOxXgPAHybgJLaCG
    XOxXgPAHybgJLaCG
    TBQQBynbJwJ4o3GC
    hYqWeIfljbHV4aDm

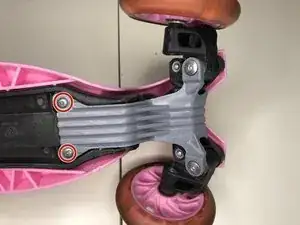

    • Remove the two bottom 16 mm pan head screws using a Phillips #1 screwdriver.

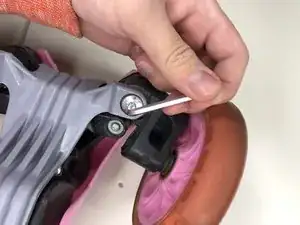

  2. hleb3R1cURIhoKDU
    hleb3R1cURIhoKDU
    qTUbQYvS4CF2fqjk
    Ju5rLMl4ttQU1VyU

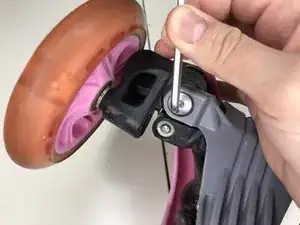

    • Remove the two 12 mm button head screws on top using a 4 mm Allen wrench.

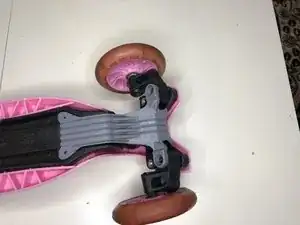

  3. 4Ogwk4EgOWC3XcS6
    4Ogwk4EgOWC3XcS6
    lKUNqIR3XMEhlFKS
    FMOhqGLbM5SsUo2P

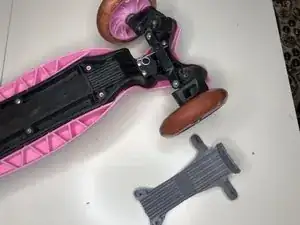

    • Remove the plastic case from the base of the scooter.

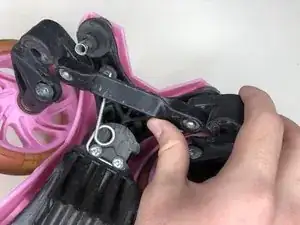

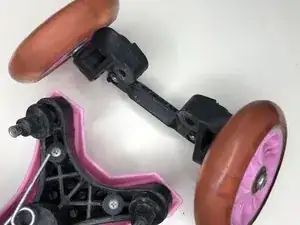

  4. LuZSQi1UY2ohFR2R
    LuZSQi1UY2ohFR2R
    3mt6uVcMPgjOs1L1
    NQkyBOuEGe3HTwsw

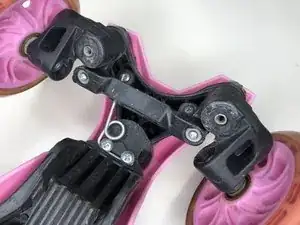

    • Carefully pull the sides of the wheels up and remove them from the spring.

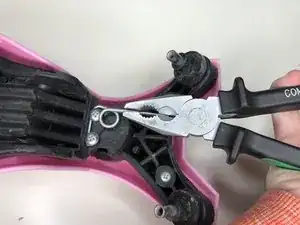

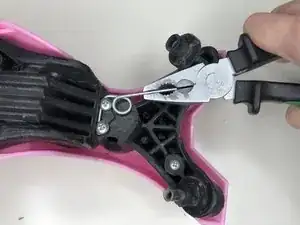

  5. knTBOcrdeZVmDTMF
    knTBOcrdeZVmDTMF
    gFOsnrOS3dZcEO4V
    bPFNPFmoYw4MG3de

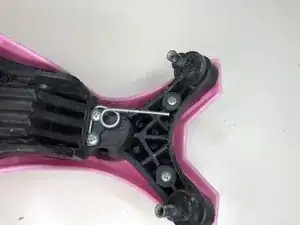

    • Grab the spring with combination pliers and bend it into a straight position.

    • Don't bend the spring too much as it could snap and replacement would be needed.

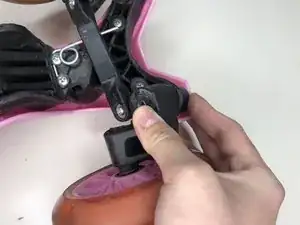

  6. AXnQEDUaQDyVwZIN
    AXnQEDUaQDyVwZIN
    MayQYkMRL3MrgmUA
    fCEtCvBSGHXAavZF

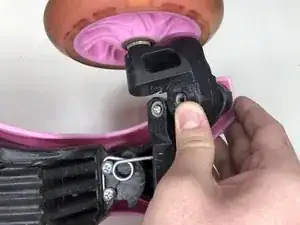

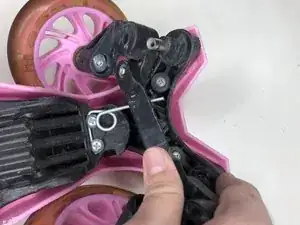

    • Insert the spring into the center section of the wheels.

    • Slide the two rings on the sides of the wheels into the two rods.

  7. JAmB3ZfMMeLAUn1A
    JAmB3ZfMMeLAUn1A
    dMcl4NDDYlL5gGsh
    UcAKWyFlb3EBrKoN

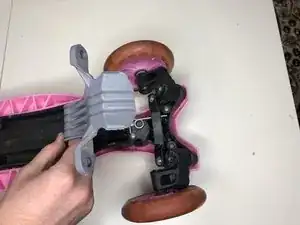

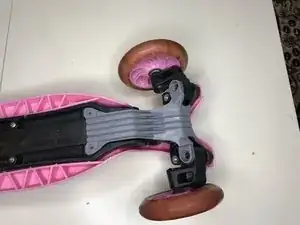

    • Insert the plastic case back into its original position.

  8. cMFuRrIYspkp4KUA
    cMFuRrIYspkp4KUA
    UH1rkRCwAv2WUCLF
    Pu1mkZTIhY6XOypj

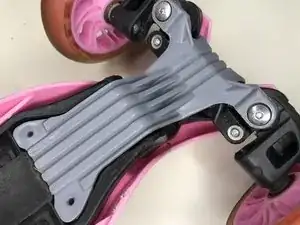

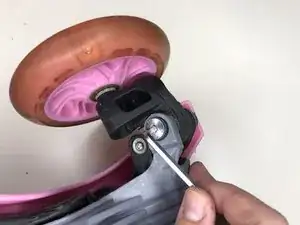

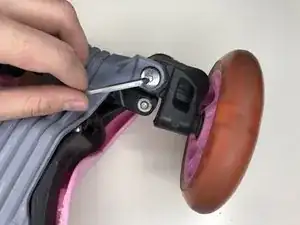

    • Insert and tighten the two 12 mm button head screws on top using a 4 mm Allen wrench.

  9. QBSXQ1NcSORdFCQX
    QBSXQ1NcSORdFCQX
    VqEyGo6KdOiTHRMw
    dPUMCPL1Nadlcosq

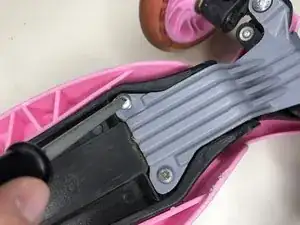

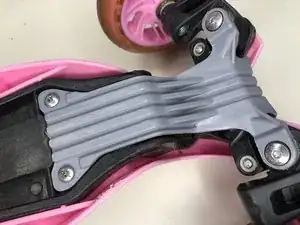

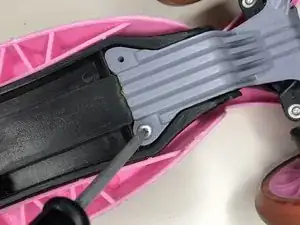

    • Replace the two bottom 16 mm pan head screws using a Phillips #1 screwdriver.
