The Letter Buttons (A,B,X,Y) can become jammed or unresponsive over time on Xbox One controllers. I made this guide to help with this problem and avoid paying for new controllers (Because let's be real, Xbox one controllers are pricey as hell).
Werkzeuge
-
-
Using a prying tool, unclip and remove the back parts of each handle.
-
Remove the battery in the center of the back panel.
-
-
-

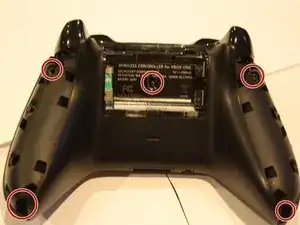

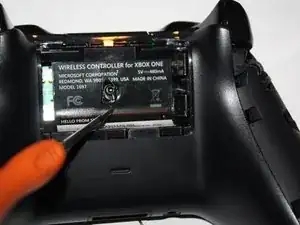

Using a TR9 Torx screwdriver, remove the top and bottom screw of each handle and the one screw within the battery area (five screws total).
-
Remove the front and back plate of the controller by pulling them apart.
-
-
-

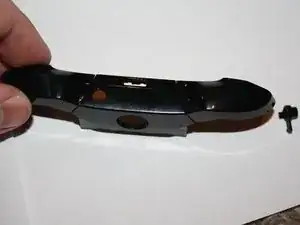

Using your hands or a prying tool, gently remove the top bumper strip from the top of the controller.
-
-
-

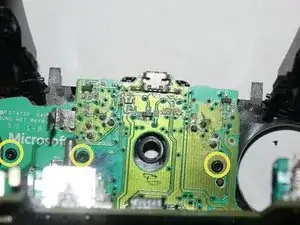

Using a TR6 Torx screwdriver, remove the two screws on the top motherboard and unclip it.
-

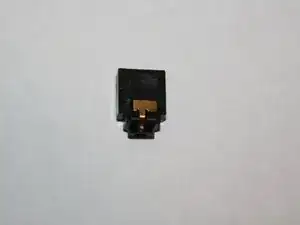

After unclipping the top motherboard, the 3.5 mm audio jack piece will fall out. Set this aside for the reassembly of the controller.
-
-
-

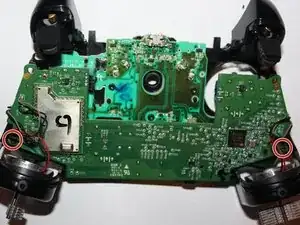

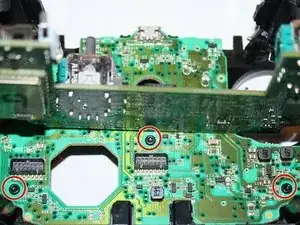

Using the TR6 Torx screwdriver, remove the six screws on the bottom motherboard.
-
Carefully remove the motherboard from the controller.
-
-
-

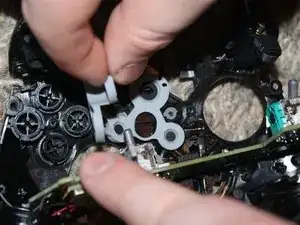

Remove the rubber button cover holding the buttons in the controller.
-
Once the cover has been removed, flip the controller over to dump out all the plastic buttons.
-
Set aside all the buttons as they will be important for reassembly.
-
-
-
While holding a q-tip, gently pour a small amount of rubbing alcohol onto the q-tip.
-

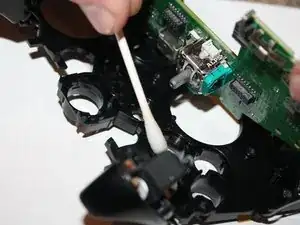

Use the the q-tip to rub the inside where the buttons go in order to clean out any debris or dirt that might be in there.
-
To reassemble your device, do the opposite of what you did to take it apart. I'm not gonna show you how to put it back together.
