Einleitung

This Fast Fix guide is a step by step instruction manual on how to repair an insecure leg rest on a Wolf Warriors gaming chair. With excessive use, leg rests may become wobbly and unstable. This guide outlines how to fix a Wolf Warriors gaming chair leg rest for ultimate comfort.

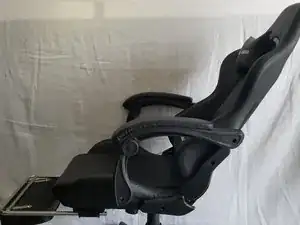

  1. AUwCdTuAX3IMs2wx
    AUwCdTuAX3IMs2wx
    gF4La6ZHxYcTgJx6
    • Lean back the chair and extend the leg rest completely.

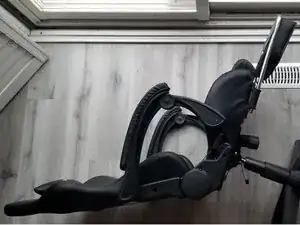

  2. XZlEx3OsR62bPV1K
    • Lay the chair on its side on the ground to allow easier access to the required hex screws and blocker screw.

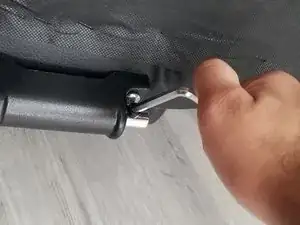

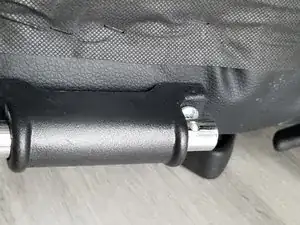

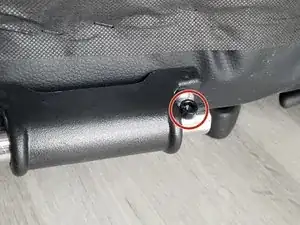

  3. JLjKqwyDhJXoLvAT
    JLjKqwyDhJXoLvAT
    5oQSbP1YtbU2qr4f
    fZsccBovWtyCePZO
    • Remove the 3 mm blocker screw using a 3mm Allen wrench/hex key.

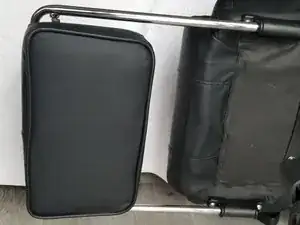

  4. NNYyboPyoFjEnpEm
    • Slide the leg rest out of the base.

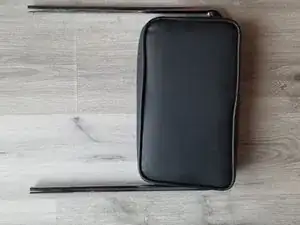

  5. HnwYgoCuScP1sNmx
    HnwYgoCuScP1sNmx

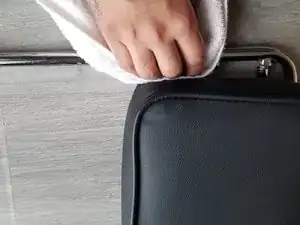

    gPMXKGyqARhqHVqt
    • Place the leg rest on a flat surface.

    • Wipe clean the sliding legs using a clean cloth to ensure the sliding mechanism has no issues.

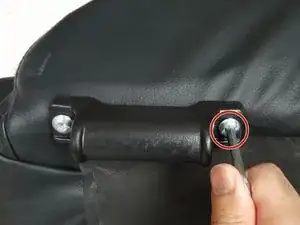

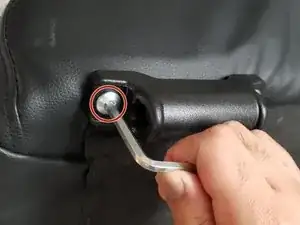

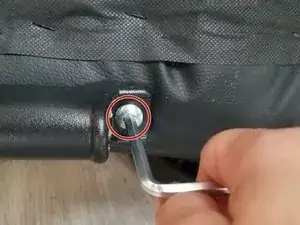

  6. 5mqSMHyHKlivHHLa
    5mqSMHyHKlivHHLa
    HJCydw6Ql2swBYwx
    eRfMy2RYWRbB1OHg
    • Tighten the four 25 mm hex screws located at the bottom of the chair using the 3 mm Allen key.

    • Be careful not to over tighten the 25 mm hex screws. This can cause the screw to become free from the base.

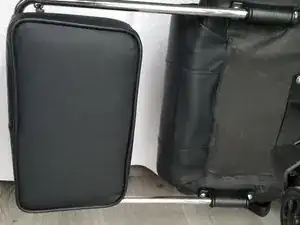

  7. FNtC5ZmXjVv2PgAK
    • Slide the leg rest back into the base.

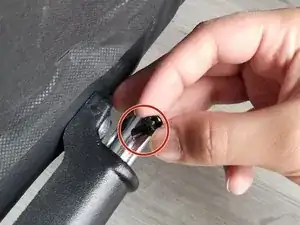

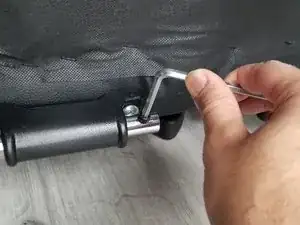

  8. FiTHNYiGCgk1FJYc
    FiTHNYiGCgk1FJYc
    Qw1S6jRaJjfXMrvh
    • Screw the 3 mm blocker screw back in.

    • Flip your chair back up and enjoy your sturdy leg rest!

Abschluss

To reassemble your device, follow these instructions in reverse order.
