How to Fix an Air Tech 2K0 Aquarium Pump

Geschrieben von: Madeline Kovach
  • Kommentare: 0
How to Fix an Air Tech 2K0 Aquarium Pump

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

3 Stunden

Einleitung

For the fellow fish lovers and aquarium owners, this guide can be used to fix an Air Tech 2K0 Aquarium Pump. Ideally, this pump is used in small ten gallon or less tanks and is great for Betta fish that do not like strong currents.

Over time, these air pumps suffer from wear and tear from use. The rubber diaphragm found inside that vibrates and compresses air through the tubing line can break down, ultimately causing the absence of bubbles in the tank even though the pump itself is still running. If your pump is brand new, check the assembly of the tubing to ensure airflow is not being hindered or blocked. If that is not the case, or your pump is just old and worn in, this guide might be useful in restoring the bubbles back to your tank.

Before beginning any work on the pump, make sure it is disconnected from the power source.

  1. jBJRALIKdFEmN5ta
    jBJRALIKdFEmN5ta
    GnNBpotDpTsxxO1Y

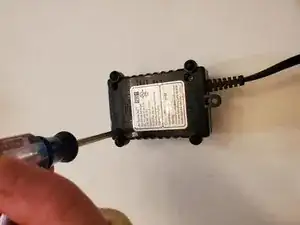

    • Begin disassembling the air pump by removing the screws (2.9mm x 13mm) with the small Philips screwdriver.

  2. grMBrienlMxoUDtY
    grMBrienlMxoUDtY
    T4RDVCAHbeV2TXxL

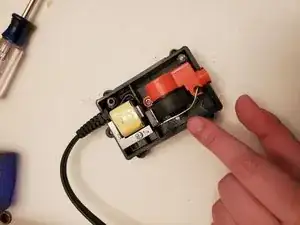

    • Remove the cover of the air pump to expose the inside of it.

    • Set aside the three screws (2.9mm x 13mm) and cover to save for reassembly at the end of the guide.

  3. UGnKR4yWMNBjvtTf
    UGnKR4yWMNBjvtTf
    IsP3i2XTkp5HSFXp
    M5Cn6WQjutIlrcVS

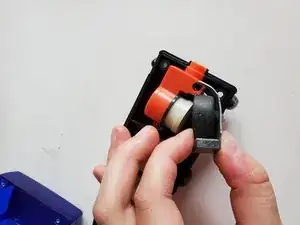

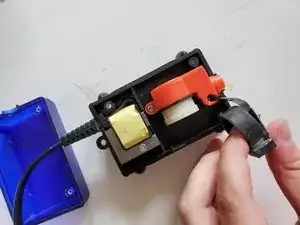

    • Remove the round, rubber cover called the diaphragm.

  4. h4vAfo1nXqW4GOHL
    h4vAfo1nXqW4GOHL
    AjOSH5mUr1afUMxG
    G4JjtarGBl6e1pFr

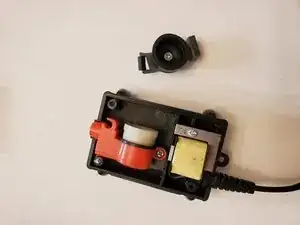

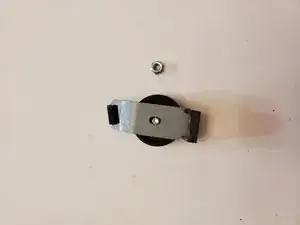

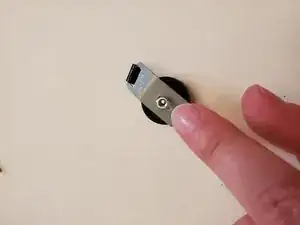

    • Once the entire piece is removed, unscrew the the rubber diaphragm from the metal part.

    • Begin by twisting off the washer.

    • From here, remove the metal piece and the screw (1.25mm x 8mm) from the center of the diaphragm.

  5. xhvMAX5g6NawlqQT
    xhvMAX5g6NawlqQT
    oSDYSA25ERJPUyXS
    XxIkDoR3DG4qlLvw

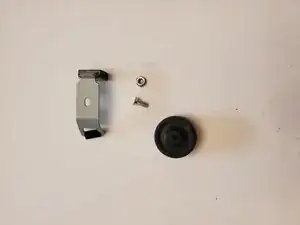

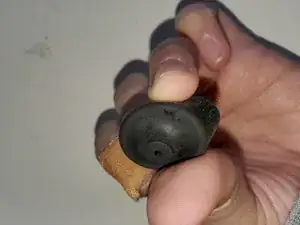

    • Once the diaphragm has been separated, set aside the metal piece, the screw (1.25mm x 8mm), and the washer.

    • Examine the diaphragm for damage.

    • Here, you can see a hole in the diaphragm that needs to be repaired.

  6. lgl1KXQFepCpU1uF
    lgl1KXQFepCpU1uF
    5y1VVPOPQcL3bWKr
    mNelfdUVrpWDAxuP

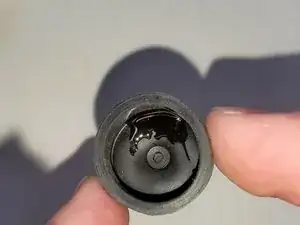

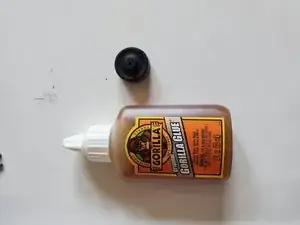

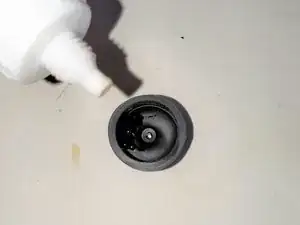

    • Using the Gorilla Glue, coat the diaphragm on both the inside and outside of the damaged area to ensure adhesion.

    • Make sure the entire area is covered as pictured - it's okay if it looks messy.

  7. uk4Tp1NvlpXZxVxk

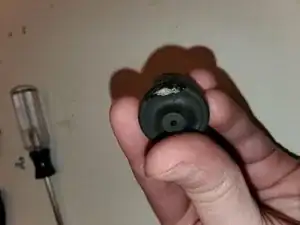

    • Allow the glue to dry thoroughly before reassembling the air pump.

  8. HthU4YV3mIElJn2v
    HthU4YV3mIElJn2v
    PBqqswuvTCBXZhVB
    HoaMCpxHLBepNJJX

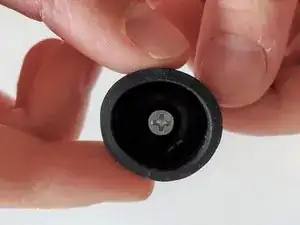

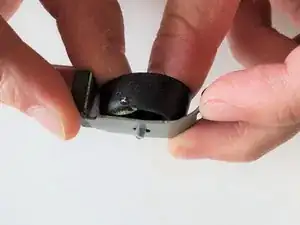

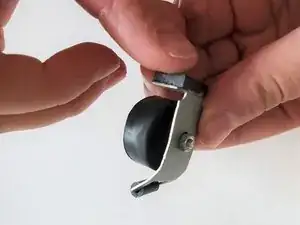

    • From here, follow Step 4 in reverse to reassemble the diaphragm and its attached metal piece:

    • Insert the screw (1.25mm x 8mm) through the hole of the diaphragm.

    • Place the metal piece flush against the back of the diaphragm, making sure to line up the screw with the hole.

    • Finally, screw the washer back on to ensure a secure fit between all the pieces.

  9. gXodDrO1nrkiBVGF
    gXodDrO1nrkiBVGF
    FL5GoAisY6mmBPj3

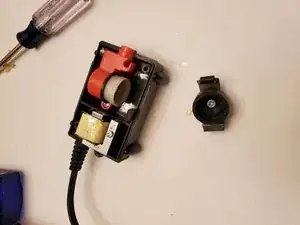

    • Place the reassembled diaphragm back into the slot you initially removed it from.

  10. KNJapciX3TJrosXX

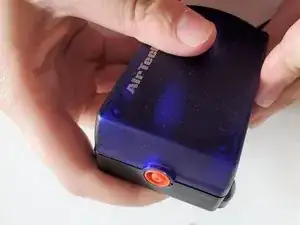

    • Place the cover back on the air pump, lining up the holes for the three screws (13mm x 2.9mm).

  11. 6qCq3i436MxF5xQd
    6qCq3i436MxF5xQd
    2XpegvGumuFBKkMY
    FpSXlFiTycOaSxIf

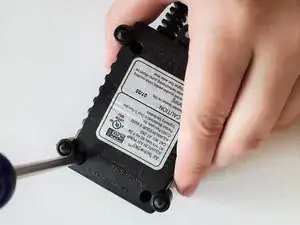

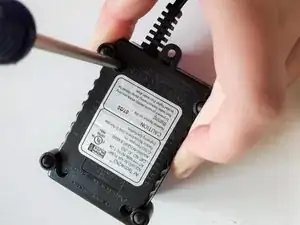

    • Place the three screws (2.9mm x 13mm) and use the Philips screwdriver to secure them in place.

    • Once the cover is on securely, you will be able to reconnect the tubing, and you should have bubbles!

Abschluss

To reassemble your device, follow these instructions in reverse order.
