Einleitung

If your Sorrento Grey Reclining Loveseat (model 59928-028-1X) has a seat that is not secured properly, use this guide to replace the seat’s sliding mechanism to resolve the issue of the failing seat.

The sliding mechanism holds the seat in place, so that it can move when a person reclines or rock the seat. A faulty sliding mechanism will cause the seat to slip and malfunctioning will occur.

Before using this guide, inspect the loveseat for any loose components where the seat and its base connects. Typically, the sliding mechanism from the seat should be fixed to the wood of the seat. Be sure the seat base is properly secured and no components have become unattached.

Step 1 and Step 9 requires that the loveseat be turned over. If you do not feel comfortable with this step, then seek help before beginning.

Before beginning, make sure to unplug the power chord coming from the loveseat and store it in its storage unit. Locate the storage unit on back side of loveseat after unzipping the zipper.

  1. PiSEStqcYwPxDXb3
    PiSEStqcYwPxDXb3
    1qOxG5uJiQvi4Sv3
    kibuhoDXVRXKRRUE

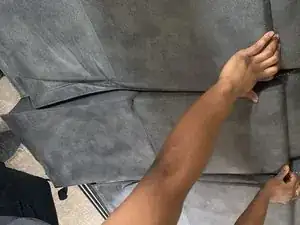

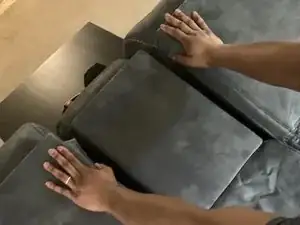

    • Turn the Sorrento Grey Loveseat over.

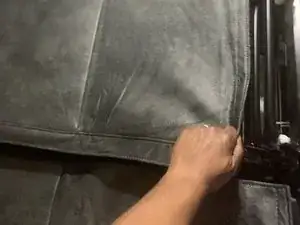

  2. MdibH2wkXhkjjBZO
    MdibH2wkXhkjjBZO
    TjGlrULpHuQjGMyg
    Rl24mk1NLtVwyUko

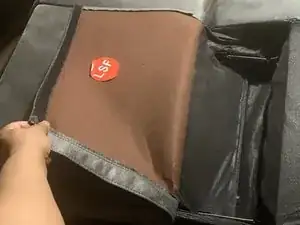

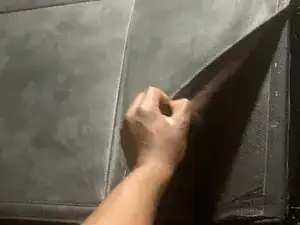

    • Remove the snap cover that is covering the back to show the seat's sliding mechanism.

  3. QFjSkHxhTE2axIe2
    QFjSkHxhTE2axIe2
    HksRNSKXBLecy5oY
    CSNQ6d6Auk423glt

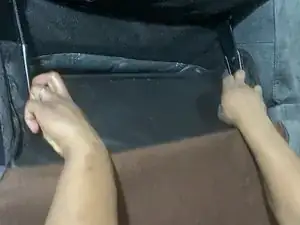

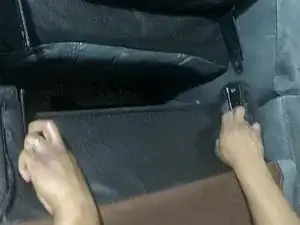

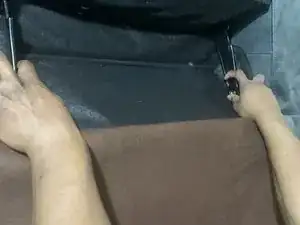

    • Pull off the seat connected to its base by pulling the clamps on both sides outward and the seat towards your body.

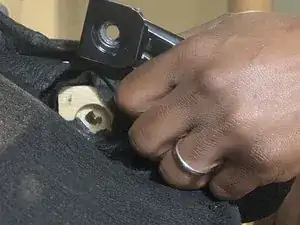

  4. ENou1XNdJgeJ2MLV
    ENou1XNdJgeJ2MLV
    lcn5JUVl1EEtwSHC

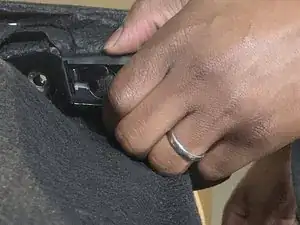

    • Align the hole of the sliding mechanism to hole on the wood of the seat.

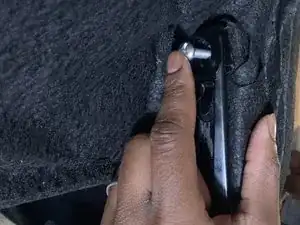

  5. w3WYTVOnu1xBPoOK
    w3WYTVOnu1xBPoOK
    aJv112DfMyLioOiJ
    NlhHhkXJBKUdPIp3

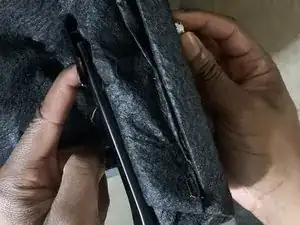

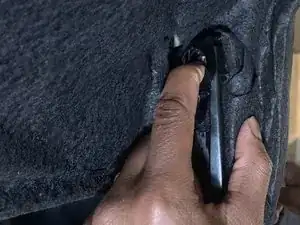

    • Insert a screw into the hole and secure a bolt on the end.

  6. HXGJY3RLWLcjAJx2

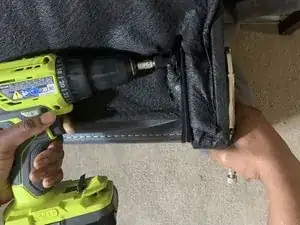

    • Use a drill and vice grips to secure the bolt on the screw.

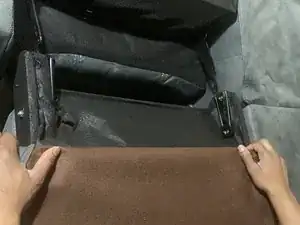

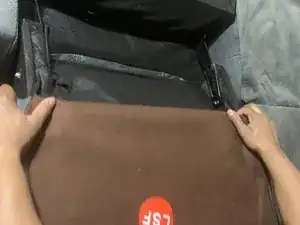

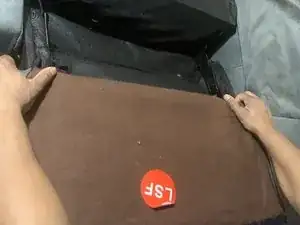

  7. liu5uyuNUulJdmcl
    liu5uyuNUulJdmcl
    AEahcA1D4YqE3nIy
    Smg5gAKx12gVBTmQ

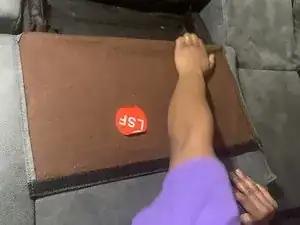

    • Attach the seat back onto the loveseat.

  8. qG1IdQqHuVVo2saq
    qG1IdQqHuVVo2saq
    EeB2wckJZMydfPlr
    ImYIRv6Nyngv5QCR

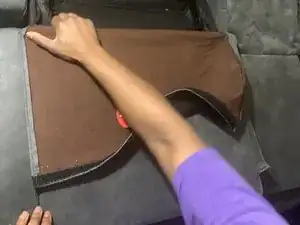

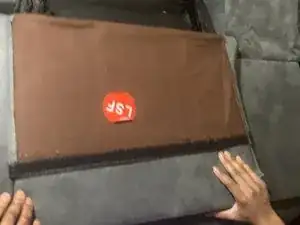

    • Use force to lock the seat into place.

  9. XPXEjnOgsAhAUMFR
    XPXEjnOgsAhAUMFR
    6Np4HonH3iRkJgTT
    qtUFVZFMcneWTkMB

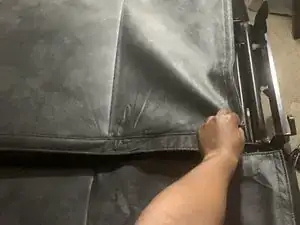

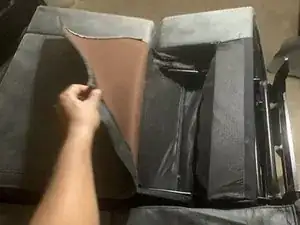

    • Cover the sliding mechanisms with the snap cover.

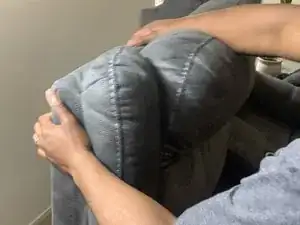

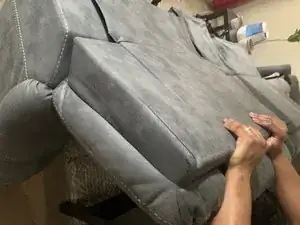

  10. XbvF3rP52WmSXXmt
    XbvF3rP52WmSXXmt
    umIyTfTJxvUFvfHL
    SwGHXen4IveRgPmS

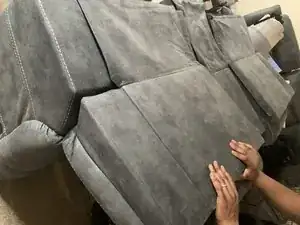

    • Guide and place the loveseat back into upright position.

Abschluss

To reassemble your device, follow these instructions in reverse order.
