Einleitung

The lower tray on the WORX Pegasus is a substantial part of the assembly as it prevents the legs of the bench from spreading apart while adding stability.

Sometimes these trays become accidentally detached from each other, either partially or completely, preventing you from fully opening the bench.

Fortunately, there is an easy and permanent fix for this.

  1. lG2nhJuQTUHxHSAI
    lG2nhJuQTUHxHSAI
    1gmoOasjEyn6HUIB

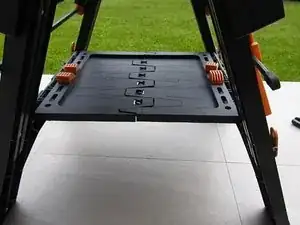

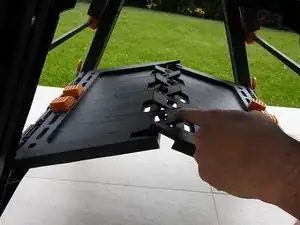

    • If yours became detached, make sure you manually re-assemble the tray as it is supposed to be

  2. ylhhZ4A6UTI1E5hg
    ylhhZ4A6UTI1E5hg
    ZT1bF1Y62oN3HYDP

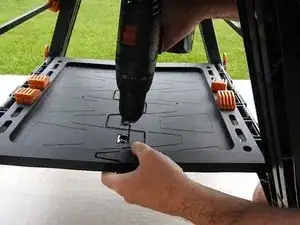

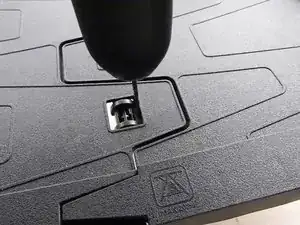

    • Drill a small hole, the smallest possible but large enough to allow a zip tie to go through. I used a 1.5mm drill bit.

  3. diY2KMfD5WZ5JHqo
    diY2KMfD5WZ5JHqo
    4GfnObSuIADTSYAu

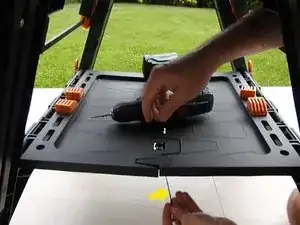

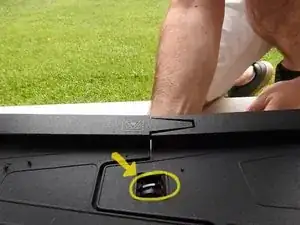

    • Route a Zip Tie through the hole you just drilled and around the hinge barrel.

    • Cut the excess with scissors or wire cutters.

    • Do this procedure on two hinges: the leftmost and rightmost.

  4. v2PTJYLQgfGPq3PS

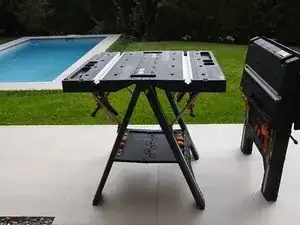

    • If done correctly, the tray is not going to fail again.

    • This fix also adds a little bit more strength to the lower tray.

    • Enjoy!
