Einleitung

This guide is a prerequisite for the guide "How To Convert An iMac Into An External Monitor"

Background

The question "Can I mod my older iMac to use it as a monitor?" has been asked on iFixit and many other internet forums for years. This guide attempts to teach others how to complete the first phase of such a project.

In summary, to convert an iMac to work as an external monitor, one must:

  • Completely teardown the iMac, removing everything.
  • Install a video control board, new inverter, and new power supply into the empty iMac shell.
  • install new video-in ports on the exterior case.
  • Re-install the screen, reassemble the iMac case.

Following this guide will allow you to purchase the correct video control board, new inverter, and new power supply for your iMac, and will prepare you to complete a full iMac external monitor conversion.

Steps 1-14 are pulled from a standard iFixit guide. Steps 15-17 are original to this guide. If you have an iMac that is a different model than the one shown in steps 1-14, this guide can still be used.

  1. SVdq5DjEEbPY35bT
    SVdq5DjEEbPY35bT
    5NTGqqPfJNHjQEls

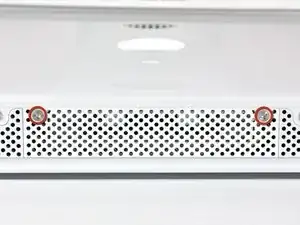

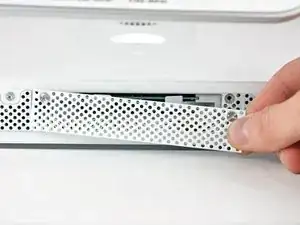

    • Loosen the two Phillips screws securing the access door to your iMac.

    • Both screws remain captive within the access door.

    • Remove the access door.

    • Before beginning the repair, unplug the computer and press and hold the power switch for 20-30 seconds, to discharge internal capacitors.

    Swapping in a new CPU and an SSD took me about 10 hours. I did take a dinner break and spent another hour rooting around in my garage to find my thermal paste. Still, this procedure can take a long time.

    gordonhamachi -

    Only a french translation proposal. We use to say “démontage” instead of “installation'“ in that specific case. ;-) (Dismantling)

    francis barbier -

  2. 5fPkIVmbV4xPLqbw

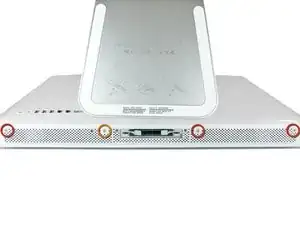

    • Remove the following screws along the lower edge of your iMac:

    • Three 6 mm T8 Torx screws

    • One 8 mm T8 Torx screw (Right side of the RAM slot on 2105)

  3. mifhKnEOI112Qck2
    mifhKnEOI112Qck2
    5MYpx1VtHVM4VNl3
    ep11S11CisKiBn2g

    • Re-orient your iMac so it sits upright on the stand.

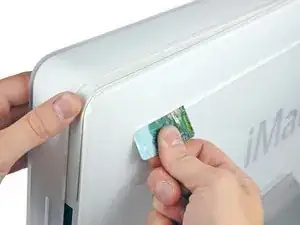

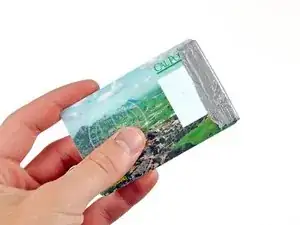

    • Insert a plastic card up into the corner of the air vent slot near the top of the rear case.

    • Push the card toward the top of the iMac to release the front bezel latch.

    • Pull the front bezel away from the rear case.

    • Repeat this process for the other side of the front bezel.

    • It may be necessary to apply several layers of duct tape to the top of the access card to aid in releasing the latches. Or use two cards for the additional thickness.

    • If the bezel refuses to release, try lifting the lower edge of the front bezel slightly away from the rear case (detailed in the next few steps) and repeat the latch release process.

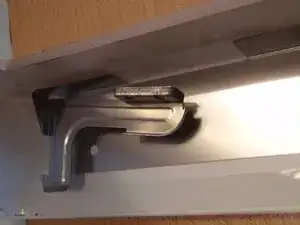

    I have never seen a pict of the bezel latch, I hope this picture link helps you to figure out what is inside that you need the cc to hit to release, I had a tough time making it work but managed just before I gave up! http://i209.photobucket.com/albums/bb35/...

    ReneBruce -

    the photo of latch is no longer there at Photobucket

    rmshreffler -

    When you put this back together, make sure you place the bevel latches UNDER/INSIDE the case frame.

    robino -

    Zitat von ReneBruce:

    I have never seen a pict of the bezel latch, I hope this picture link helps you to figure out what is inside that you need the cc to hit to release, I had a tough time making it work but managed just before I gave up! http://i209.photobucket.com/albums/bb35/...

    Thanks, your picture helped me.

    robino -

    Rather than through the vent at the back. Ease the bottom of the front bezel away from the screen and then in the gap created between the screen and the front bezel, insert your card here and push up to release the latch. This is especially the method to use, if you have already tried everything else above, as you may have bent the latches, and you'll never get them to relase the conventional way.

    Charlie -

    Good tip. I sort of did this out of desperation before reading this. Seem to work to get it apart. I'll have to see about getting it back together.

    David Sutherland -

    On the 24 inch model, there are no latches. Instead the front bezel has four tabs which slot into the rear case. It's very easy to remove.

    manfred -

    Wow, I really got stuck on the bezel. I tried a credit card, even a flexible metal scraper, nope nothing budged. I finally got going with help from this video: http://www.youtube.com/watch?v=QzuBW3mu7... which the guy has the machine lying on its back, then you can carefully bend the front bezel up until you see the latches, and I got the scraper in front of the screen and un-did the latches that way. Onto the next step!

    sleestack -

    Replaced one of the redundant images of the card going into the slot, with the previously linked image of the latch itself. I was struggling to figure out how to get the thing open, thinking it was a latch that pushed *up* to the top of the system, but it actually pushes *forward* towards the screen. That accounts for the bending of the card, and the excess length required to insert it. After figuring that out, the case came off nicely.

    Matt Falcon -

    Apple uses a powerful magnet to release these latches, but the official tool is not available. If you have access to a few failed hard drives, you can take out the magnets from those, and stack them up to have a magnet strong enough to easily open these latches.

    Simply place the magnet on an upper corner of the machine, and when you hear a click, gently pull the corner of the front case forward. Repeat the process for the other upper corner. Use care not to pull on the iSight cables.

    Note: Use care when handling the hard drive magnets, they are powerful, and you don't want them to snap together on your fingers. OUCH!

    Zaphod -

    This was perfect! I wish the original instructions mentioned the magnets.

    I used magnets I pilfered from an old hard drive.

    veganmo -

    This is definitely the hardest part of this repair. I ended up doing what Charlie did and got it off after a lot of frustration.

    aseisman -

    The iMacs I've taken apart open simply with a magnet. I made a video to show exactly how the latch works inside. You do need a strong magnet like the hard drive internal magnet suggestion however they can be found in many places, just look for 'rare earth' or 'neodymium' and you'll find one. probably .3" cube would be big enough.

    http://youtu.be/yvq035edr-I

    there is the video that shows how the latch works. of course you may need TWO magnets to do both latches at the same time.

    awr -

    Save yourself some headache and get a magnet for this. I used these: www.amazon.com/gp/product/B004PWMVSI/ref=wms_ohs_product?ie=UTF8&psc=1

    Sometimes just one will do the job, other times I've had to use all 4 together.

    Much easier than trying to use a card.

    maccentric -

    sleestack is right on. The youtube vid is excellent for sliding the case right off without spudges and cards, etc. The vid's still there as of today, 9/30/2014. And the guy's foil removal is right on target, too. Very simple to replace the battery. I use this old 2006 computer with an old version of the PC program for Jobclock and only for that with Parallels 6 running the PC app. Don't want to upgrade or change anything at this point, going to milk it a couple more years. Got a nice big i5 for everything else. Oh, happy day.

    infoghost -

    Apple designed the latch to be released with a Magnet. That's it. That is the tool to be used.

    Avoid frustration, hassles, wasted time: simply buy a "neodimio" Magnet.

    Actually yes – IMHO It would have preferred iFixtit had mentioned a MAGNET to release the front Bezel, the credit card in an awkward and misleading (and not so smart) method.

    I hope iFixit will change Step 3.

    Giacomo Santerini -

    Be very careful here. One of the sides did not release using the plastic card. I tried to push it a bit but it would not give. It did work using 2 cards. What I did not realized until the very end, when I turned the imac back on, is that I broke the display. Thanks a lot ifixit. I get the hard drive back to work now but with a damaged display. And I can't even buy a replacement one from you.

    patmainville -

    Yes the screens in these machines are easy to break. I've opened these sorts of machines at least a 40 times. You do need to be very careful with the display. The won't take any pressure from a wayward thumb or finger etc. I have broken one once, trying to get a latch to give. You have to be very conscious not to out any fingers in the display at all.

    BUT, how you think this is anyone's but your own fault is beyond me. iFixit has no blame to take here.

    Please everyone, read through all instructions carefully and learn from others'.

    And to this poster, go buy one of these machines from eBay or find in one in hard rubbish to repair yours. These white iMacs are almost 10 years old now. And are scrap in most people's minds.

    Charlie Nancarrow -

  4. TVTdMHyJpIJ61F62
    TVTdMHyJpIJ61F62
    bOF2QePTeQ4EuiWI

    • Lay your iMac stand-side down on a flat surface.

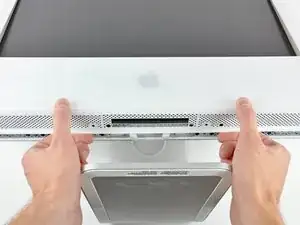

    • To lift the front bezel off the iMac, simultaneously:

    • Use your thumbs to press in the RAM arms and hold the iMac down.

    • Use your index fingers to pull the small bridge of material on the front bezel toward yourself.

    • Pull the front bezel up with your index fingers.

    • Once the small bridge of material has cleared the RAM arms, lift the front bezel by its lower edge just enough to clear the bottom edge of the rear case.

  5. STegSvCtWJVceTYN
    STegSvCtWJVceTYN
    d6I5d6lQWCKckDg6

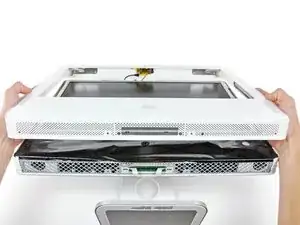

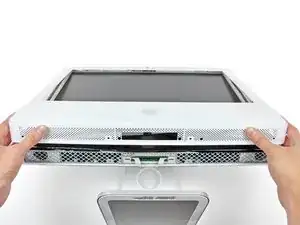

    • Lift the front bezel off the rear case and rotate it away from the bottom edge of the iMac, minding the camera and microphone cables still attached to its upper edge.

  6. EtWTv5BjBUYYxXYc

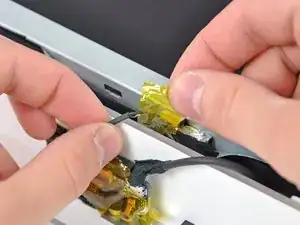

    • If necessary, remove the strip of tape covering the microphone cable connector.

    • The microphone connector is located near the inside of top edge of your iMac.

    i posted a note on the next page about disconnecting the microphone and camera cable. may help. reed it before disconnect.

    sebalancea -

  7. BXBBr6hbCYCRiSif
    BXBBr6hbCYCRiSif
    VD1EZLPg4WWIU5NV
    N6TB6kbibPCCPykE

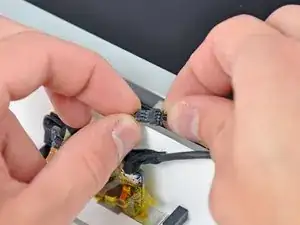

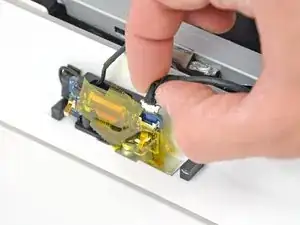

    • Disconnect the microphone cable.

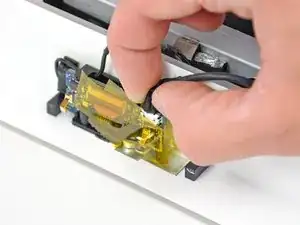

    • Disconnect the camera cable by pulling its connector away from the socket on the camera board.

    • The camera cable connector and socket are delicate and easily bent. Remove with caution.

    there's no need to disconnect the microphone and camera cable. you can work against a wall and carefully rest the frame and the display on the wall.

    sebalancea -

    Zitat von sebalancea:

    there's no need to disconnect the microphone and camera cable. you can work against a wall and carefully rest the frame and the display on the wall.

    I didn't even use the wall, I just carefully pivoted the frame backwards and laid it on the table without disconnecting the wires

    Bob -

    Be careful. My microphone and camera cables looked a little bit different from this. My camera cable connector did NOT plug directly into the camera board (and I almost tried pulling the cable out of the board), but rather there was a cable to cable connector that was stuffed behind the monitor. I had to skip this step until the monitor was out. I have an early 2006 20" iMac.

    avcaruso -

    My Mac had a different camera board and it didn't appear that the cables could be detached. Leaving them in place and propping up the back of the case worked for me.

    gordonhamachi -

    I agree, no need to disconnect. I used a bunch of books (heavy books), to keep the monitor frame upright.

    osfanatic -

  8. 6CHRQuYklkGupqXw
    6CHRQuYklkGupqXw
    tM6SFMpdBYjiPFbA

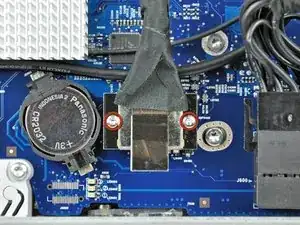

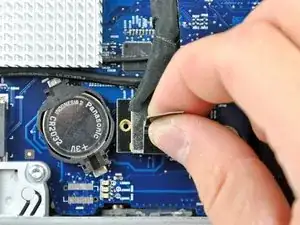

    • Remove the two 5 mm T6 Torx screws securing the display data cable connector to the logic board.

    • Pull the display data cable connector up off the logic board by its black pull tab.

    This would be a really good time to change the PRAM battery. They only last 4-5 years, and cost very little. It'll save another teardown in the near future. (3v CR2032)

    Bob -

    Zitat von Bob:

    This would be a really good time to change the PRAM battery. They only last 4-5 years, and cost very little. It'll save another teardown in the near future. (3v CR2032)

    Good idea, I just replaced this. $5 @ radioshack.

    sleestack -

    I found that disconnecting the display cable at the LCD end was easier. There are 2 v small clips either side of the ribbon cable, squeeze together and the cable disconnects from the panel.

    KazR -

    on this step I just forgot (there always something to forget!!) to connect back display data cable connector to the logic board, after I replaced the hard drive. Don't worry nothing happens. Hwen I switched on the iMac and it was just functioning alright and normal but I wasn't able see anything other than a black screen :)

    If you got a black screen but a normal white light on the right bottom corner, think abot the connector !

    joleisa -

  9. QTFDkbFVlZq4UMPw

    • Peel back the EMI tape from the two vertical edges of the display.

    • During reassembly, it is helpful to use several small strips of tape to hold the EMI shielding along the left and right edges of the display footprint out of the way before lowering the display into the rear case of your iMac.

    This is tricky and took some time and patience. It is best to have some foil tape handy because the EMF shield tears easily. Likewise when reinstalling the screen and EMF shield, it helps to have a partner who can stop the foil to the side of the screen from getting folded under the screen when you lower it back into position, ready to tape it back onto the edge of the screen.

    mindzeebeez -

    Zitat von mindzeebeez:

    This is tricky and took some time and patience. It is best to have some foil tape handy because the EMF shield tears easily. Likewise when reinstalling the screen and EMF shield, it helps to have a partner who can stop the foil to the side of the screen from getting folded under the screen when you lower it back into position, ready to tape it back onto the edge of the screen.

    I found that using the plastic card to remove the cover worked well in lifting the EM tape from the screen. Also step 10 & 11 appear to be reversed since you can't get to the screws until you have lifted up the display (this can only occur once you have dealt with the EM shield)

    Wizbang FL -

    Peeling back the tape was very time consuming. I bet the pros just cut it and patch with new metallic tape. This step was the worst.

    gordonhamachi -

  10. B3gw61m2orly2KQK
    B3gw61m2orly2KQK
    TeAi4MTPUOAjTosl

    • Allow the lower EMI shield to hang down from the display.

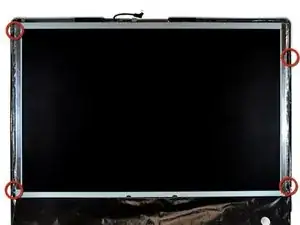

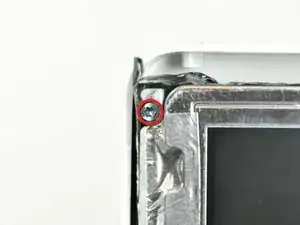

    • Remove the four 7.5 mm T10 Torx screws securing the display to the rear case.

    • The screws are recessed, so a thin magnetic screwdriver aids in removal. Most bit drivers are too short to reach these screws.

    This is a Torx T-9 on the 24" iMac Core Duo

    jrmn -

    Zitat von jrmn:

    This is a Torx T-9 on the 24" iMac Core Duo

    This is also a Torx T-9 on my 20" iMac Core Duo, probably manuf'd around the same time.

    Daniel -

    Zitat von Daniel:

    This is also a Torx T-9 on my 20" iMac Core Duo, probably manuf'd around the same time.

    My mistake, it's actually a T-10, but the T-9 was the only one I could get to work due to the limited angle.

    Daniel -

    I believe this is where the $4.95 looong T-10 screwdriver shown in the recommended tools would have come in handy. We managed to make the driver from the 54 bit set work by holding the bit driver with a vice grip, which made it possible to get down in there. The various holders that came with the set were just a hair too thick.

    Justina Hayden -

    These four screws are tricky to deal with. They are well recessed and hard to spot at first. A magnetised screwdriver is a prerequisite. Another way is to glue the screw heads to the screwdriver with some very weak glue, and let it almost set before trying to locate the screws back into their holes whilst re-assembling. I lost one screw somewhere inside the computer! It is alright with 3 but I hope it doesn't touch something vulnerable on the circuit board.

    mindzeebeez -

    Zitat von mindzeebeez:

    These four screws are tricky to deal with. They are well recessed and hard to spot at first. A magnetised screwdriver is a prerequisite. Another way is to glue the screw heads to the screwdriver with some very weak glue, and let it almost set before trying to locate the screws back into their holes whilst re-assembling. I lost one screw somewhere inside the computer! It is alright with 3 but I hope it doesn't touch something vulnerable on the circuit board.

    Try sticking the screw onto the driver with a tiny piece of blu-tac. Worked for me.

    Bob -

    I found it easiest to lie the computer on its back and rest all four screws in the display. Then all you have to do is lower the display slowly and evenly. The tricky part with this method is to make sure the EMI shield doesn't catch on the screws on the way down.

    Andrew -

    If your Torx screwdriver isn't magnetized, rub the tip 8-10 times on the magnet inside the white plastic cover (the one that holds the remote to the side of the monitor). Prestro... your Torx screwdriver is now magnetized!

    John Way -

    I used a strong wall magnet to magnetize my screwdriver. It worked perfectly! Your tip was very helpful and pointed me to an answer that worked for me.

    osfanatic -

    The lower left screw of the display can be sometimes reached directly from the corner rather through the hole.

    Bob -

  11. xq1oxhATyLB2Zqwr

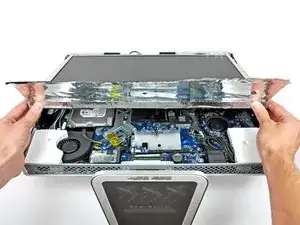

    • Lift the lower edge of the display and rotate it toward the top edge of your iMac.

    • Do not lift it too much, as the inverter cables are still attached.

    If you remove the inverter wires after dealing with the EM shield you can flip the display without detaching the LCD data cable. Use the foot of the iMac (with a towel to protect the display) to hold the display while you work inside.

    Wizbang FL -

  12. 4T32pwFfW3tB3AUb
    4T32pwFfW3tB3AUb
    gy2bVXyyuOXvijEX

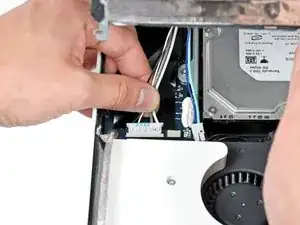

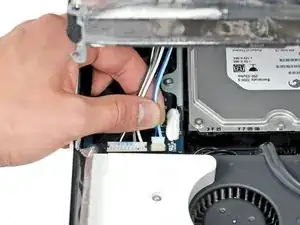

    • Disconnect both inverter cables from the inverter board.

    • These connectors are seated very tightly in their sockets. It is helpful to use your fingernails or the tip of a spudger to push the ears on either side of the connectors to dislodge them from their sockets. A small pair of hemostats helps a lot.

    The 17" model is nearly identical until this point. You will not have to disconnect on the 17" model for either Step 15 or Step 16.

    robino -

    Watch out when reconnecting the inverter cables - the little pins on the inverter board are very easily bent indeed when the plug isn’t put back totally straight. I happened to bend one on the lower edge, resulting in the display being only dimly lit in the lower half and requiring me to open the machine once more. Since I only flipped up the display unit (as in some of the comments on step 16) I could skip step 15 and never touched the inverter cables on the top edge of the inverter board.

    Hartmut Vodermaier -

  13. 5TOaxnmUymDvPuNh

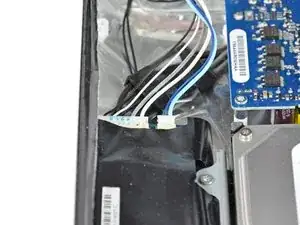

    • Disconnect the two inverter cables at the top edge of the inverter using the method explained in the previous step.

    I would mark the top of the large inverter cable connectors somehow, with a marker or pencil. My connectors had writing on the bottom, not the top as pictured, and I bent the pins trying to reinsert it incorrectly since the top and bottom look similar. Nearly all the other connectors have an obvious top and bottom.

    Marko -

    Take pictures with iPhone of all tricky connectors and refer to them on reassembly:-)

    Macrepair SF -

  14. meOUEYPlSmqDRvQQ

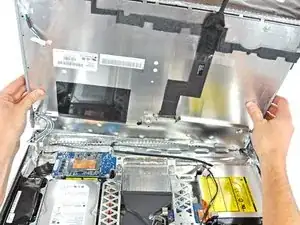

    • Rotate the display until it is nearly perpendicular to the rear case and lift it up to peel it off the EMI shield stuck to its top edge.

    You don't need to peel off the display from the top. Just lean it toward a wall etc. in a perpendicular angle. If you don't move the mac while you perform the following steps, it won't flip or fall down. You can also save step 15 this way, as the wires are long enough to stay connected.

    Martin -

    Why peel it off? I just left it there in the perpendicular position leaning against the wall. Didn't annoy me at all when I changed the hard drive.

    alex, Jul 02 2012

    alexanderfaussner -

    I've seen a few people comment having found their Airport dead after hard drive swap. It's really easy to rip off the wire from Airport antenna (up there nearby the mic and camera, to the left from them). The wire goes through the holes of upside EMI shielding and raising the display too high while trying to peel the shielding off can yank the wire so it gets loose from the soldering.

    Tee -

    It looks like I'm late to the party but here goes anyway... I have Ubuntu Kylin installed on my iMac Intel 20" EMC 2105 and I want to use the iMac's display for my Linux install on that unit AND be able to switch the video going to the screen from my iMac to what's displayed on my Mac Mini. I think what I'm asking is how can I split the display so I can switch the video input to the video card from one machine to another.

    Frederick C -

    You do not have to disassemble the logic board! At this point, you have to disassemble the hard disk, unscrew the 4 screws and the big power connector. The second small cable, without disassembling the motherboard, is enough to make it pass sideways, pulling away with a bit of force on plastic and the beat sink. The small sponge gasket must be removed and then rested. 3 minutes in total from this point!

    gentissi -

  15. TJECnMxHqeQQtb2c
    TJECnMxHqeQQtb2c
    15m5ZVTnaKynxGQq

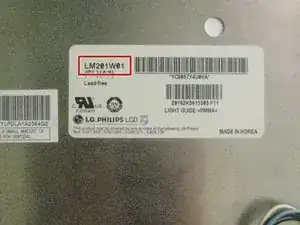

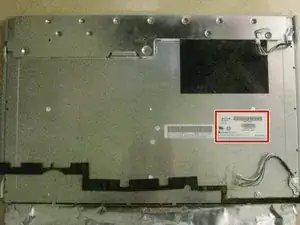

    • Lay screen on it's face. Locate the sticker on the back, which lists the Make, Model, and Model Number.

    • This screen, from a 2006 iMac A1207, is an LG model LM201W01. Yours Will Most Likely Be Different

    • The example searches shown in the next step use the model number LM201W01. Again, Yours May Be Different, so adjust accordingly.

  16. OtGvtTaBICd6u3xa
    OtGvtTaBICd6u3xa
    5UvjZxINPTfJrauv
    23Ua3GsRErAKintf

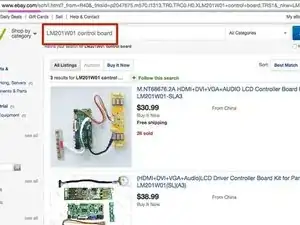

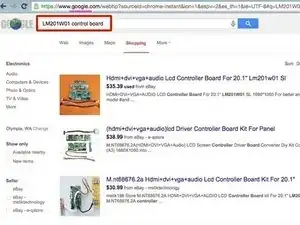

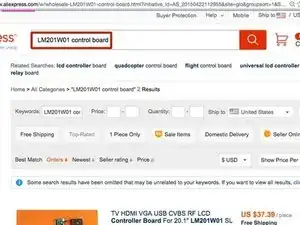

    • Using a search engine of your choice, search for the following phrase: "your-screen-model control board".

    • Other good places to find such parts are ebay.com and aliexpress.com.

    • Be sure that the control board which you purchase, comes with an inverter board for your screen's backlight.

    • Purchase the control board. Expect shipping times of 2+ weeks if ordering parts from Asia.

  17. Gg6saMWX6vWaQQCL

    • The vast majority of control boards do not come with a power supply. Check the specifications listed by the vendor to get the power supply requirements for your board.

    • You'll need to get both the Voltage (typically 12v for 12-21" screens, or 19v for 24+" screens) and the Amperage. The control board's voltage specification must be followed exactly, while the amperage specification is a 'minimum required': In general, using a power supply with a higher amperage than the requirement is a good thing.

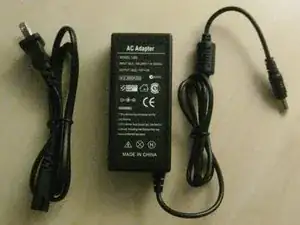

    • Shown here: A generic 12V 5A power supply purchased online for $8.

    • You may not need to purchase a power supply because you may already have one: check around your home or office for the unused power supplies of old electronics such as old modems, routers, coffee makers, etc. You may have one sitting in your box of spare/used electronics. Check before buying!

Abschluss

What To Do Next

Congratulations! You have successfully identified your iMac's screen make and model, and ordered a control board and (optionally) a power supply for it.

If you are doing this guide as part of the "How To Convert An iMac Into An External Monitor" guide, return to that guide now.
