This guide will demonstrate how to wrap handlebar tape on a road bike with dropout-style handlebars.

  1. aGWNWT1SCYacb1Uy
    aGWNWT1SCYacb1Uy
    dnOGrAvrDKpcr4EM

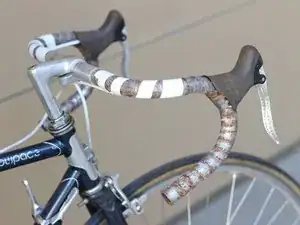

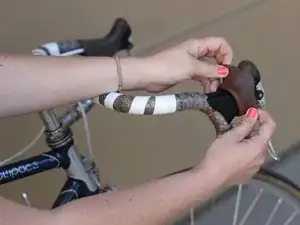

    • Flip the hood of the brake lever upwards.

  2. NLRvY3yNVUn5VAd1
    NLRvY3yNVUn5VAd1
    pGXGQxvsui4Uekra
    O2mZLNRHovMVuQm4

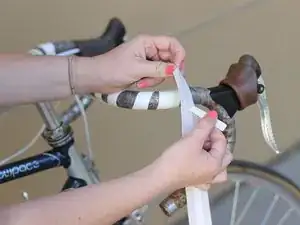

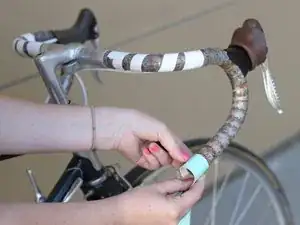

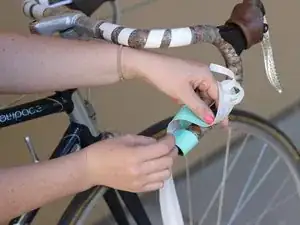

    • Peel off the adhesive covering from the back of the bar tape.

    • Place one end of the bar tape around the handlebar, making sure to leave a half inch extended past the end of the handlebar.

    • Begin tightly wrapping the bar tape clockwise around the handlebar so that the bar tape overlaps itself slightly.

  3. NcBxqRl6LroncOco
    NcBxqRl6LroncOco
    Cl6cgnUwqKFt3DRY

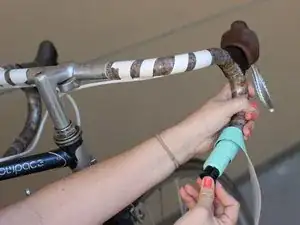

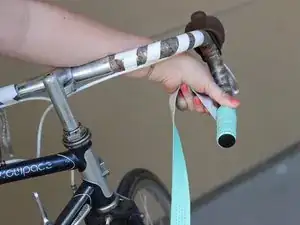

    • After a few wraps, tuck the extra bar tape into the end of the handlebar and firmly push in the bar end plug.

  4. iA5vuDmBNmZbUXeY
    iA5vuDmBNmZbUXeY
    6Hjx6DryDyiN5BtU

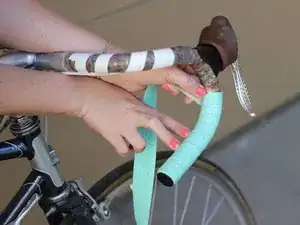

    • Continue to tightly wrap the bar tape around the bar as evenly as possible.

    • Make sure the adhesive on the back of the bar tape is making contact with the metal handlebar.

  5. k3TSOKBXOXZkEOUJ
    k3TSOKBXOXZkEOUJ
    1wKjduEtZ42In1fr
    b4TqoIqvDYopYtr4

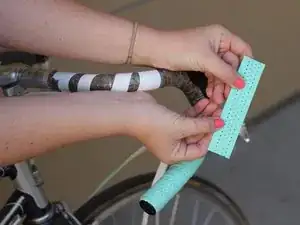

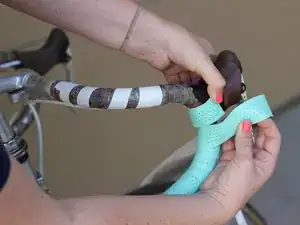

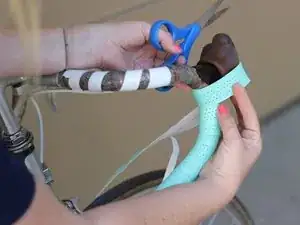

    • Take the extra piece of bar tape provided and cut it to fit the back of the brake lever.

  6. oC2wdORB4WuaNkE6
    oC2wdORB4WuaNkE6
    qbjWIIJpBDXNLIHE
    OqfSjMK62Y5BAGjw

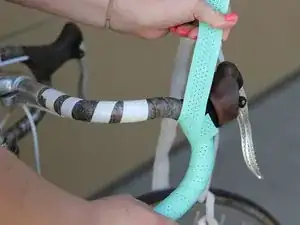

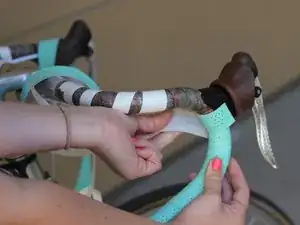

    • Continue wrapping over lever.

    • Keep in mind the tightness and evenness of space between each wrap as you continue.

  7. jeUUliubfU6wmM2b
    jeUUliubfU6wmM2b
    D2gryil6tWEmrVYO

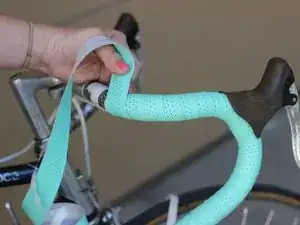

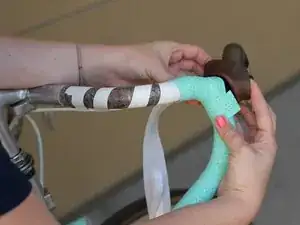

    • Flip the break lever hood back down and continue.

  8. OMIiBEKaIAUcvK6Z
    OMIiBEKaIAUcvK6Z
    ZRehcxNI3GPHWOfi

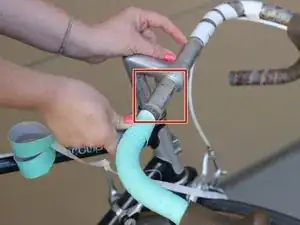

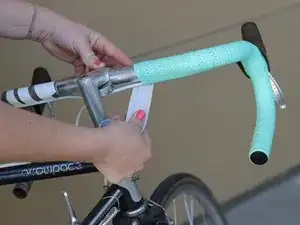

    • Stop wrapping about 2 inches from stem.

  9. uMXOENcUKLFP2SvM
    uMXOENcUKLFP2SvM
    sS6ONHIGv2EuJOWx
    Rg6XfMxivYvUJES5

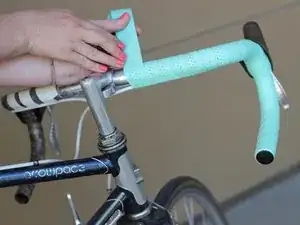

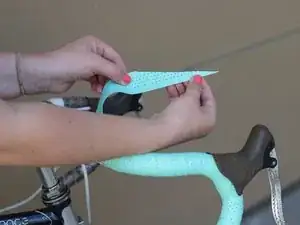

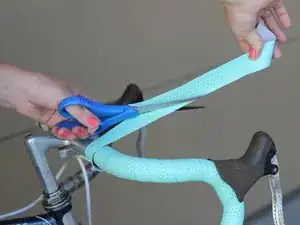

    • Cut the bar tape diagonally at an approximately 60 degree angle.

  10. RsQeZIB51WcMR3eH
    • Finish the wrap.

    • The cut should make the end of the bar tape a straight line.

  11. pGvPdAMcGyCmpqCs
    pGvPdAMcGyCmpqCs
    AuSTYxD3QxQJOXjr
    hCLmRSUYJRHXuu2H

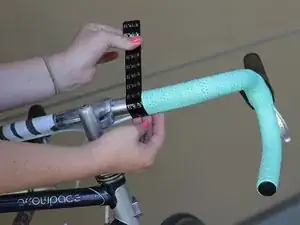

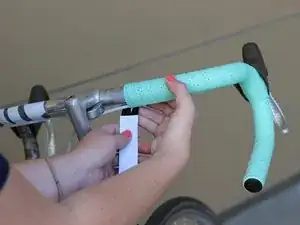

    • Use the electrical tape provided to tightly secure the end of the wrap.

  12. 231eRDNCLDAc6Z2m
    231eRDNCLDAc6Z2m
    AodiduBgSOJvdoCi
    R5Zd14DSHSVfnyFV

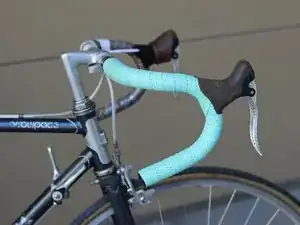

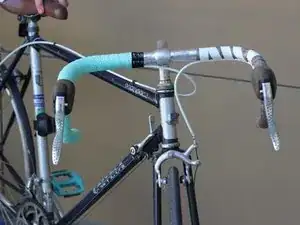

    • Press down on electrical tape to secure it.

  13. qV4FmGDLtuMbiSYi
    qV4FmGDLtuMbiSYi
    5ORoNZtZZcVrASt2
    ATGCq1Q3Bm2lsnTV

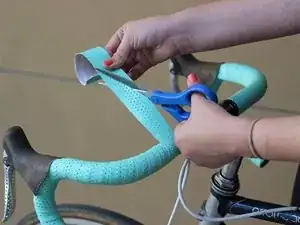

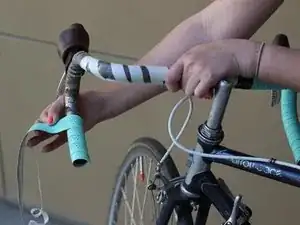

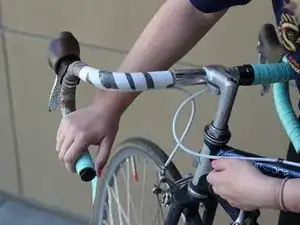

    • Repeat steps 1-12 on the other side, now wrapping counterclockwise.
