How to Install the Zenmuse H3-2D Gimbal on a DJI Phantom

Geschrieben von: David Hoyt
  • Kommentare: 2
How to Install the Zenmuse H3-2D Gimbal on a DJI Phantom

Schwierigkeitsgrad

Difficult

Schritte

22

Zeitaufwand

30 - 45 Minuten

Einleitung

Use this guide to install the Zenmuse H3-2D camera gimbal system on your DJI Phantom or Phantom 2.

  1. ll3FWgDlGKdNdstG
    ll3FWgDlGKdNdstG
    quJaRquuZrlUratk
    qtghuD1wjVuoiXyl

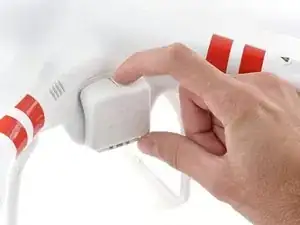

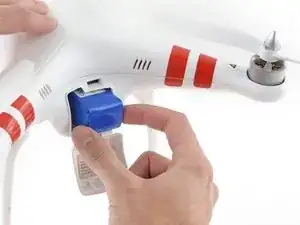

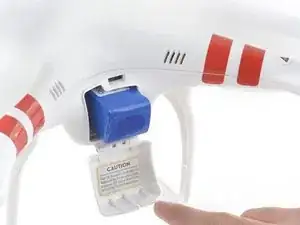

    • Press down on battery door release tab to flip the battery door open.

  2. rrkOBYWTq4EfPeqv
    rrkOBYWTq4EfPeqv
    DHH6LfNXSFQsNfVl
    nrQImKEdKgsEVI1d

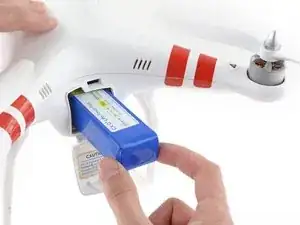

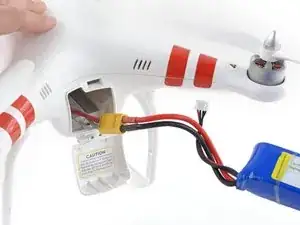

    • Pull out the battery pack.

    • Avoid pulling on the battery wires, excess stress may break the wires, damage the power connectors, or crack the internal solder joints.

  3. 2f1uJNpZFYAGwB5A
    2f1uJNpZFYAGwB5A
    6d66ATycYDRirZIP

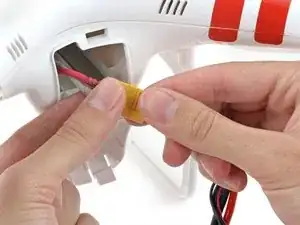

    • Pull the two halves of the XT60 power connector apart.

    • It's a tight fit, so be careful not to hit your drone or yank on the cables when it releases!

  4. TXHgDoqxOSoEGZ6l
    TXHgDoqxOSoEGZ6l
    AhZFoURHDEQK5lMx

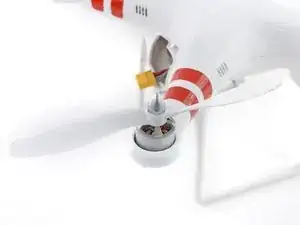

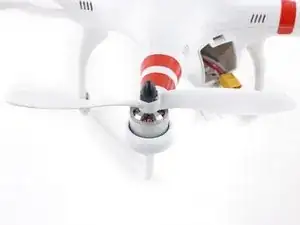

    • Silver-topped propeller collets unscrew counter-clockwise

    • Black-topped propeller collets unscrew clockwise

  5. KV5oRgoNOPEUj1Ct
    KV5oRgoNOPEUj1Ct
    rtcwAxSTmN3VpNvU
    HrdrZKvIA35aNqwI

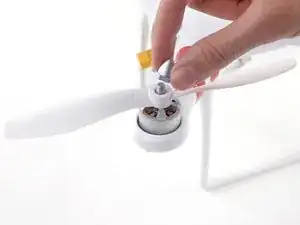

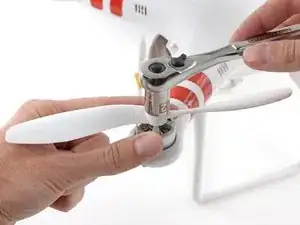

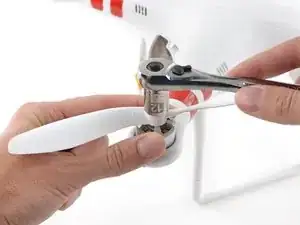

    • For propellors with silver collets: Use a 12 mm wrench or socket to loosen silver collets in the counter-clockwise direction.

    • Once free, unscrew and remove the collet.

  6. Rc4iYUfVNUD5YYyK
    Rc4iYUfVNUD5YYyK
    VddyTDQbdtUKDtOO
    vm1Ge1TOTbVCPOgx

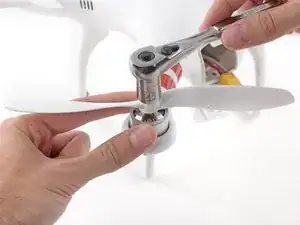

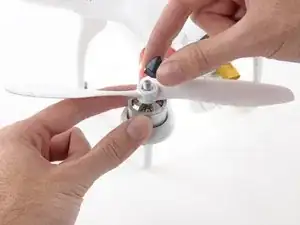

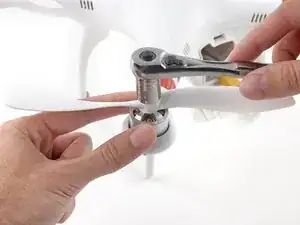

    • For propellors with black collets: Use a 12 mm wrench or socket to loosen black collets in the clockwise direction.

    • Once free, unscrew and remove the collet.

  7. EhjXoW4CluLWJFoF
    EhjXoW4CluLWJFoF
    kk61lOiAlPUXfiZt
    PksLgobUYkCE1CvP

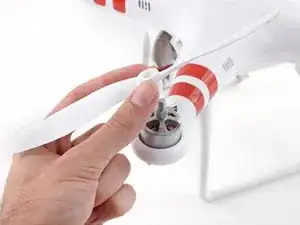

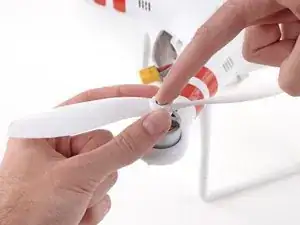

    • Gently press down the motor shaft and lift the propeller up to remove it.

  8. SFmSiwDU52XHdpbX
    SFmSiwDU52XHdpbX
    vDnwKQZykQVQApdY
    AToo2Xaeg2fP6n1y

    • After removing all four propellors, flip the drone over.

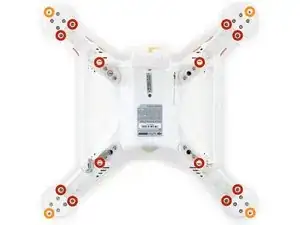

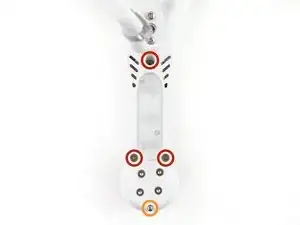

    • Remove the following screws from the underside of the drone:

    • Twelve 2.0 mm hex screws

    • Four Phillips #0 screws

  9. OCelirFVHIEucuSB
    OCelirFVHIEucuSB
    LdEyJSumoxlQngRX
    DBSQn3F1nCLIit3E

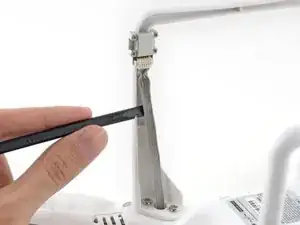

    • Loosen the cable from the plastic landing gear.

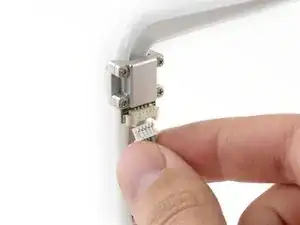

    • Unplug the magnetometer molex connector.

  10. Bj3tpFwXfLTNSmd1
    Bj3tpFwXfLTNSmd1
    HIWIayBRcvMo45gW
    6Duc4XB3SxX5RfE3

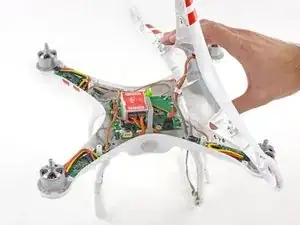

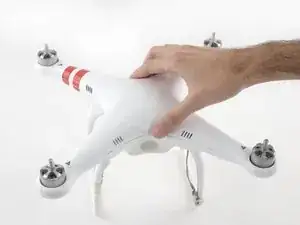

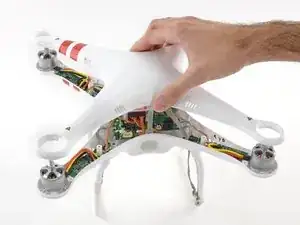

    • Lift up on the top portion of the shell and set it on its side.

    • Do not attempt to fully remove the case. The GPS and Magnetometer cables connect the top shell to the rest of the Phantom, be careful not to stress or break these cables.

  11. FjKSvEB5bdT25PVu
    FjKSvEB5bdT25PVu
    JKgNI5YHhUFQKbRp

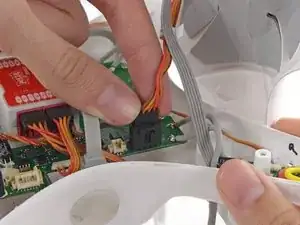

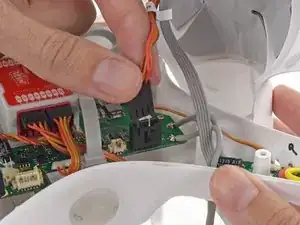

    • Lift the GPS cable molex connector up out of its socket on the main board.

    On the Phantom FCP40 (essentially a Phantom 1), the GPS cable connects directly to the Naza controller box, not to the board as shown here. Also the compass (magnetometer) is connected to the main board, not the GPS unit in the top shell, so you don't need to remove it to remove the top shell.

    Marcus Bointon -

  12. aFCnCh2dTXUFlStV
    aFCnCh2dTXUFlStV
    WM5sWVdBGXvUUUcQ
    mn1owkDNnNrCnTy2

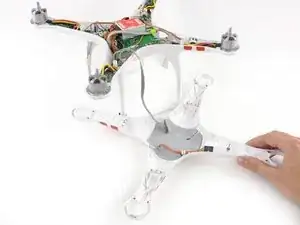

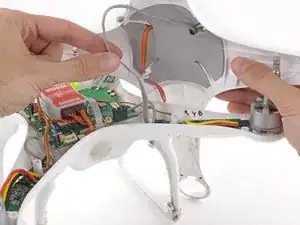

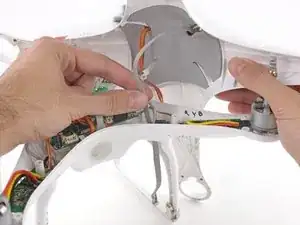

    • Gently pull the slack of the magnetometer cable through the case bottom shell.

    • The case top shell should now have enough slack to work on the interior of the Phantom.

  13. 1C6MaAHZhfnSQNU6
    1C6MaAHZhfnSQNU6
    rNTtcV3bBDuI5DuD
    m4hifjHO5JlqpxNZ

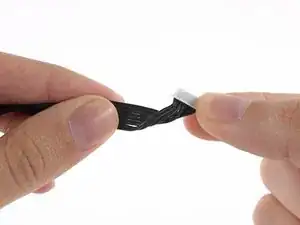

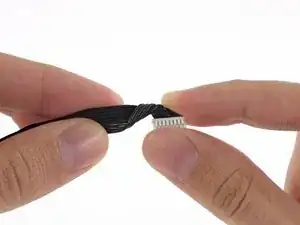

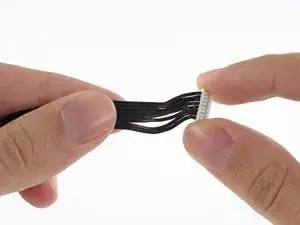

    • Twist the molex and cable as shown to prepare it for insertion through the case bottom shell.

  14. WNWTpnFXPT1rkKUh
    WNWTpnFXPT1rkKUh
    4kaXWk5QayQjKfi1
    K1QBBf1joUH6nLoU

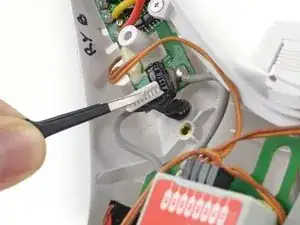

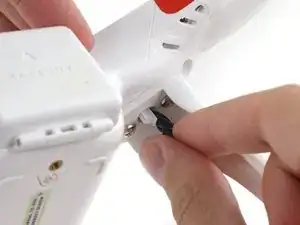

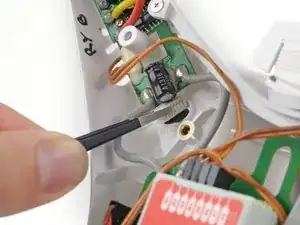

    • Insert the molex connector through one of the landing gear holes and case bottom shell.

    • Pull the cable through.

    • This is a really tight fit, take your time and avoid damaging the molex connector or cable. We found that gently rocking the molex connector back and forth through the hole eventually wiggled it through.

  15. pZYL1j5J6tFJH61x
    pZYL1j5J6tFJH61x
    BMh1W4lDfQlTNVWw
    r2OqkyM51qeWgsWt

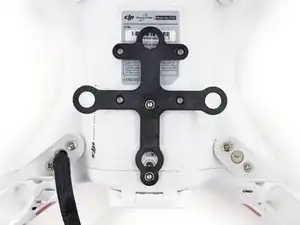

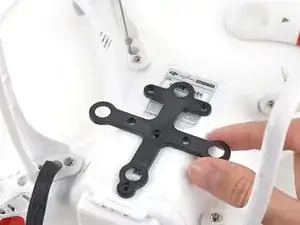

    • Place the H3-2D mounting bracket on the bottom side of the Phantom.

    • Line up the mounting holes and screw in the two bolts to secure the mounting bracket.

  16. VXf1P6JXagBDUQvN
    VXf1P6JXagBDUQvN
    WaDrOui4cNFPB2qm

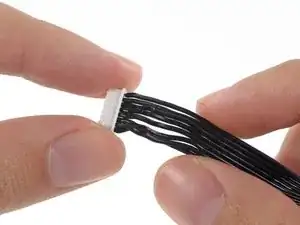

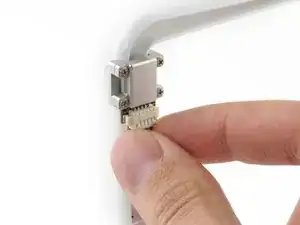

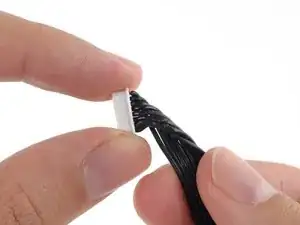

    • Twist the other end of the G8 cable molex connector as shown in order to plug in the H3-2D gimbal.

  17. SJQZqbJukNi2XHIo
    SJQZqbJukNi2XHIo
    2kLwE4T1SSSQkMyE
    HVRNNZ6Y3jhTcHBs

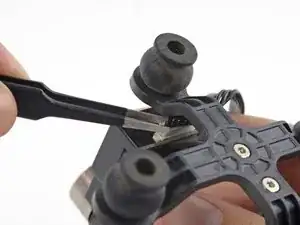

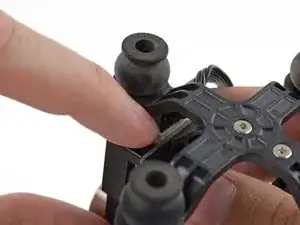

    • Pass the G8 molex connector through the side of the H3-2D gimbal.

    • Plug in and firmly secure the connector.

  18. scDCPuIGNnKFm6DJ
    scDCPuIGNnKFm6DJ
    UYX5GHasC2Son5mk
    V2LWNoMnWCnUYXUp

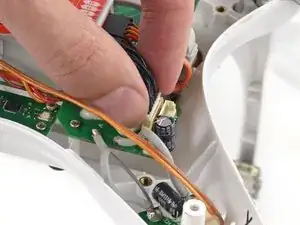

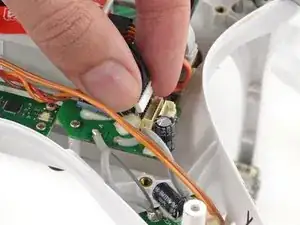

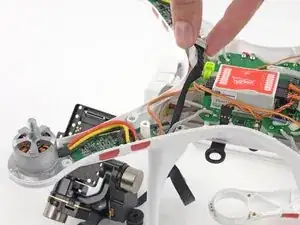

    • Pull the gimbal wire through the case bottom shell and plug in the connector to the G8 plug on the mainboard.

  19. XsSqmfRJWSA1plqn
    XsSqmfRJWSA1plqn
    EQOMAm4Ufhtprlpr

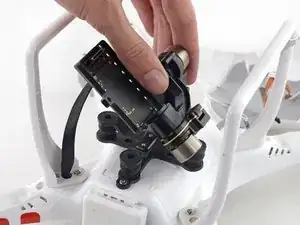

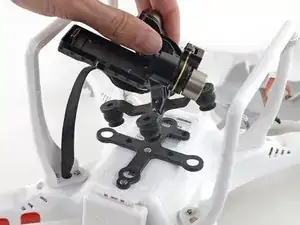

    • Place the gimbal on the mount with the front facing the same side as the battery cover.

  20. eErlMhwKRi26Ht2K
    eErlMhwKRi26Ht2K
    MTKOkrmnAoiE1LBy
    msKmLeKx4WSrwcQB

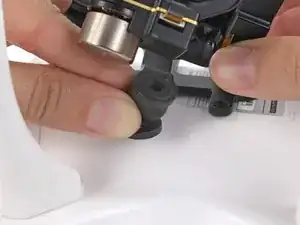

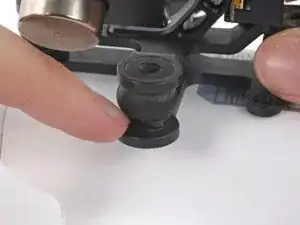

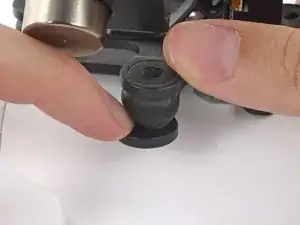

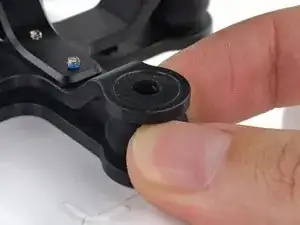

    • Mount the four rubber dampers on the gimbal to the mounting bracket.

    • Pinch two sides of the rubber dampers and press it into the mounting bracket holes.

  21. AscfiyyAMaTZAZRy
    AscfiyyAMaTZAZRy
    N2hyRwOLnLBWNh6E

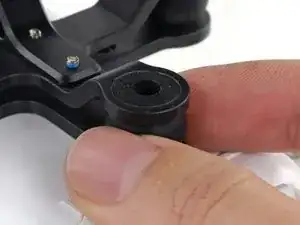

    • Confirm the dampers are installed correctly by twisting them at least 180 degrees.

    • If a damper unmounts, it was not installed correctly. Repeat the previous step for any unmounted dampers.

  22. ojQBFCgLLWjW2lLe
    ojQBFCgLLWjW2lLe
    jjuZTAADLpjbXvVp

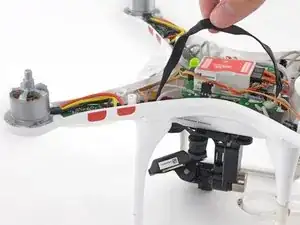

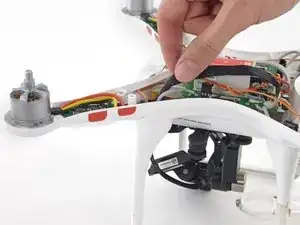

    • Pull the excess slack in the gimbal cable up into the body of the Phantom.

    • When reinstalling the case top shell, be careful not to pinch any wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
