Use this guide to open your Samsung Galaxy Buds+ for repairs. The photos for this guide were taken with the left earbud, but the procedure is the same for both earbuds.
Galaxy Buds+ are rated IPX2 for ingress-resistance, meaning they are splash resistant. After this repair, they may lose their water protection.
-
-

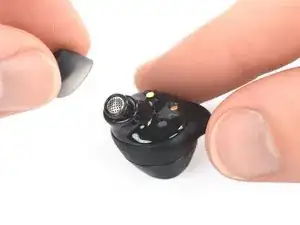

Use your fingers to remove the silicone eartip by pulling it upwards while slipping it off the earbud.
-
-
-

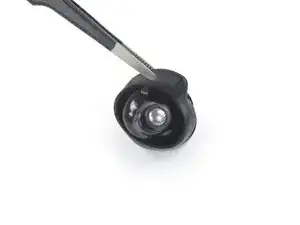

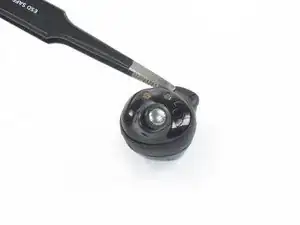

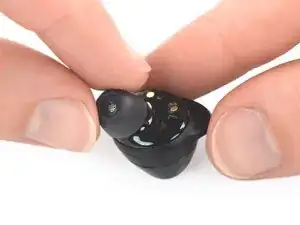

Use your fingers or a pair blunt nose tweezers to remove the earbud's rubber wingtip by pulling it upwards while slipping it off the earbud.
-
-
-

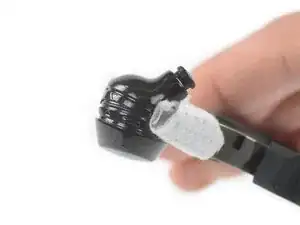

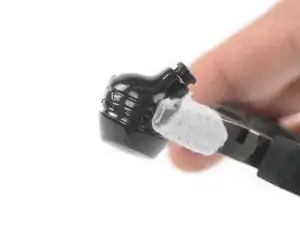

Use a pair of pliers to hold the earbud horizontally along the seam between the upper and lower halves of the case.
-
Apply steady, even pressure to either side of the earbud along the main housing seam to create a gap.
-
-
-

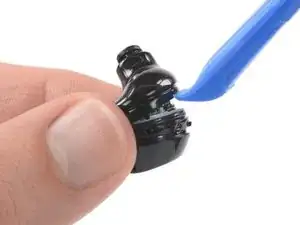

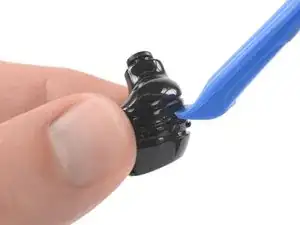

Insert an opening tool into the gap between the two cases of the earbud.
-

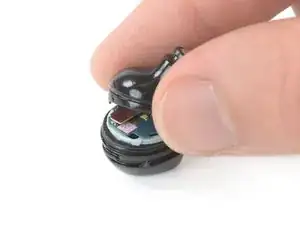

Use the opening tool to pry the two cases apart.
-
-
-

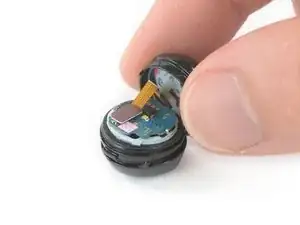

To remove the upper part of the earbud from the board, place it on the table to access the connector.
-
-
-

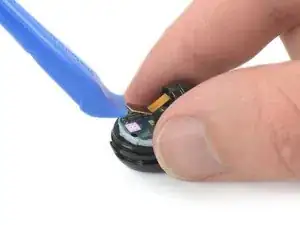

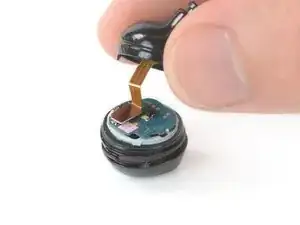

Use an opening tool to disconnect the upper earbud case from the board by prying the connector out of its socket.
-

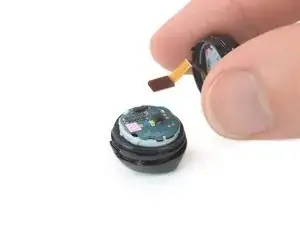

Remove the upper earbud case.
-
To reassemble your device, follow these instructions in reverse order. Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
