How to Perform Circuit Service on the Newport HT70

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

An important part in making sure that this device is ready to use for patients, as well as to maintain using it in the future, is to service the circuits. One way to do this is to perform the Circuit Check.

For more information on how to perform a circuit check, please refer to page 6-2 in the service manual.

  1. vUSBxUNqOwEPlAyB

    • Connect the breathing circuit to the main flow outlet, or as if it were being used for a patient.

    • Cover up the breathing circuit (do not use test lung) .

  2. 6nIMuuCGcHSp3eMY

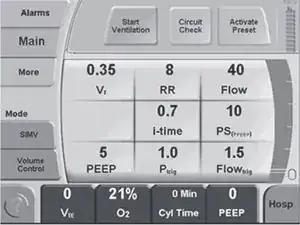

    • Touch the Circuit Check button at the top of the screen.

    • Press ‘Accept’.

    • Uncover the end of the patient circuit pictured in Step 1.

    • Press the ‘Accept’ button to continue with the circuit check.

    • If test passes, the message “Circuit Check PASSED press accept to confirm” will appear on the screen.

    • If the Circuit check does not pass, do not use the ventilator for patient use. Use an alternate Method of ventilation.

    • If the Circuit Check has failed, there may be an issue with the pump assembly, refer to the “Pump Assembly Replacement” guide to proceed with this diagnosis.

Abschluss

To reassemble your device, follow these instructions in reverse order.
