How to Reattach a 2005-2013 BMW 3 Series Door Panel Liner

Geschrieben von: Sam A McDaniel
  • Kommentare: 0
How to Reattach a 2005-2013 BMW 3 Series Door Panel Liner

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

35 Minuten - 2 Stunden

Einleitung

If the liner on the door panel of your 2005-2013 BMW 3 Series is drooping or is coming loose, follow these steps to remove your door panel and reattach the liner. By removing the trim and a few screws, the door panel will be free to pry loose. Once you know where the screws are, car door panels are easy enough to remove with no more than a screwdriver. BMWs require a Torx screwdriver. Aside from the location of the screws, just about any car door panel is the same. There are internal plastic clips around the bottom edge and metal ones at the top. All clips come loose by pulling/prying straight out. Any pry tool will work; just try to avoid one that could harm the surfaces.

  1. blZEGYAg4iyQwjRo
    blZEGYAg4iyQwjRo
    klSWXpQd14pXMtxi

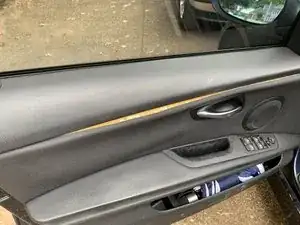

    • The leather door lining is loose.

  2. bweClZF3NygOFgIB
    bweClZF3NygOFgIB
    Q5vbdqPVCQIrMQHO
    JYCN1D6aDFiawHTX

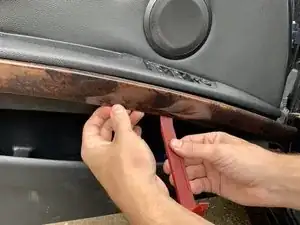

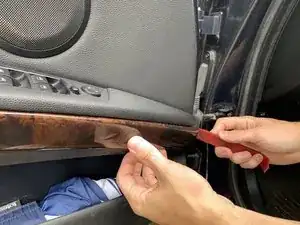

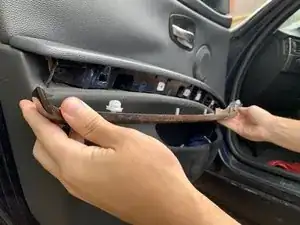

    • Using a plastic pry tool, carefully pry off the mock wood trim.

    • The mock wood trim tends to crack easily.

  3. yyIP3iiR4lqWI11g
    yyIP3iiR4lqWI11g
    jEe2XEjUr2jqDiLM
    bbN2xmhxNVIJpheT

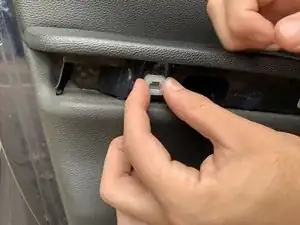

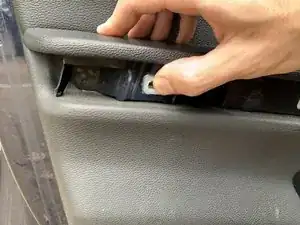

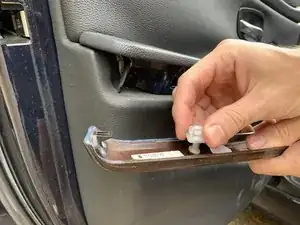

    • If any of the plastic clips come loose with the trim, remove them and press them back into the door panel.

  4. M6mIQtvWRU4AjHjY
    M6mIQtvWRU4AjHjY
    m3WqCUnQMWhLqssr

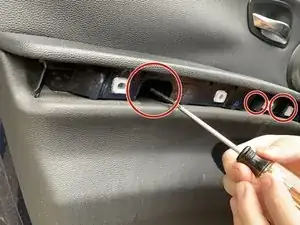

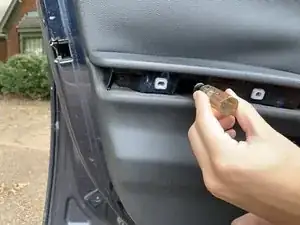

    • Using a T20 Torx, remove the three screws located behind the previously removed trim.

  5. GRLxSAyWcDjJ6bUy
    GRLxSAyWcDjJ6bUy
    bKPBmljIFEaPVQsY
    rY6aLSYV5ZjAdYyL

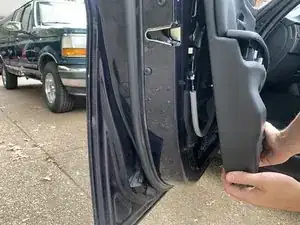

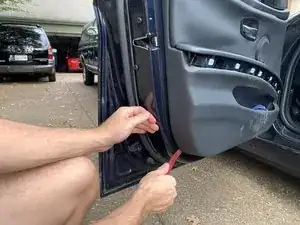

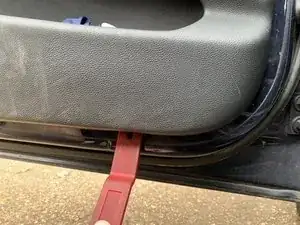

    • Using your plastic pry tool, pry the door panel loose, beginning along the bottom edge and moving up each side.

    • The door panel will still be attached at the top.

  6. AEIw2ho55MXHpfJL

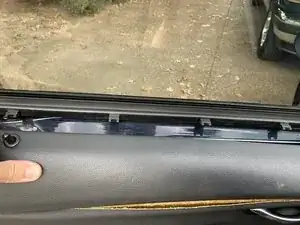

    • Pull the door panel straight out along the top edge.

    • There is a series of metal clips that will pop lose.

    • When re-installing the door panel, it is important to line these clips back up with their respective holes on the door panel.

  7. eRZuOxh1WBOm6RXo
    eRZuOxh1WBOm6RXo
    LfKCaL66YddxxSd2

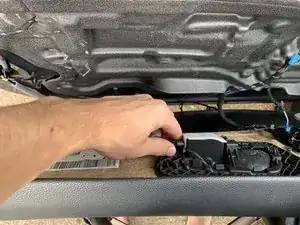

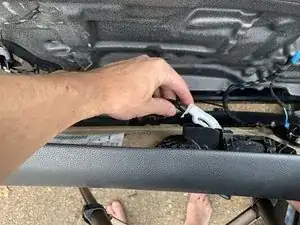

    • Unclip the internal door handle mechanism inside the door handle by rotating clockwise.

  8. KMbCT2IATwJh2Fiw

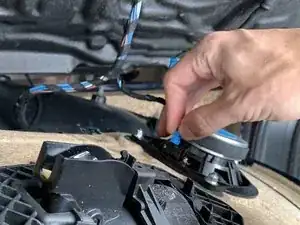

    • Unplug the speaker wire by pulling it straight out.

  9. LnqXkcctPEy1YOK3
    LnqXkcctPEy1YOK3
    XL1OUhNGAPC13bQi
    gdiGOTJZYEQevn52

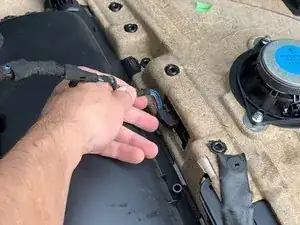

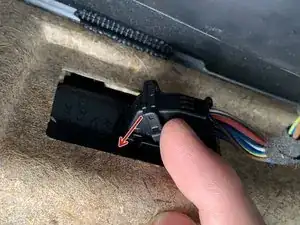

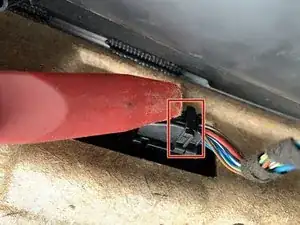

    • Unplug the control panel wire by rotating the lever that is built into the plug.

    • Rotate the lever from the wire side down towards the door panel.

  10. EZmaFP5sQLrKVStm
    EZmaFP5sQLrKVStm
    UXKMtPeWGbqPZFKx
    nYXLIdCGpTpLTwjV

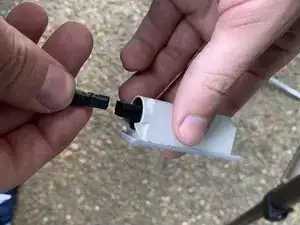

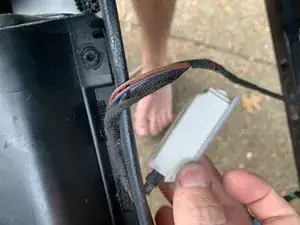

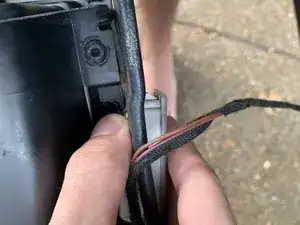

    • Pop the light out of the bottom of the door panel and then unplug it.

  11. tvg4XHTrWqNPPZjp
    tvg4XHTrWqNPPZjp
    OsLsTVEoApCeAMax

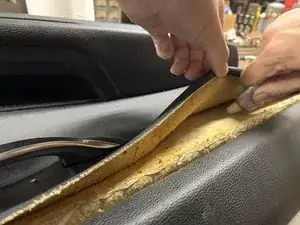

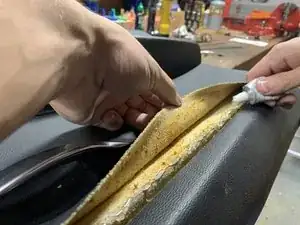

    • Now that the door panel is free from the car, move it to a flat workspace.

    • Apply a line of glue along the top edge and under the middle of the leather liner.

    • Have your clamps and wood spacers ready before applying glue.

  12. nJr2MMhodfcpWhUi
    nJr2MMhodfcpWhUi
    ZDQEOLGDWIVSnBcL

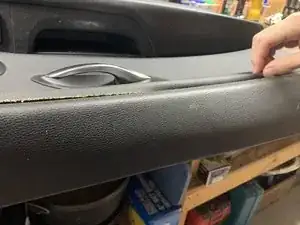

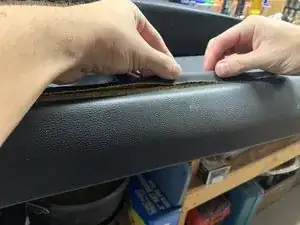

    • Push the liner into place in between the door panel sections.

  13. danoSEAbT65AOPWM
    danoSEAbT65AOPWM
    G3Wd6MJ4Hg2KN2mM
    ITVxfRSXhhbXjDuH

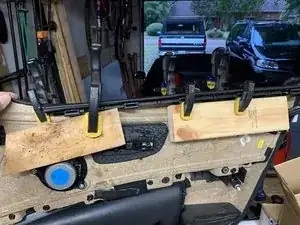

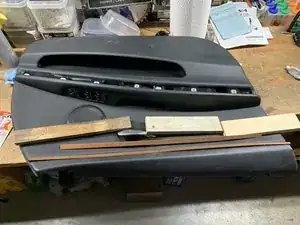

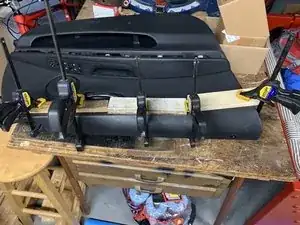

    • Using several clamps and pieces of wood (to distribute pressure), clamp the liner down to the door panel.

    • You may need to add larger pieces of wood on the inside of the door panel as spacers.

Abschluss

Allow the glue to dry following the instructions on the tube. Reassemble the door following these instructions in reverse order.
