How to Remove Stock Stereo Head Unit in a Toyota Tacoma

Geschrieben von: Sean
  • Kommentare: 0
How to Remove Stock Stereo Head Unit in a Toyota Tacoma

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

Follow this guide to remove the stock stereo head unit from the dash of Toyota Tacoma’s originating after 2016. This procedure includes the removal of the stereo from the dash of the vehicle and does not include information on installing an aftermarket unit.

  1. VPFJd3ClwCijQGG5
    VPFJd3ClwCijQGG5
    TEACJ3rJvoJrAYnO

    • Ensure that the vehicle is off and the battery is disconnected.

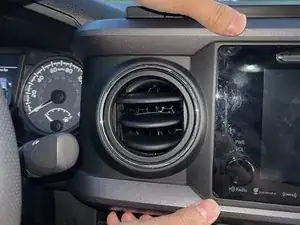

    • Remove the plastic trim pieces by pulling them straight back.

    • Pulling from behind the vents on each side one at a time is the smoothest way to pull the panel off.

  2. jW1XLybdCrgDKXAD
    jW1XLybdCrgDKXAD
    D1hZakATqCB1IMnu

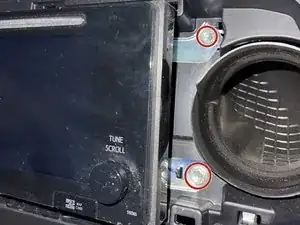

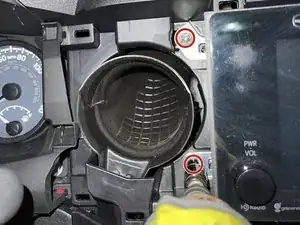

    • Unscrew the four bolts on the sides of the stereo using a 10 mm socket with a ratchet or an impact driver.

  3. WvOWVnnUq2BpYHBN

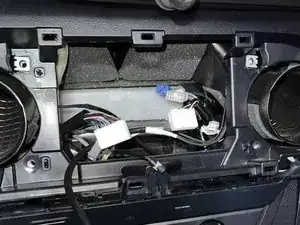

    • Carefully remove the stereo out of the dash to expose the wires in the back of the unit.

  4. jUjPETQNmPTdqYCa
    jUjPETQNmPTdqYCa
    M6CmtCYbsdSBXKN5
    EqXelNxDQBVWRLSI

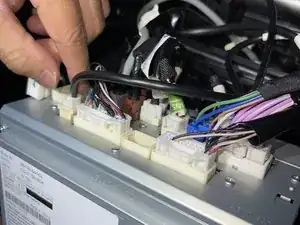

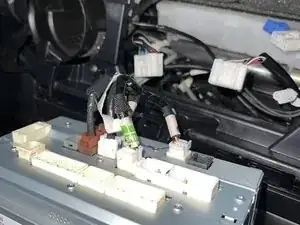

    • Remove all 9 wires from the back of the stereo by pushing down the safety clips and set the unit aside.

    • Have someone hold the stereo while disconnecting the wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
