Einleitung

This guide will show you how to extract a screw that has broken while being embedded inside its hole, along with showing you how to replace it with a new one. This process works for screws inside walls, pieces of lumber, or metal. The guide requires a couple of power tools, so you should always use the necessary precautions when using them to avoid any injuries.

  1. 1nLkAyoBdFg6jdoK
    • Use an angle grinder to grind the tip of the broken screw until its surface is smooth and even.

  2. SZeEjl5MHrAKhUeD
    SZeEjl5MHrAKhUeD
    mDuYSbGhN2p3ScAJ

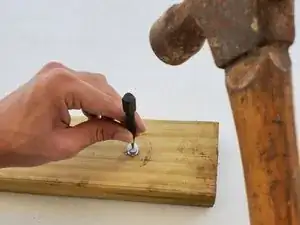

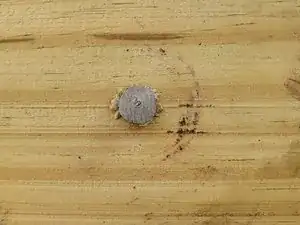

    • Place a center punch in the middle of the tip of the screw.

    • Use a hammer to hit the center punch to make a dent in the center of the embedded screw.

  3. WLs1DycCjSJDkNCU
    WLs1DycCjSJDkNCU
    reEpVjPRFnBfEBSa
    TSLIcZaNerQZtGhD

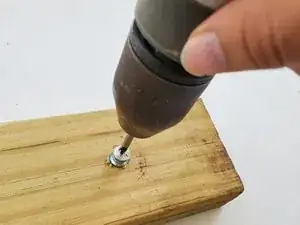

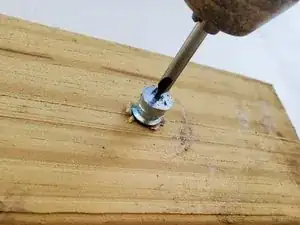

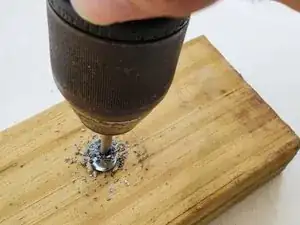

    • Place a center drill bit in the dent made in the previous step and start drilling until it expands enough to fit the standard drill bit inside it.

    • Always keep the drill bit at a 90 degree angle to the surface of the screw since tilting it can bend and break its tip.

  4. e64OfPTjXFDsQyJK
    e64OfPTjXFDsQyJK
    QLjjHBc2VGItBUhT
    FZKtI1FLpQLFaBeX

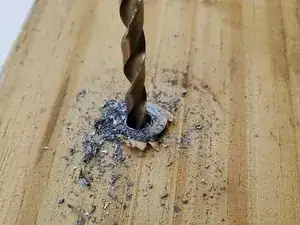

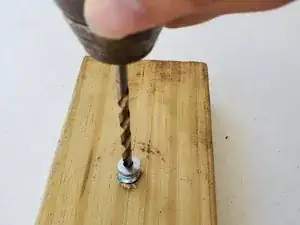

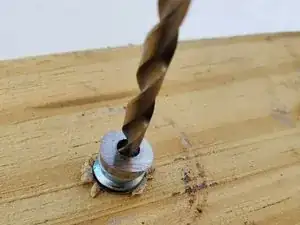

    • Make a hole in the tip of the screw by drilling with a standard drill bit.

    • Keep drilling until the hole reaches near the end of the screw.

  5. DanhJR2BsoLfwojT
    DanhJR2BsoLfwojT
    hy2XFZe2GJUcdUst

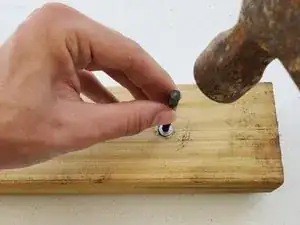

    • Insert a screw extractor in the hole and then hammer it inside, making sure it is tight.

  6. fRfgLgTBQjCObupx
    fRfgLgTBQjCObupx
    jhsHQkAXjYBEeoIy
    cSQHYIuGT22eMZAY

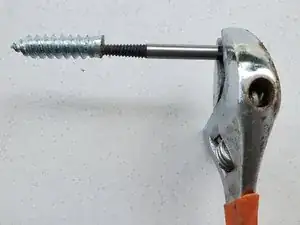

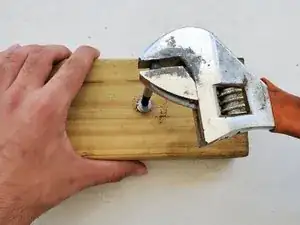

    • Using a wrench, unscrew the extractor.

    • The screw will come along with it, freeing the hole.

  7. BbgHXUojbEMKwNnP
    BbgHXUojbEMKwNnP
    cAr2cOBUKahPnEHL

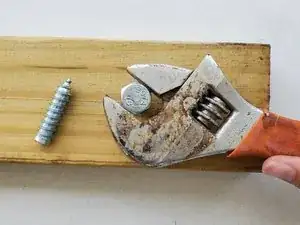

    • Screw the new screw inside the freed hole.
