How to Repair Apple Wireless Keyboard A1314 - Doesn't Turn On

Geschrieben von: ZFix
  • Kommentare: 4
How to Repair Apple Wireless Keyboard A1314 - Doesn't Turn On

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. YqEZh6EmtJYxmRM2

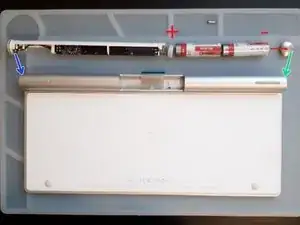

    • As you can see from the photo, the negative pole of the battery is connected to the main board through the aluminum body of the keyboard.

    • There are two contact areas:

    • Between the battery cover and the KB aluminum body

    • Between the power button assemble and the KB aluminum body

    • If the device has a power problem, we need to check and clean these two places

  2. NGPohhUVwKim3LCq
    NGPohhUVwKim3LCq
    xYaTSgYeR4kgwQeW
    vZSgWAnCatrAGBAY

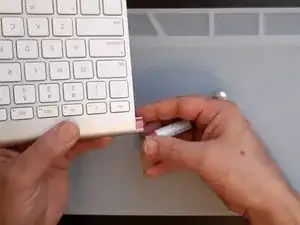

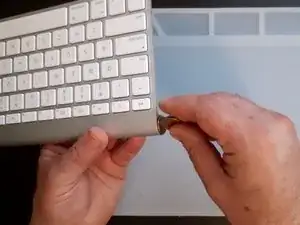

    • Use a Coin to remove the metal battery screw cover

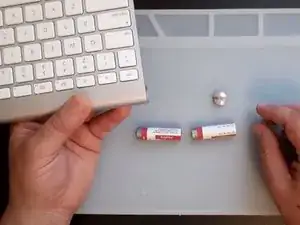

    • Change the batteries (AA) and test the keyboard

    • If the keyboard does not work, go to the next step

  3. wc1CwSR2LxlDPW5B
    wc1CwSR2LxlDPW5B
    nk1oEN5ncXGPCbkF
    T5ykbWpfGxEABCix

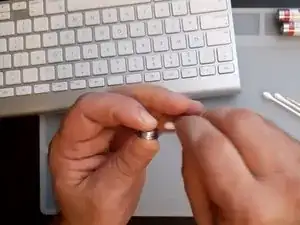

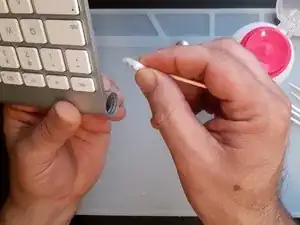

    • Use cotton buds, Toothpicks and Isopropyl Alcohol to clean the contact area and the battery cap.

    • Test the device and f the keyboard does not work, go to the next step

  4. QgbFQsVerJch4AIy
    QgbFQsVerJch4AIy
    jpNHbhmLotnJ4PPE
    CkdGUGHKFKeogFqS

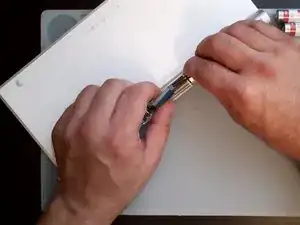

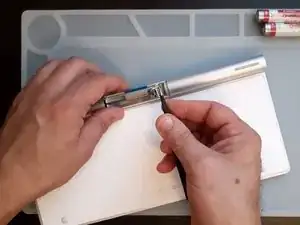

    • Remove the plastic cap from the middle on the tube and disconnect the KB flex cable

    • There are a screw secured the BT antenna, remove it

    • Slide the board out.

    • Be careful for the KB Flex Cable

    No explanation was described on how the plastic cap is removed.

    nirv -

    Hope this helps someone in the future. I found that if you place your thumbs against the side of the plastic on the "inside" of the keyboard and push towards the "outside" that it will pop off. There are some delicate plastic latches that may break off, though.

    Chris Decker -

  5. RTmVnHN4WC1VnqgV
    RTmVnHN4WC1VnqgV
    R3cWSVW2VJoDtTxH
    gdFrBZh1aZyMN4SB

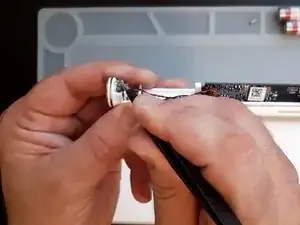

    • Use tweezers or a sharp metal tool and slightly bend the contact plate outwards

    • Clean the tube and the contact plate

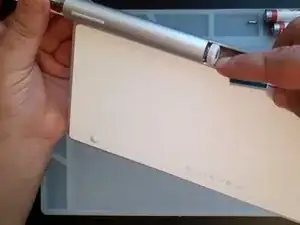

    • Install back the logic board plate and be careful for the flex

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

ZFix

Mitglied seit: 09/12/13

188213 Reputation

2 Kommentare

Add a little dielectric grease to the battery end cap. Had considerable corrosion despite batteries not leaking. Strange design.

George Walsh -

Wow! This fixed actually worked! I was about to thrown this A1314 keyboard out (2009 model)! You can remove the plastic "cap" with a precision flathead screwdriver. Also, be careful when disassembling the ribbon cable - there is a plastic retaining clip holding it in place. Use the precision screwdriver to carefully release the tabs on either side and then pop it out. The ribbon cable will then easily side out. By the way...I'm typing this comment on my newly fixed wireless keyboard! Thanks again!

Vic -
