How to Repair Dead Keys on Yamaha NP-31 Piaggero

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

Process of repairing keys on an electric piano that do not respond when one presses them. The piano keys will be restored to their original condition.

  1. rayYKtKcAtOoWlpj

    • Disconnect the piano.

  2. q1F6FAB3KUpNLZZJ

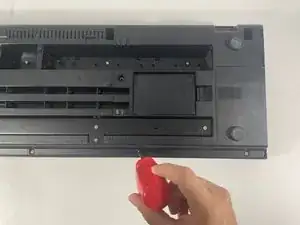

    • Turn the piano over so that the backside is facing you.

    • Use a Phillips #0 screwdriver to remove the screws securing the back cover to the device.

  3. R34rusowKOwXUaJb
    R34rusowKOwXUaJb
    GmWvqKmEUPTcvORI

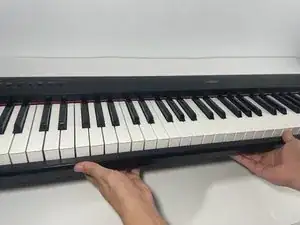

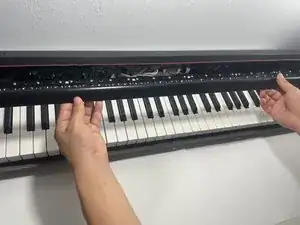

    • Turn the piano and remove the cover carefully.

  4. rFwcahGgLxDCnVwN
    rFwcahGgLxDCnVwN
    mYYsx3Z4hL211tEN
    4jx1ZlEPVYcOeqLv

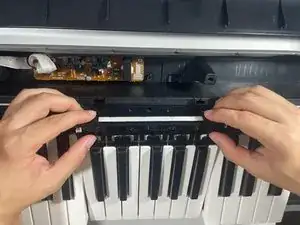

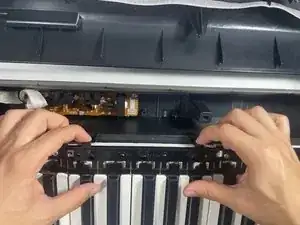

    • Unscrew the group of keys where the dead key is located.

    • Hold the clips and take out the keys.

  5. K1tr5eE2UjAaa6U2

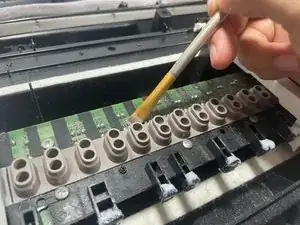

    • Wipe off the dust with the brush.

  6. tIQ1WUWOYtVGaDFg
    tIQ1WUWOYtVGaDFg
    SgVGCwrTLRXEiyP1

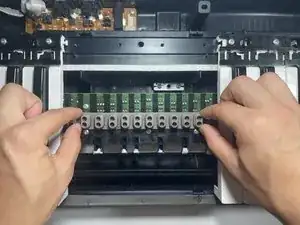

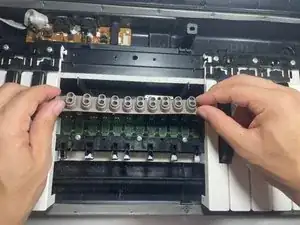

    • Remove the rubber contact piece.

  7. FWNSqwVSpmXM2Amj
    FWNSqwVSpmXM2Amj
    owA1AeCUOEZwxl6a

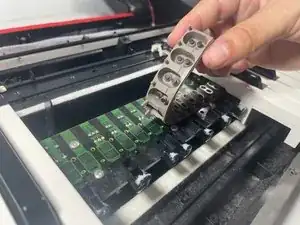

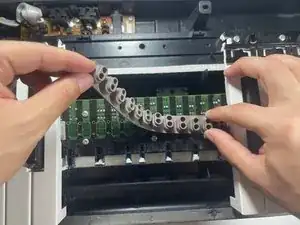

    • Put the new rubber contact piece in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
