How to Repair Double Vision on Barska 10x50 Wide-Angle Binoculars

Geschrieben von: James Silva
  • Kommentare: 0
How to Repair Double Vision on Barska 10x50 Wide-Angle Binoculars

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

Binoculars are somewhat delicate, and when used outdoors in dynamic settings, they can sometimes sustain damage, which can knock the two sides out of alignment, culminating in double vision. Small changes in the positioning of the prisms can result in significant differences in the vision of the binoculars, and binocular manufacturers often hide the adjustment screws to discourage owners from attempting to repair them on their own. This guide will demonstrate how to find the adjustment screws on a pair of Barska 10x50 WA binoculars and adjust them to align the double vision.

  1. W5QETuJsNk3mg2fB

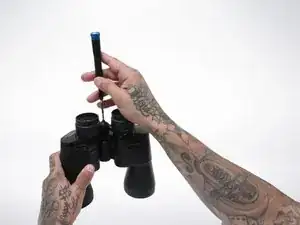

    • Remove the main J0 head screw in the center of the binoculars, using the driver with the 4 mm bit and J0 attachment.

  2. pRkTOuEYDmnwsx3R
    pRkTOuEYDmnwsx3R
    wltSE6lREFbuvcnU

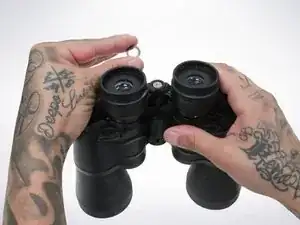

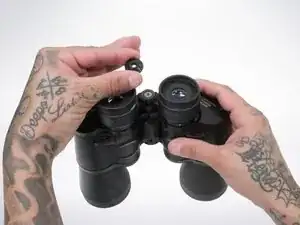

    • Remove the top piece and the washers held under the middle screw.

  3. FMXCPhamDVJ4OUwu
    FMXCPhamDVJ4OUwu
    XnCh55mskfDkHZqQ

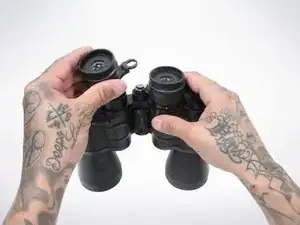

    • Pull the eyepieces off the binoculars.

  4. yZxMcX4jSRPiCHGb
    yZxMcX4jSRPiCHGb
    x5BtK3oGauLThBZm

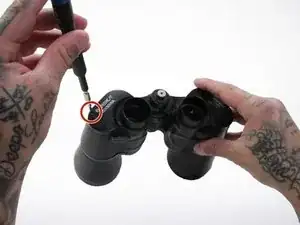

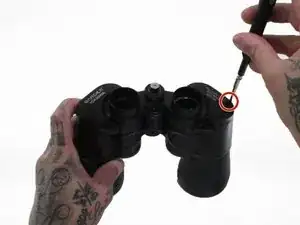

    • Remove the two side J0 head screws.

  5. VReceakWXnFtAORv
    VReceakWXnFtAORv
    3NcWAM1CJ3TSS1ck

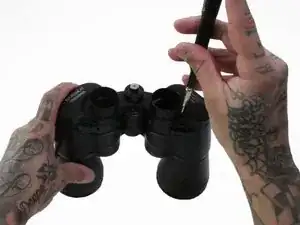

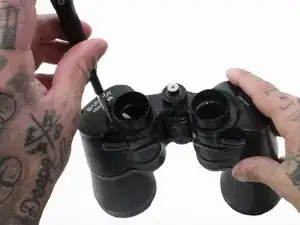

    • Remove the four J0 head eyepiece screws.

  6. cu3N2KMFN2JttwR2

    • Remove the two eyepiece plates.

  7. HfECjkBFCEyvjwLw
    HfECjkBFCEyvjwLw
    2hLb4EOSJZJHDnTO

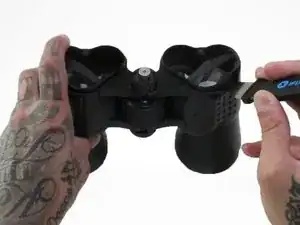

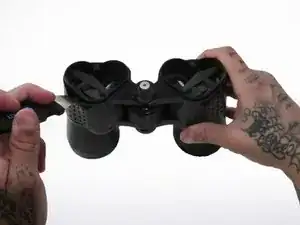

    • Pry apart the rear rubber covering on each side to expose the two back prism adjustment screws.

  8. QkZq4W5G2cgC5xds
    QkZq4W5G2cgC5xds
    1wdNSDfAdHP1lL4Y

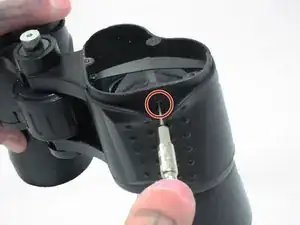

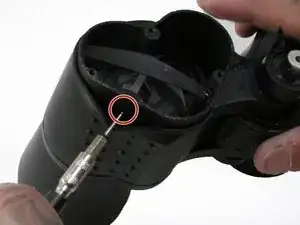

    • Adjust the two 1.5 mm flat head prism screws by slightly turning the driver.

    • Note: Look through the binoculars after each turn, and if the vision is aligned, you can stop at this step. If adjusting these screws does not align the vision, proceed to Step 9.

    • DO NOT tighten the prism screws too much, or you will crack the prism and permanently destroy it. Repairing or replacing the prism is beyond the scope of this guide.

  9. WyRre1R6AYJRfBDw

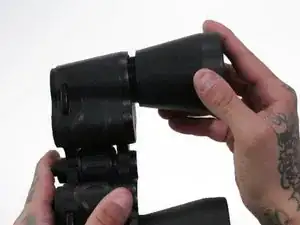

    • Unscrew the two front objective lenses by hand.

  10. yjVESiqygDnkpyrW
    yjVESiqygDnkpyrW
    XajbTPEbONWrEmZK

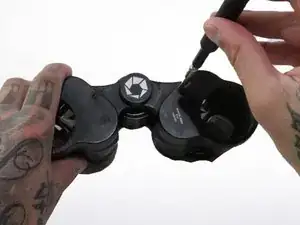

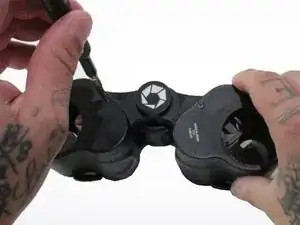

    • Unscrew the two J0 head front screws.

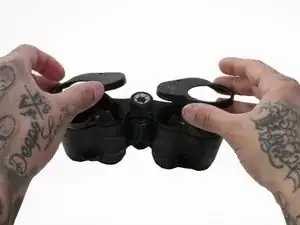

  11. eP4wWV2NV3CmqqK4

    • Remove the two front plates.

  12. AnSrCWCgw2WJrYNj
    AnSrCWCgw2WJrYNj
    tbBECQtL1kTXncDA

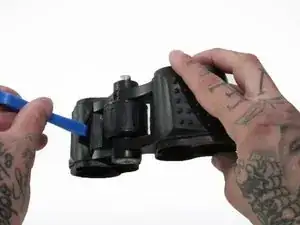

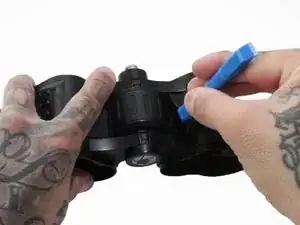

    • Peel back the front rubber coverings on both sides.

  13. DR4EodHCY5NG1A4J
    DR4EodHCY5NG1A4J
    WQogRRjZYeeWHm2J

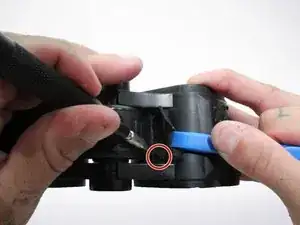

    • Adjust the two front 1.5 mm flat head prism screws with small turns.

    • Look through the binoculars after each adjustment to see if it is aligning the vision, and repeat the adjustments until it is repaired.

    • You may need to return to Step 8 to fine-tune the other set of screws. All four prism adjustment screws must be in their correct positions to produce the correct view through the binoculars.

Abschluss

To reassemble your device, follow these instructions in reverse order.
