This guide will be helpful for repairing your faulty wires if the troubleshooting page recommends that you replace them. This is a necessary step when you have determined no other way to repair your current wires. Be wary of accidentally damaging other parts of the device when replacing wires.
Werkzeuge
-
-

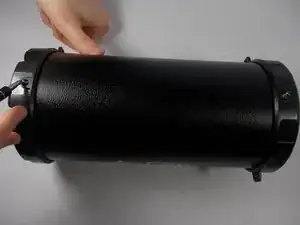

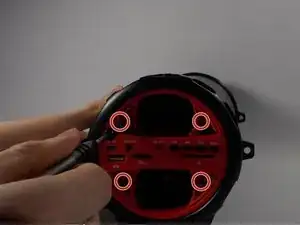

Begin by removing the two main black face plates on either end of the speaker tube using a Phillips head PH1 screwdriver fitting to remove a total of four screws.
-
2 on top on of either end of the speaker, 2 on bottom of either end of the speaker.
-
-
-

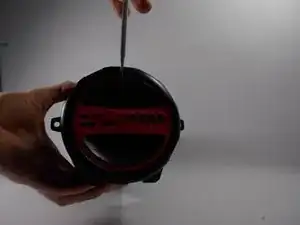

To do this, use a metal spudger as a wedge and insert it in the center and outer edge of the two mesh pieces to remove them exposing screws.
-
-
-

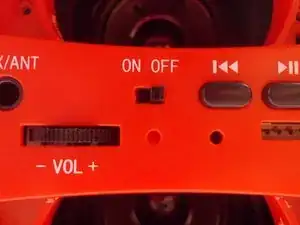

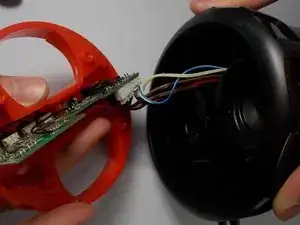

Pull out the red interface plate to expose the wires that were previously hidden between the black faceplate and red interface plate.
-
Again look for signs of wire damage.
-
-
-

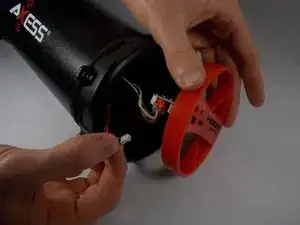

On the bottom of the motherboard, locate the black and red wire pair connected to the plastic red socket and remove the white insert from this socket.
-
-
-

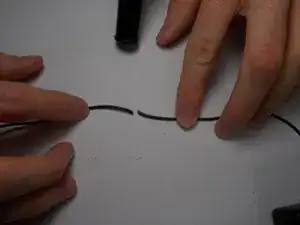

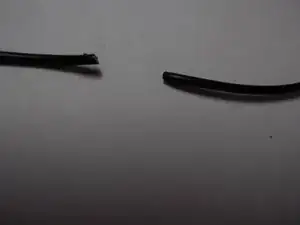

To repair a wire connection, use wire strippers to cut away the wire portion until no visible damage remains.
-
-
-

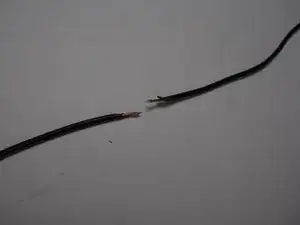

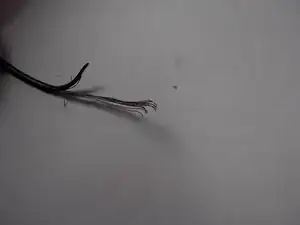

Again, use the wire strippers to strip back a small amount of the rubber coating on the wire. Therefore exposing a small amount of bare wire.
-
-
-

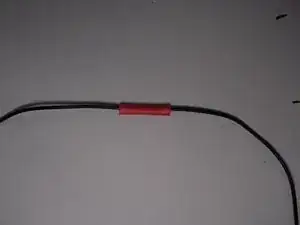

Assuming you have enough wire length to spare, insert the bare wire into a wire butt connector so it just passes the nub on one end.
-
Then use a wire crimping tool to crimp the the butt connector, therefore making a solid contact connection.
-
Repeat for the loose wire into the other end of the same wire butt connector.
-
To reassemble your device, follow these instructions in reverse order.
